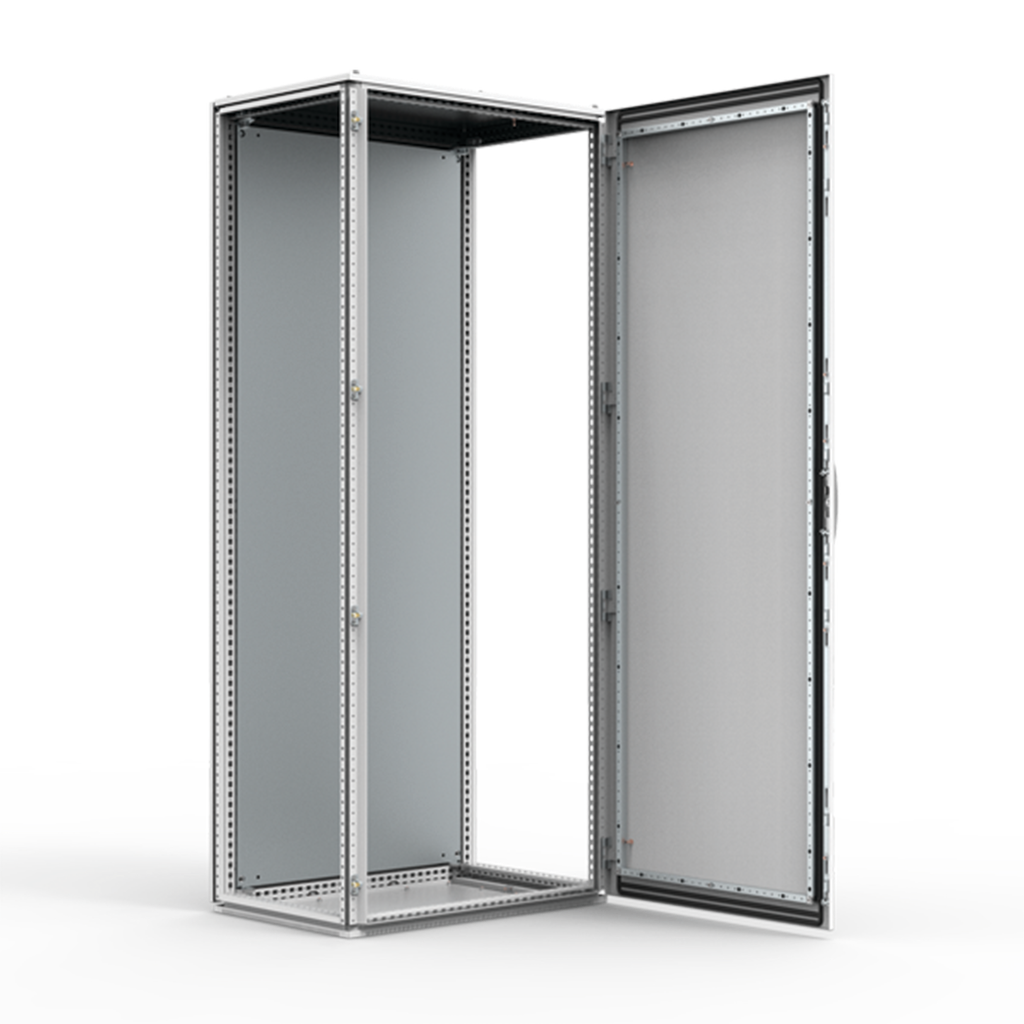

Product image for NVENT HOF MCS20086HP Floor-Stand M
Email

NVENT HOF MCS20086HP Floor-Stand M

Manufacturer: nVent Hoffman | Catalog # MCS20086HP | North Coast Part # 2407424
$4,027.37/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Modular, Single Door, MCS-HP maintains IP66/Type 4 rating and can be installed in severe environments. This Modular Single Door, MCS-HP, MCS20086HP item measures 78.74x31.50x23.62 inches with a material of Mild Steel.

Technical Information

Applications
Stationary Machinery and Equipment Outside Factory
Body Thickness
1.5 mm
Cable Entry
No
Color Coding
RAL 7035
Material
Steel
Size
78.74 x 31.5 x 23.62 inch
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510495879
Color
Light Gray
Construction
Body: 16 gauge Door: 14 gauge
Finish
Powder Coated
GTiN
00783510495879
Product UPC
78351049587
Weight
305.29 lb

Dimensions

Depth
23.62 Inch
Height
78.74 Inch
Length
31.87 Inch
Width
24.25 in
Features
  • Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660. Including integrated external hole pattern.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 66 | TYPE 4, 12 | IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
