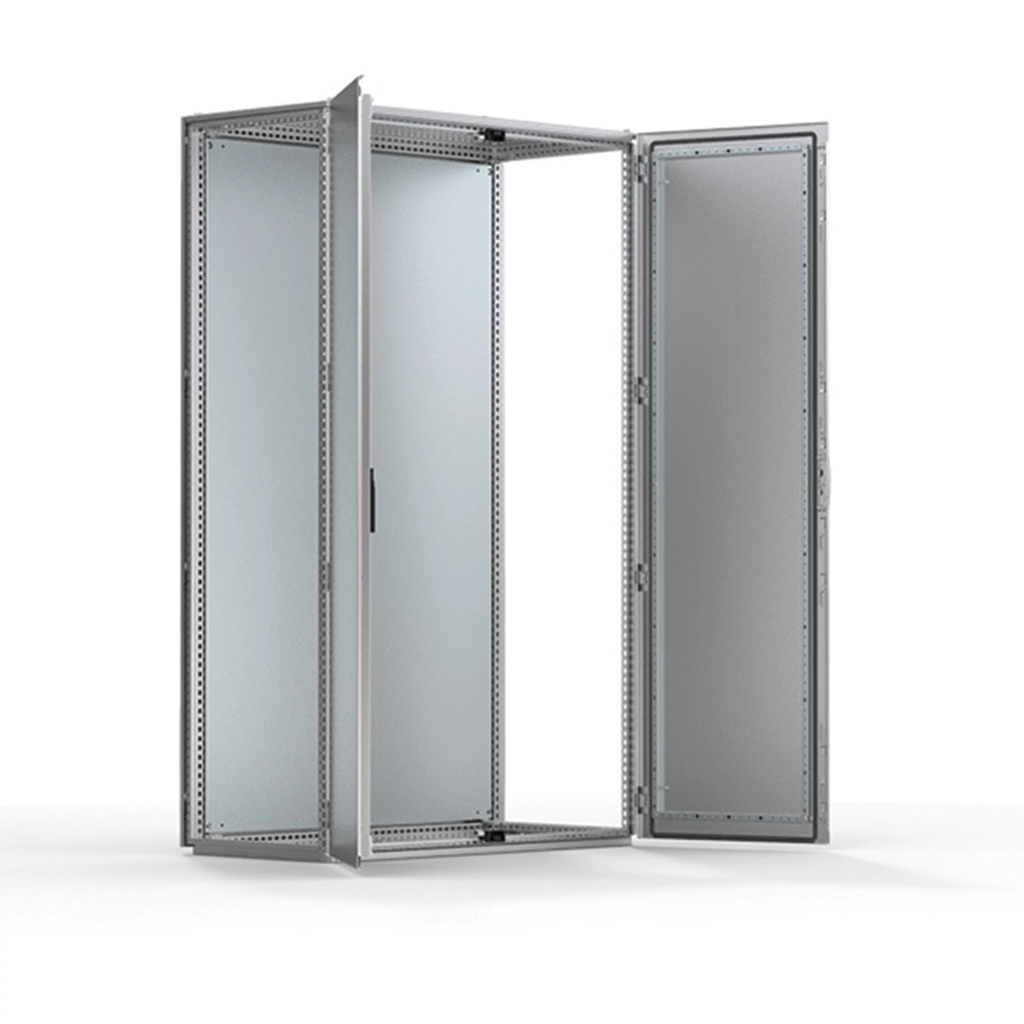

Product image for NVENT HOF MCDS20126 Floor standing
Email

NVENT HOF MCDS20126 Floor standing

Manufacturer: nVent Hoffman | Catalog # MCDS20126 | North Coast Part # 2407486
$14,079.71/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Double-door, combinable floor-standing enclosure range, MCDS, with IP 55/Type 12 rating. This Modular Double Door, MCDS, MCDS20126 item measures 2000x1200x600mm with a material of Stainless Steel, finish Brushed.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Body Thickness
1.5 mm
Cable Entry
No
Material
Stainless Steel
Size
78.74 x 47.24 x 23.62 inch
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510492779
Color
Unpainted
Construction
Body: 16 gauge Door: 14 gauge
Finish
Brushed
GTiN
00783510492779
Product UPC
78351049277
Weight
464.39 lb

Dimensions

Depth
23.62 Inch
Height
78.74 Inch
Length
47.62 Inch
Width
24.25 in
Features
  • Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
  • Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. Split rear panels in 1600 mm wide enclosures.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
  • Bottom plates: Two piece bottom plate in 1200 mm width, with injected polyurethane gasket to ensure maximum sealing.
  • Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is delivered, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: 400 pre-grained stainless steel.
  • Protection: Complies with IP 55 | TYPE 12 | IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
  • Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
