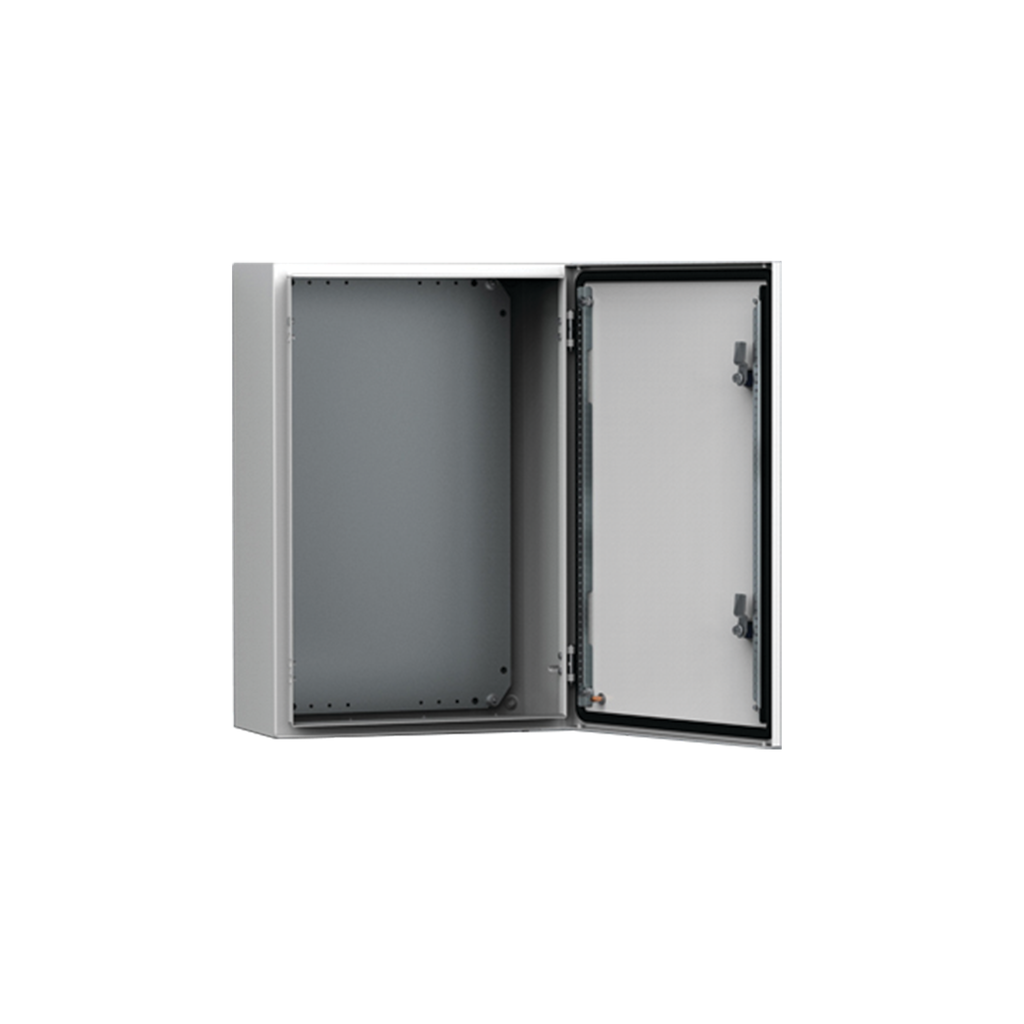

Product image for NVENT HOF MAS0504021R5 Wall-Mount I
Email

NVENT HOF MAS0504021R5 Wall-Mount I

Manufacturer: nVent Hoffman | Catalog # MAS0504021R5 | North Coast Part # 2407688
$480.51/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
With metric sizing, appealing design and a suit of accessories the MAS is a perfect global solution. This Single Door Enclosure, MAS, MAS0504021R5 item measures 19.69x15.75x8.27 inches with a material of Mild Steel colored Lt Gray.

Technical Information

Applications
Factory Automation and Process Control; Controls and Drives
Body Thickness
1.5 mm
Cable Entry
No
Color Coding
RAL 7035
Material
Steel
Number of Outlets
1
Size
19.69 x 15.75 x 8.27 inch
Style
With Mounting Plate
Type
Mild Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510487928
Color
Light Gray
Construction
Body: 18 gauge Door: 16 gauge
Finish
Powder Coated
GTiN
00783510487928
Product UPC
78351048792
Weight
26.32 lb

Dimensions

Depth
8.27 Inch
Height
19.69 Inch
Length
20.06 Inch
Width
15.75 in
Features
  • Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter 2 mm depressions, to allow air circulation around the rear part of the enclosure.
  • Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
  • Protection: Complies with IP 66, TYPE 4, 12, IK 10. For outdoor installation, the use of a rain Hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
  • Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
  • Material: Body: 1.2 mm mild steel for enclosures with a depth of 155 mm / 1.4 mm for enclosures with a depth of 210 or 260 mm / 1.5 mm for enclosures with a depth of 300 or 400 mm, or if a height or width is 1000 mm or greater. Gland plate: 1.4 mm mild steel. Door: 1.2 mm mild steel / 1.5 mm for enclosures with a height or width of 500 mm or greater / 2 mm for enclosures with a height or width of 800 mm or greater. Mounting plate: 2 mm galvanized steel.
  • Lock: nVent HOFFMAN customized double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking for 1000 mm high enclosures and above. Other inserts are available as an accessory.
  • Finish: RAL 7035 structured powder coating.
  • Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow left or right hand opening. Inner M6 welded studs to mount door profiles MMDP, see delivery. Sealing is ensured by an injected one piece polyurethane gasket.
  • Delivery: Enclosure with door and mounting plate (not included for item numbers ending with PER5). For height 600 mm and above, two MMDP door mounting profiles. Gland plate(s) with gasket(s), plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above. Earthing facilities.
