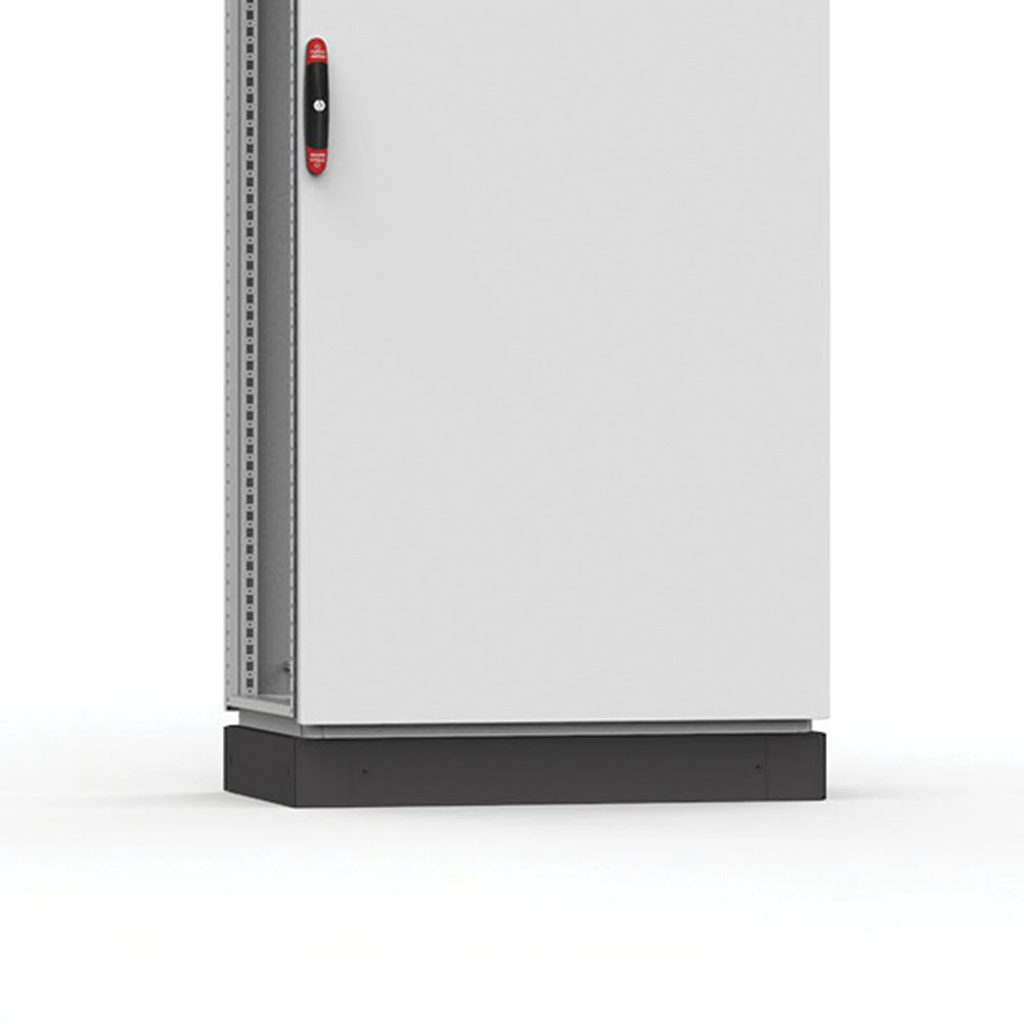

Product image for NVENT HOF PF2100 Plinth Frnt-Rear
Email

NVENT HOF PF2100 Plinth Frnt-Rear

Manufacturer: nVent Hoffman | Catalog # PF2100 | North Coast Part # 2407713
$634.90/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Front/Rear Plinths, PF allow cabling without any restrictions and creates extra space under the enclosure. This Front/Rear Plinths, PF, PF2100 item measures 200x998x63mm with a material of Zinc Plated, Mild Steel, color Umbra Gray.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Color Coding
RAL 7022
Material
Steel
Size
7.87 x 39.29 x 2.46 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
1

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510525743
Color
RAL 7022 Umbra Gray
Construction
TH Angle Threaded 5/16 TH
Finish
Powder Coated
GTiN
00783510525743
Product UPC
78351052574
Weight
20.21 lb

Dimensions

Depth
2.46 Inch
Height
7.87 Inch
Length
43-3/4 Inch
Thickness
1.5 mm
Width
39.29 in
Features
  • Description: Front and rear plinth sections. For cabling without any restrictions and in accordance with the VDE 0113 standard. The plinth consists of four corner pieces with removable front covers. The side panels PS are to be ordered separately. Produced in 100 mm and 200 mm heights. 200 mm high plinths are delivered with a rear cover for cabling that consists of two removable panels 100 mm high. The front cover is a one piece panel of 200 mm high. All panels have double returns on each side for added strength.
  • Material: Corner pieces in 2 mm and panels in 1.5 mm mild steel.
  • Finish: RAL 7022 structured powder coating.
  • Pack quantity: 1 set of 4 corner pieces including covers. Front and rear panel (2 rear panels for 200 mm high plinths) with mounting accessories. Mounting accessories for side panels PS or transversal profiles PCP.
  • Mounting requirements: Add the side panels PS for a complete plinth. When combining enclosures it is recommended to add transversal panels PCP for cable duct support and extra rigidity.
