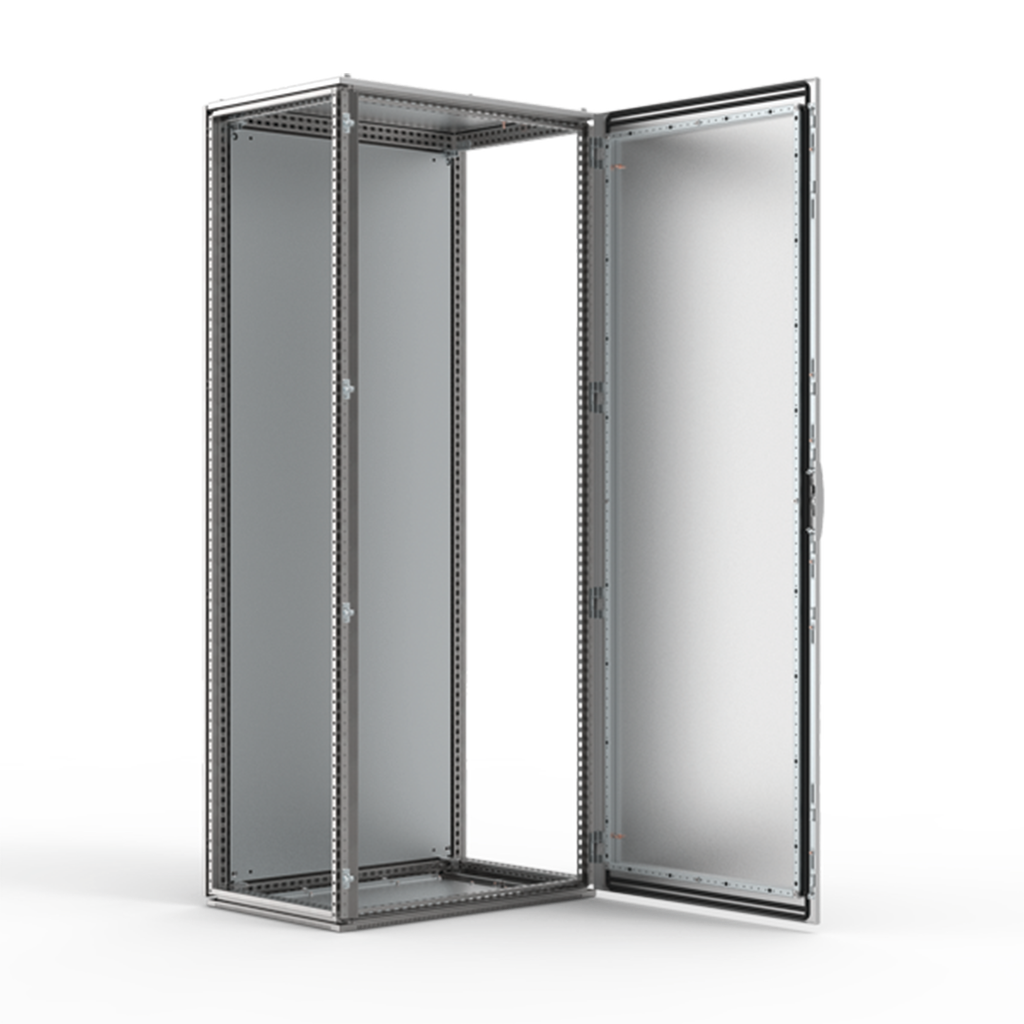

Product image for NVENT HOF MCSS18085 Floor standing
Email

NVENT HOF MCSS18085 Floor standing

Manufacturer: nVent Hoffman | Catalog # MCSS18085 | North Coast Part # 2407715
$9,313.81/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Single-door, combinable floor-standing enclosure range, MCSS, with IP 55/Type 12 rating. This Modular Single Door, MCSS, MCSS18085 item measures 1800x800x500mm with a material of Stainless, finish Brushed.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Body Thickness
1.5 mm
Cable Entry
No
Material
Stainless Steel
Size
70.87 x 31.5 x 19.69 inch
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510499075
Color
Unpainted
Construction
Body: 16 gauge Door: 14 gauge
Finish
Brushed
GTiN
00783510499075
Product UPC
78351049907
Weight
280.9 lb

Dimensions

Depth
19.69 Inch
Height
70.87 Inch
Length
31.87 Inch
Width
20.31 in
Features
  • Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
  • Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: 400 pre-grained stainless steel.
  • Protection: Corresponds with IP 55 | TYPE 12 | IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
