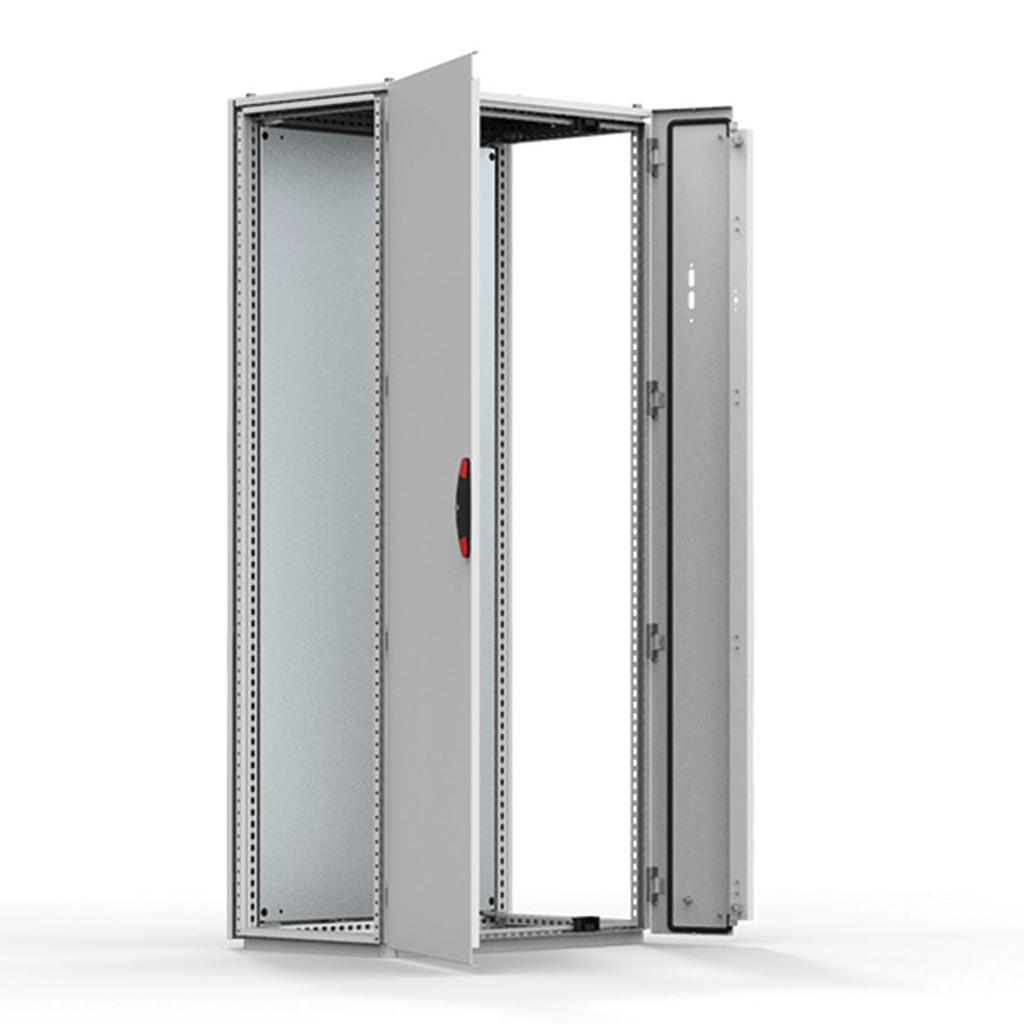

Product image for NVENT HOF MCF20086R5 Floor-Stand M
Email

NVENT HOF MCF20086R5 Floor-Stand M

Manufacturer: nVent Hoffman | Catalog # MCF20086R5 | North Coast Part # 2407724
$2,925.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Flange Mount Disconnect, MCF floor-stand enclosures are equipped with cutouts for disconnect handles. This Flange Mount Disconnect, MCF, MCF20086R5 item measures 2000x800x600mm with a material of Zinc Plated, Mild Steel.

Technical Information

Applications
Stationary Machinery and Equipment Outside Factory
Body Thickness
1.5 mm
Cable Entry
No
Color Coding
RAL 7035
Material
Steel
Size
78.74 x 31.5 x 23.62 inch
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510493080
Color
Light Gray
Construction
Body: 16 gauge Door: 14 gauge
Finish
Powder Coated
GTiN
00783510493080
Product UPC
78351049308
Weight
325.14 lb

Dimensions

Depth
23.62 Inch
Height
78.74 Inch
Length
31.87 Inch
Width
24.25 in
Features
  • Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Door can not be reversed. Flange door: Surface mounted with hinges, locked from the inside, including universal cut-out.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Lock, left door: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories. Lock, right door: Top and bottom lock with double-bit for easy opening of the door. Double-bit 3 mm insert and 90° movement. Other inserts are available as an accessory.
  • Bottom plates: Consists of three pieces
  • Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55 | TYPE 12 | IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. Sides of the group of combined enclosures must be closed with side panels SPM. The interlocking kit, FMD, is included in standard delivery and compatible with the most popular electrical switched. To complete the interlocking system for bayed configurations, add FMA, FMB and FMS.
  • Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
