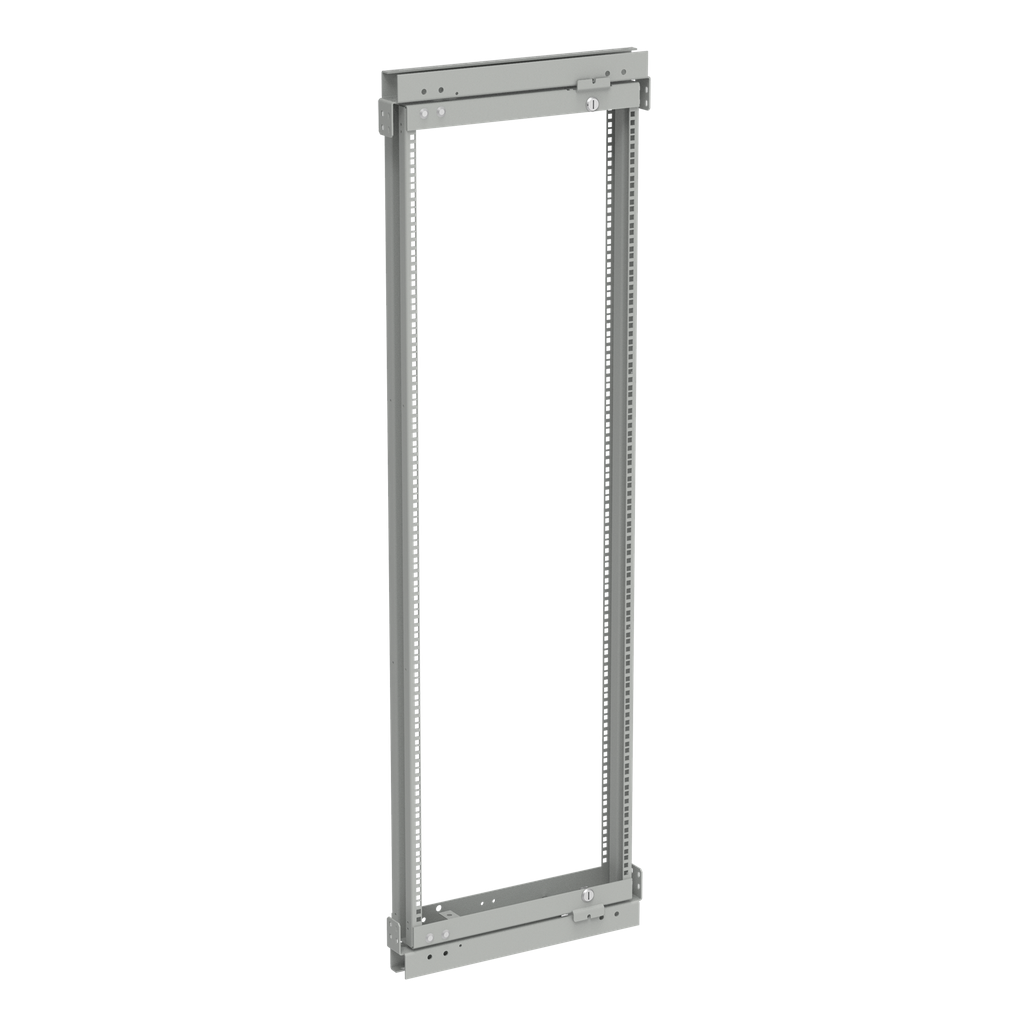

Product image for NVENT HOF PSF227 Swing Frame, fits
Email

NVENT HOF PSF227 Swing Frame, fits

Manufacturer: nVent Hoffman | Catalog # PSF227 | North Coast Part # 2408350
$2,014.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Heavy-Duty Swing-Out Rack Frame allows 19-in. rack equipment to pivot out of the enclosure frame for better accessibility. The frames mount on hinges capable of 120-degree rotation. Mounting supports and swing-out frame can be located deeper into the frame using grid system straps. Deeper mounting affects the degree of opening of swing-out frame. Mounting supports for an 800-mm wide enclosure frame permit you to either center the rack-mounting frame or position it right or left. The frame can also pivot from either the left or the right for maximum flexibility.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
fits 2200x700mm
Type
Rack and Grid/Rail System

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510997304
Color
Light Gray
Finish
Powder Coated
GTiN
00783510997304
Product UPC
78351099730
Weight
56 lb

Dimensions

Height
4-1/4 Inch
Length
81-1/4 Inch
Thickness
2.66 mm
Width
20.25 in
Features
  • Swing-out mounting supports mount to inside of frame at any vertical location; flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
  • Spring-loaded pivot post makes installation easy
  • Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
  • Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
  • Furnished with hinges, two quarter-turn latches and mounting hardware
  • Complies with ANSI/EIA RS-310-D rack-mounting standards
  • Maximum equipment load is 300 lb. (136 kg)
  • Mounting holes accommodate either English or metric cage nuts, which are ordered separately
  • Swing-Out Rack Frame assemblies are supplied with mounting supports
  • Hinges that provide 170-degree rotation are optional
  • RAL 7035 textured light-gray polyester powder paint
