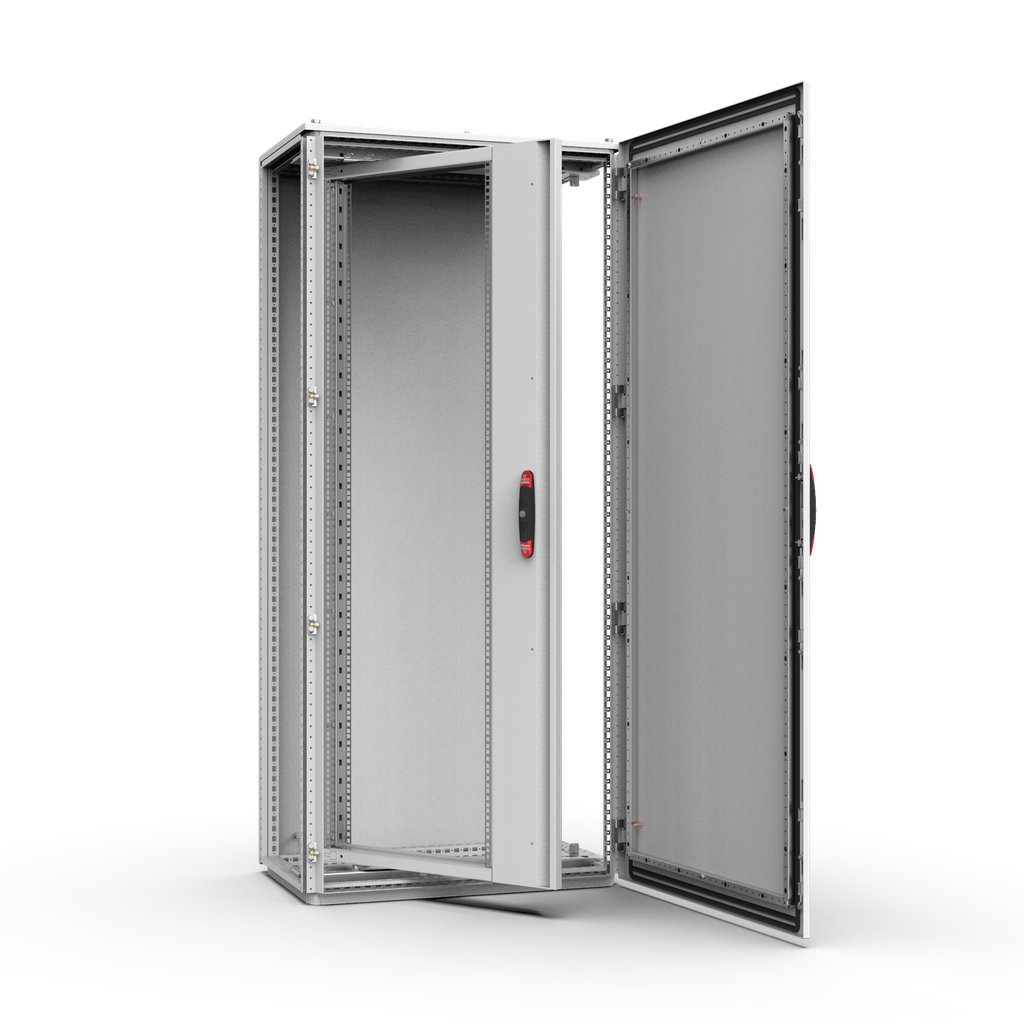

Product image for NVENT HOF ESFS368 Swing frame side
Email

NVENT HOF ESFS368 Swing frame side

Manufacturer: nVent Hoffman | Catalog # ESFS368 | North Coast Part # 2409024
$1,715.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Swing Frame Side Mounted, ESFS is for m, or easy rear access to components is desired. This Swing Frame Side Mounted, ESFS, ESFS368 item measures 1667x694x80mm with a material of Mild Steel, finish Zinc Plated.

Technical Information

Applications
Stationary Machinery and Equipment Outside Factory
Material
Steel
Size
65.63 x 27.32 x 3.15 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
1

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510480776
Color
Unpainted
Construction
11 gauge
Finish
Zinc
GTiN
00783510480776
Product UPC
78351048077
Weight
52.91 lb

Dimensions

Depth
3.15 Inch
Height
65.63 Inch
Length
71.24 Inch
Thickness
3 mm
Width
27.32 in
Features
  • Description: Full height swing frame for 19 components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19\" vertical profiles for direct earthing of the mounted components. Standard equipped with 130° hinges. Full access to the enclosure's aperture can be acquired by use of 180° hinges ESFH180. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm.
  • Maximum load: 1800 N, supplied with a self-positioning device.
  • Lock: Double-bit 3 mm espagnolette (other lock options possible).
  • Material: 19\" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 swing frame with hinges.
  • Mounting requirements: ESFS for 800 mm, 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.
