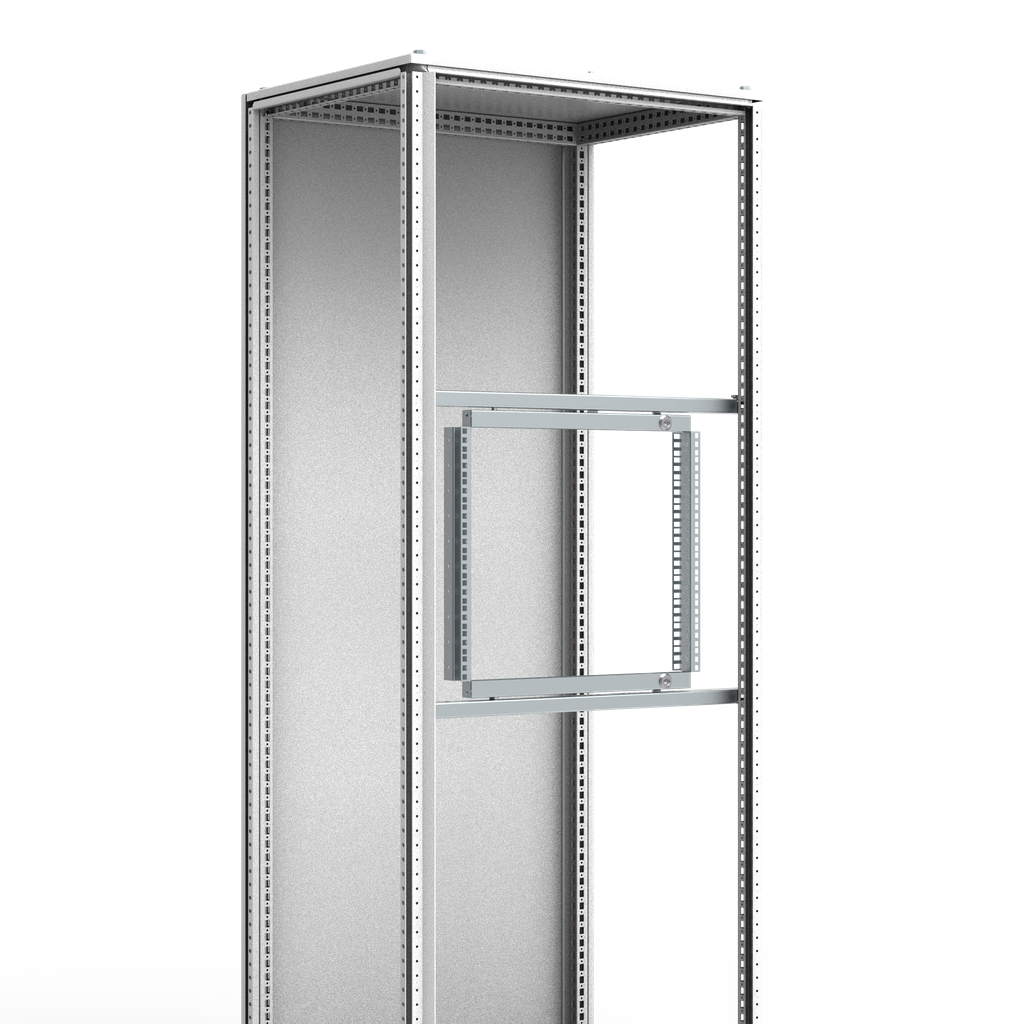

Product image for NVENT HOF SFCP036 Partial swing fra
Email

NVENT HOF SFCP036 Partial swing fra

Manufacturer: nVent Hoffman | Catalog # SFCP036 | North Coast Part # 2409177
$389.80/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Partial Height Swing Frames, SFCP mount in wall-mount and floor-stand enclosures and include 19-in hole patterns. This Partial Height Swing Frames, SFCP, SFCP036 item measures 197x496x60mm with a material of Mild Steel, 3U, finish Zinc Plated.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Material
Steel
Size
7.74 x 19.53 x 2.36 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
1

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510527877
Color
Unpainted
Construction
14 gauge
Finish
Zinc
GTiN
00783510527877
Product UPC
78351052787
Weight
4.3 lb

Dimensions

Depth
2.36 Inch
Height
7.74 Inch
Length
24 Inch
Thickness
2 mm
Width
19.53 in
Features
  • Description: Partial height swing frame for 19-components allowing left or right hand opening. Can be used in wall mounted, steel enclosures, and floor standing, combinable and compact, steel enclosures. Rigid S-shaped frame profile equipped with 19 hole pattern in front and back. Zinc plated frame for direct earthing of the mounted components. Standard opening angle 125°-155°. Mounting in wall mounted, steel enclosures requires the SFBP transversal support in combination with the AVB. Mounting in floor standing steel combinable enclosures requires the SFBP transversal support.
  • Lock: 1 double-bit 3 mm lock.
  • Material: 2 mm zinc plated steel.
  • Pack quantity: 1 swing frame with hinges.
  • Mounting requirements: Mounting in wall mounted, steel enclosures requires the SFBP transversal support in combination with the AVB. Mounting in floor standing steel combinable enclosures requires the SFBP transversal support. Adjustable in depth in combination with CLPK profiles.
