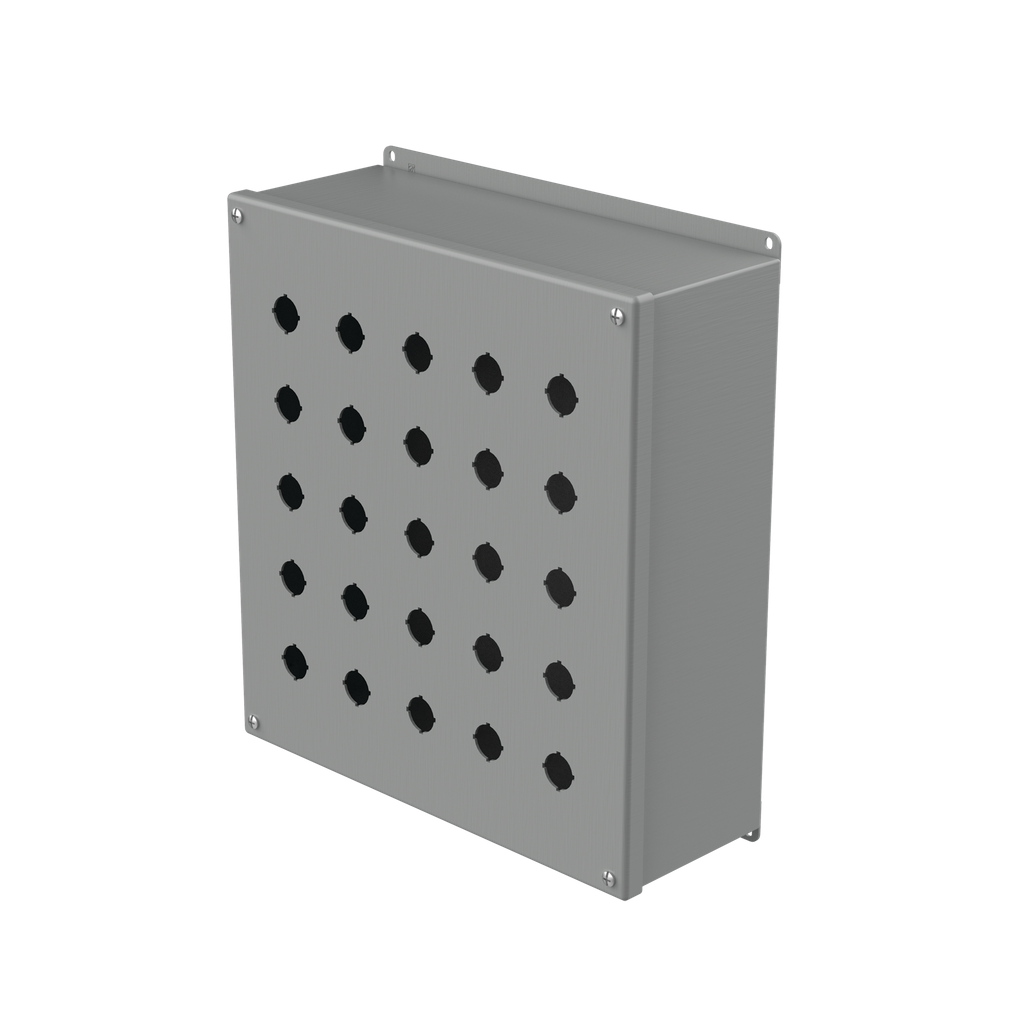

Product image for Hoffman E25PBXM 22.5 mm Extra Deep Push Button Enclosure
Email

Hoffman E25PBXM 22.5 mm Extra Deep Push Button Enclosure

Manufacturer: nVent Hoffman | Catalog # E25PBXM | North Coast Part # 2409354
$520.15/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.

Technical Information

Applications
Controls and Drives
Color Coding
ANSI 61
Gauge
14 AWG
Material
Steel
Number of Holes
25 Hole
Size
25PB x 22.5mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
Mild Steel Industrial Terminal and Junction Boxes

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510130510
Color
Gray
Finish
Powder Coated
GTiN
00783510130510
Product UPC
78351013051
Weight
15 lb

Dimensions

Depth
4-3/4 Inch
Height
14 Inch
Hole Size
22.5 mm
Length
15 Inch
Thickness
1.9 mm
Width
13 in
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
