Product image for Hoffman AP23B44LG Bolt-Down Pedestal, 23" x 4" x 4", Lt Gray, Steel
Email

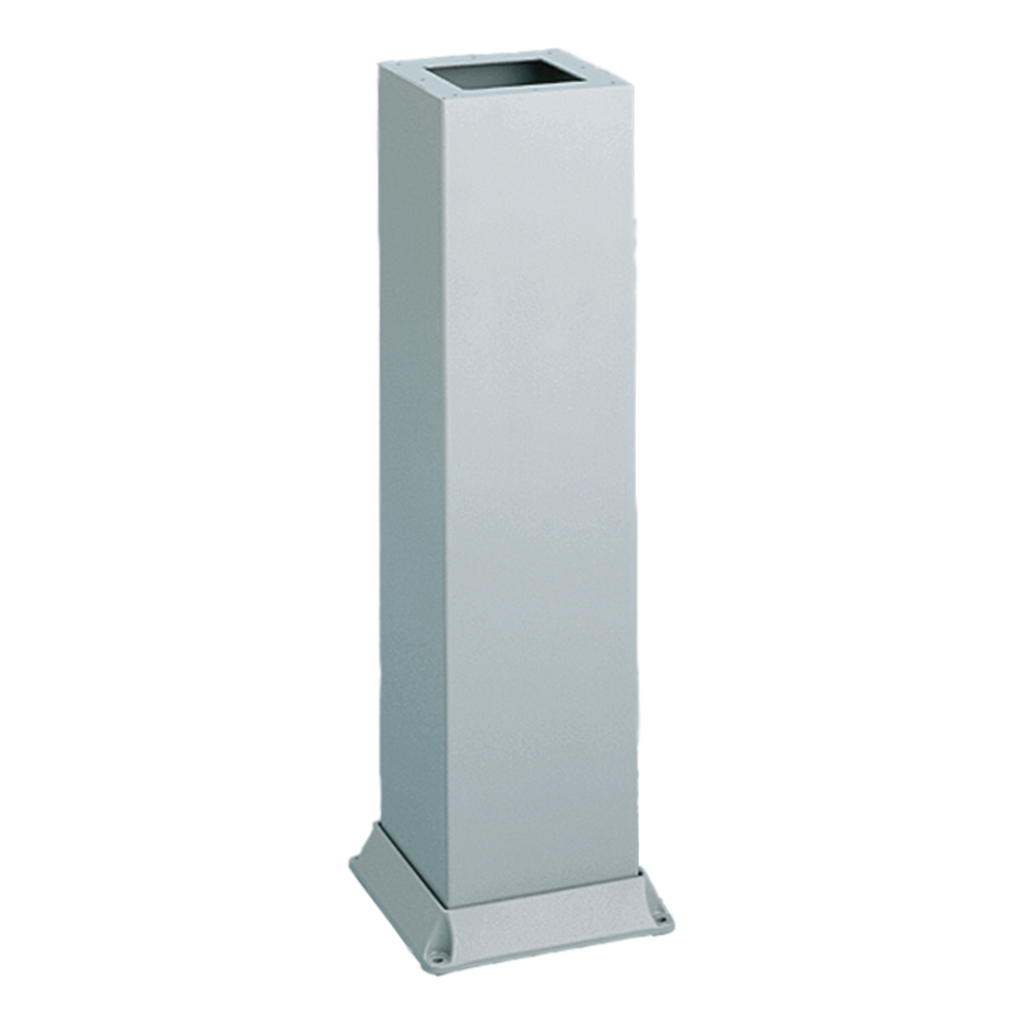

Hoffman AP23B44LG Bolt-Down Pedestal, 23" x 4" x 4", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # AP23B44LG | North Coast Part # 2409373
$1,061.92/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Bolt-Down Pedestal is used to support various HMI enclosures and provides optimal viewing and operating height. Die-cast aluminum base flanges bolt to the one-piece mild steel vertical tube for rigidity and stability. Two heights are available as standard offering to meet your ergonomic requirements.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
23.00x4.00x4.00 in
Type
Pedestals

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510132460
Color
Light Gray
Finish
Powder Coated
GTiN
00783510132460
Product UPC
78351013246
Weight
12.4 lb

Dimensions

Depth
4 Inch
Height
23 Inch
Length
36 Inch
Thickness
1.9 mm
Width
4 in
Features
  • Use 4.00 x 4.00-in. (102 x 102-mm) pedestal with Concept HMI and InLine HMI Enclosures
  • Use 8.00 x 8.00-in. (203 x 203-mm) pedestal with ProLine Sloped-Front HMI Enclosures
  • Attach pedestal to HMI base with cutout, swivel, swivel tilt or angle adapter with pre-drilled holes
  • Hardware and gasket to attach enclosure are included
