Eriflex 505513 ERIFLEX Flexibar, Tinned Copper, 250 A, UL 67, UL 758 Certification Details, 1.26" x 0.039", 126.3 kcmil

Manufacturer: Eriflex | Catalog # 505513 | North Coast Part # 2409811
$344.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
nVent ERIFLEX Flexibar, Tinned Copper, 250 A, UL 67, UL 758 Certification Details, 1.26" x 0.039", 126.3 kcmil

Technical Information

Applications
Power Connections
Material
Copper
Type
nVent ERIFLEX Flexibar Flexible Busbar

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856441373
Finish
Tinned
GTiN
00782856441373
Product UPC
78285644137
Weight
2.42 kg

Dimensions

Length
9.84-9.84 Foot
Features
  • Thin layers of tinned electrolytic copper formed into a stack
  • Insulated by high-resistance, self-extinguishing PVC with less than 20% contact with conductor for high flexibility

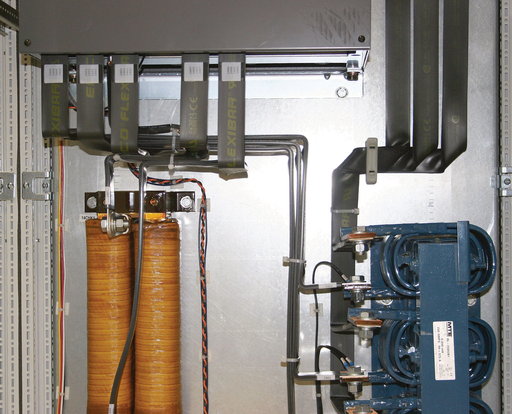

  • Easily bent, folded, and twisted, improving assembly flexibility, shortening connections, and decreasing footprint
  • Dramatically smaller and more flexible than comparable cable based on ampacity
  • Better power density than cable with lower skin effect ratio
  • Connections made by punching and bolting directly through the copper laminates, clamping onto the end of the nVent ERIFLEX Flexibar, or welding using nVent ERICO Cadweld
  • No lugs needed, reducing installation time and improving resistance to vibration
  • Weight savings and material savings compared to wire alternatives
  • Reduces total installation cost
  • Traceability codes and designation part numbers printed on insulation
  • 100% production dielectric tested
  • UL 758 Appliance Wiring Material requirements for Cold Bend testing at -40°C and -50°C (-40°F and -58°F)
  • EAC compliant
  • RoHS compliant
  • Tinned copper allows for copper or aluminum conductor connections
Certifications
  • UR ANSI/UL 758
  • cUR CSA C22.2 No. 29, CSA C22.2 No. 244
  • UR ANSI/UL 67, ANSI/UL 891
  • CSA CSA C22.2 No. 0, CSA C22.2 No. 210
  • Bureau Veritas ACE 14/163/02
  • CE, ERIFLEX FLEXIBAR EN 61439-1
