NVENT EFS RTP3034 PROTECTOR,TRANSDU

Manufacturer: Cadweld | Catalog # RTP3034 | North Coast Part # 2409877
$379.14/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

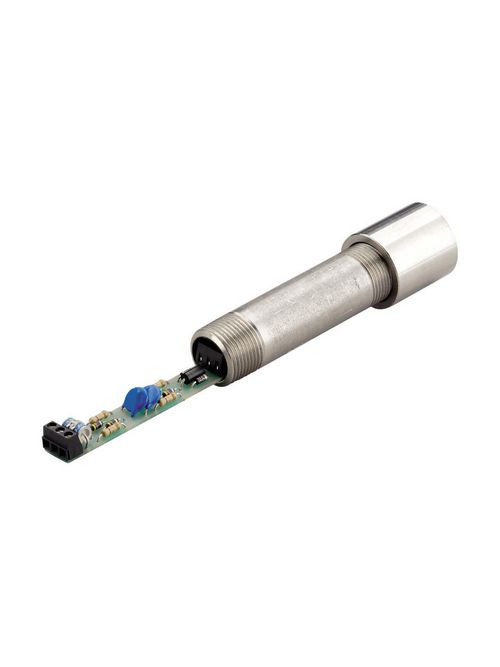

Remote Transmitter Protector

Technical Information

IP Rating
IP55
Operating Temperature
-40 To 149 degrees F
Thread Size
3/4 NPT

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico

General Product Info

12-Digit UPC
782856526667
GTiN
00782856526667
Product UPC
78285652666
Weight
0.28 kg

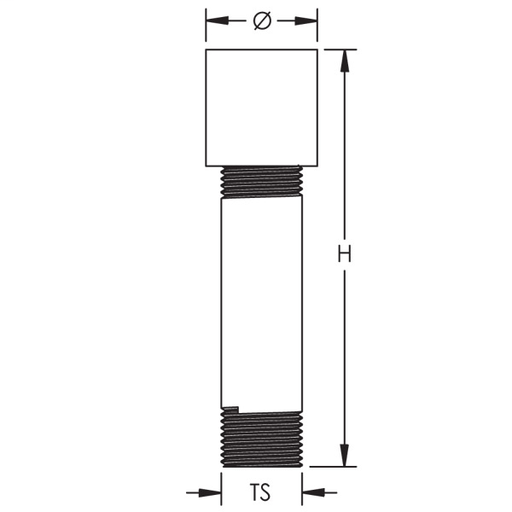

Dimensions

Diameter
1.38 Inch
Height
5 Inch

Certifications and Compliance

Certifications
CE
Features

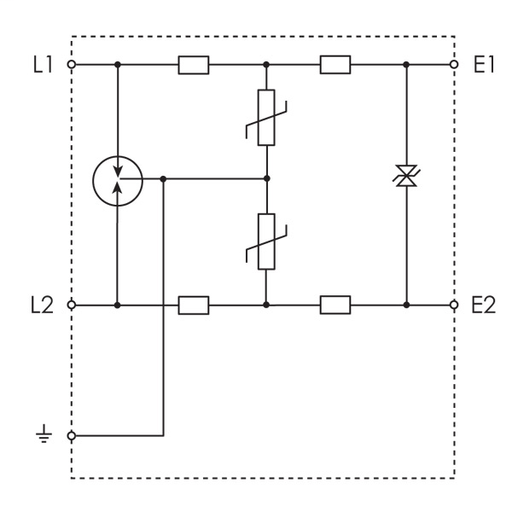

  • Three stage protection and fine over-voltage protection helps ensure lowest residual surge voltage reaches sensitive equipment
  • Flexible installation allows enclosure to be installed dead ended\", T\" configured or in-line
  • Optimized for protection of 2-wire industrial 4-20mA loops and suitable for exposed locations
  • Supports line currents up to 145mA and protects 24VDC powered equipment
