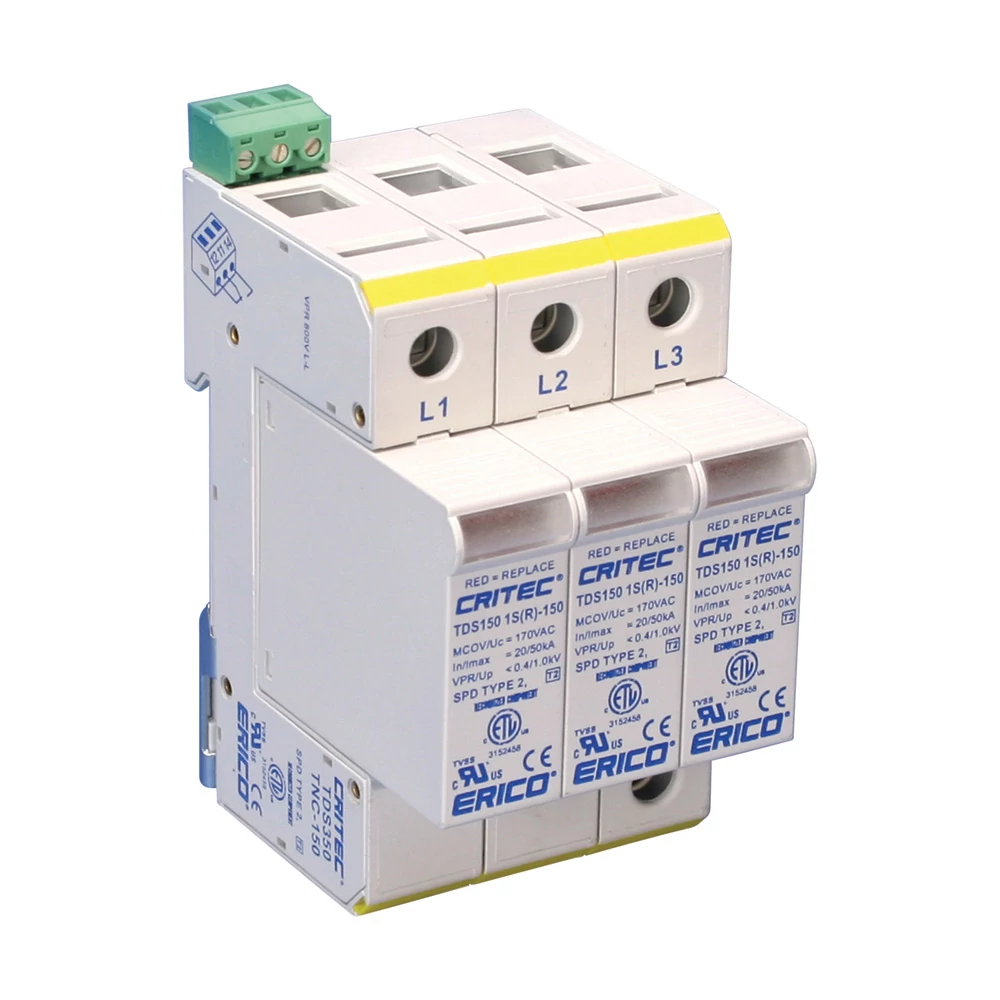

Product image for ERC TDS350TNC150 DIVERTER, TD,3PH,T
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

ERC TDS350TNC150 DIVERTER, TD,3PH,T

Manufacturer: Cadweld | Catalog # TDS350TNC150 | North Coast Part # 2409958
$736.48/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

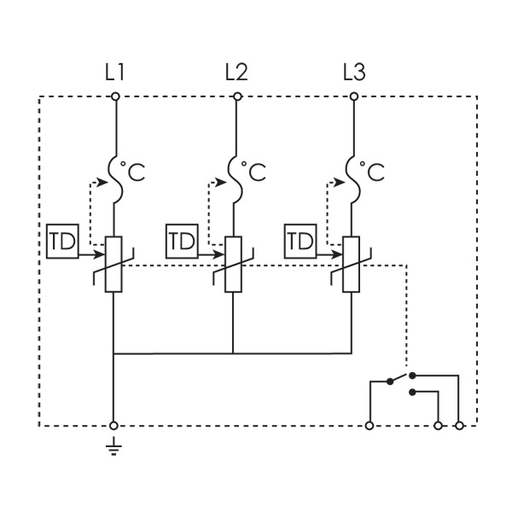

Transient Discriminating Surge Diverter, 50 kA TNC System, 120-150 VAC Un

Technical Information

Applications
Facility Electrical Protection; Panel; Rail; Solar Power; Telecom; Utility
Enclosure Material
Thermoplastic
Standard
CE,CUR,UR
Type
Transient Discriminating Surge Diverter, 50 kA TNC System

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856585459
GTiN
00782856585459
Product UPC
78285658545
Weight
0.36 kg

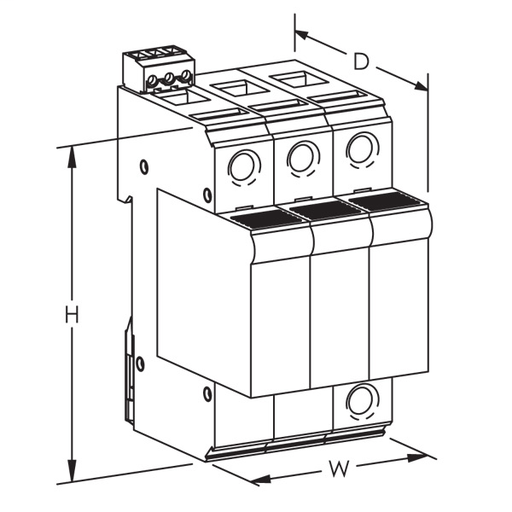

Dimensions

Depth
2.68 Inch
Height
3.54 Inch
Width
2.07 in

Certifications and Compliance

Certifications
CEcURus
Certifications
  • UR ANSI/UL 1449
  • cUR CSA C22.2 No. 269.4
Features
  • TD Technology with thermal disconnect protection
  • Compact design fits into DIN distribution panel boards and motor control centers
  • Indication flags and voltage-free contacts provide remote status monitoring
  • Separate plug and base design facilitates replacement of a failed surge module
  • 50kA 8/20?s maximum surge rating provides protection suitable for sub-distribution panels and a long operational life
