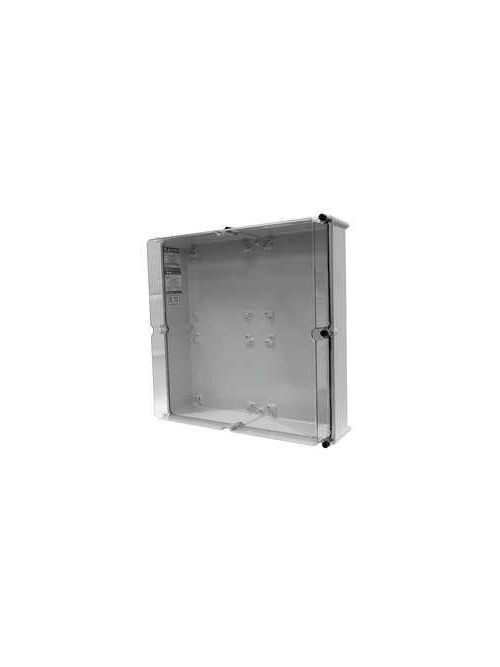

Vynckier Enclosure Systems A12-2424CTH 23.74 x 23.74 x 8.31 Inch NEMA 4X Non-Metallic Hinge and Corner Screw Enclosure

Manufacturer: nVent Hoffman | Catalog # A12-2424CTH | North Coast Part # 2410135
$1,065.74/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
APO enclosures are designed for electrical junction, terminal wiring, instrument, electrical control. This APO Flat Transparent Screw Cover Type 4X, A12-2424CTH item measures 23.74x23.74x6.93 with material Fiberglass color Lt Gray.

Technical Information

Color Coding
RAL 7035
Material
Fiberglass
Style
Transparent Cover, Non-metallic Hinges And Non-metallic Corner Screws

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
635394001564
Color
Gray
Finish
Matte
GTiN
00635394001564
Product UPC
63539400156
Weight
17.5 lb

Dimensions

Depth
6.93 Inch
Height
23.74 Inch
Length
23.8 Inch
Width
23.74 in
Features
  • Available sized from 7x6 (178x152mm) to 24x24 (610x610mm)
  • Enclosures are maintenance free and corrosion resistant
  • Bases and covers are made from hot compression molded halogen free, self extinguishing fiberglass reinforced polyester (FRP) that can withstand continuous temperatures up to 158°F (70°C) and momentary exposure to 302°F (150°C)
  • All enclosures can be easily modified to customer specifications
  • Gaskets are made from continuously poured polyurethane foam
  • Brass M4 threaded inserts are factory installed for mounting plate attachment
  • 5 to 6 bosses suitable for M6 threaded inserts are molded into the base (dependant on enclosure size).
  • Maintain UL / CSA Type 4x with up to 5 extension collars
