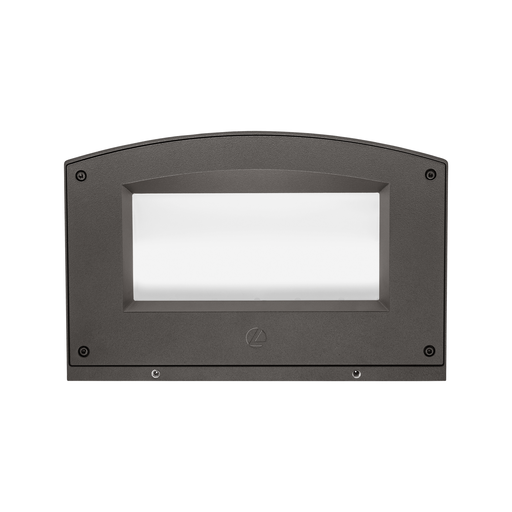

Product image for LITH ARC2 LED P5 40K MVOLT DDBTXD A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

LITH ARC2 LED P5 40K MVOLT DDBTXD A

Manufacturer: Lithonia Lighting | Catalog # ARC2 LED P5 40K MVOLT DDBTXD | North Coast Part # 2410546
$600.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
It.s time to upgrade your expectations when it comes to upgrading wall mounted lighting. The all-new Lithonia Lighting® ARC LED wall-mounted luminaires combine visually comfortable illumination and architectural styling to create an affordable lighting upgrade that you can be proud of, all the while saving 80% in energy costs. With two sizes and lumen packages ranging from 1,500 to 6,500 lumens, the ARC family is ideal for applications from over-the-door lighting to mounting heights of up to 15 feet.

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Acrylic
Lumens
6,500 Lumen Lumen
Material
Aluminum
Mounting Type
Surface
Power Source
Hardwired
Standard
CSA
Style
Traditional
Type
Wallpack
Voltage
120 Volt
Wattage
53 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994666066
Color
Bronze
Environmental Conditions
Outdoor
Finish
Textured
GTiN
00194994666066
Product UPC
19499466606
Shape
Curved
Weight
11.124 lb

Dimensions

Height
5 Inch
Length
9-1/4 Inch
Width
14 in
Features
  • ARC LED Wall Mount Luminaires combine visually comfortable illumination and architectural styling to create an affordable lighting upgrade
  • 6,500 lumen output and 51W at 129 lumens per watt
  • Hardwired on/off capability only
  • CSA certified to US and Canadian standards, IP66 rated
  • MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the integral wiring compartment
  • Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L95/50,000 hours
  • Die-cast aluminum housing and door act as heat sinks to optimize thermal transfer from light engine. Protected exterior using a zinc-infused thermoset powder coated finish to provide resistance to corrosion and weathering
  • No emergency battery back-up available in this version
  • Five-year limited warranty
  • 14 in x 5 in x 9-1/4 in
Applications
  • Automotive & Parking
  • Education
  • Government
  • Healthcare
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Sports and Recreation
  • Warehouses
Standards
  • CSADLC Premium
