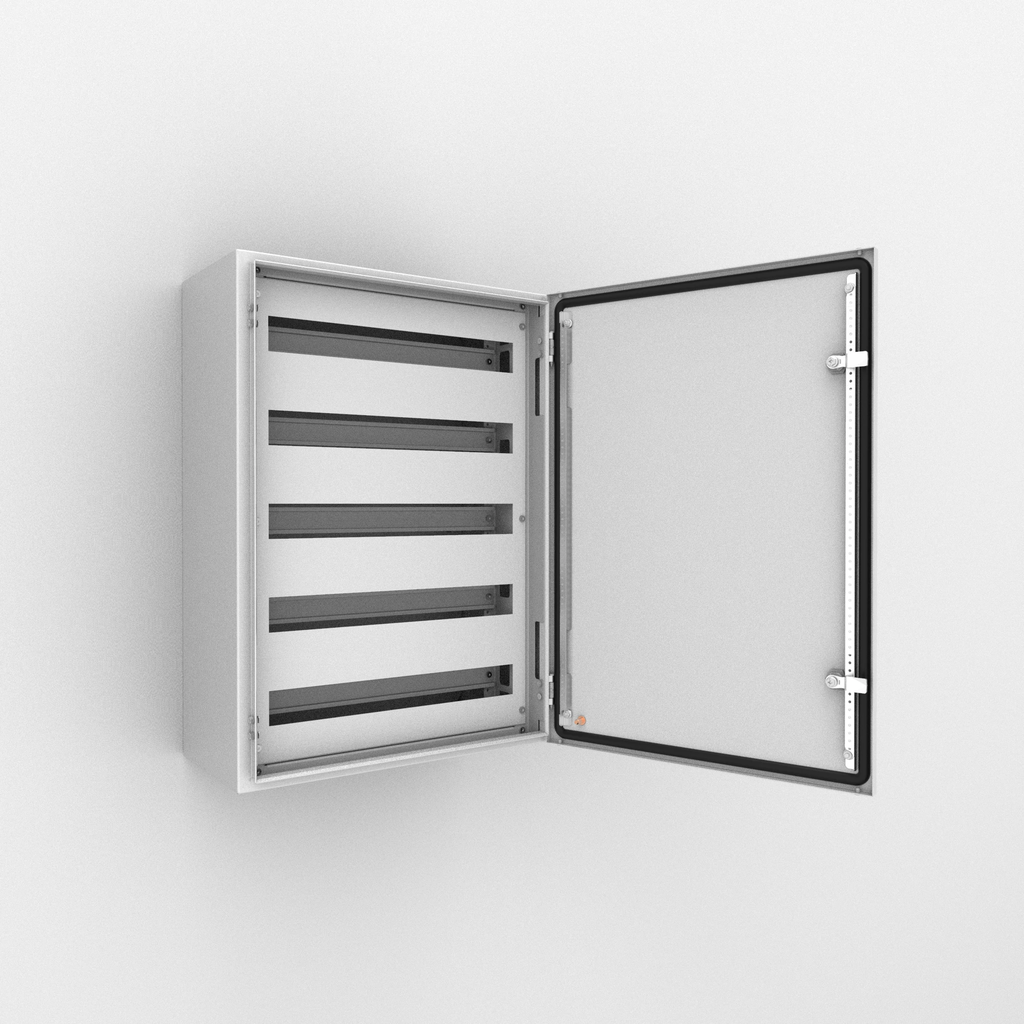

Product image for NVENT HOF AC04030R5 Modular chassis
Email

NVENT HOF AC04030R5 Modular chassis

Manufacturer: nVent Hoffman | Catalog # AC04030R5 | North Coast Part # 2411073
$217.96/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Quickly and easily mount DIN-rail components to this chassis , both at the panel shops and in the field. This Modular Chassis, AC, AC04030R5 item measures 14.96x10.24x3.86 inches with a material of Mild Steel colored Light Gray.

Technical Information

Applications
Controls and Drives; Factory Automation and Process Control
Color Coding
RAL 7035
Material
Steel
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
1

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510113575
Color
Gray
Finish
Powder Coated
GTiN
00783510113575
Product UPC
78351011357
Weight
5.9 lb

Dimensions

Depth
3.86 Inch
Height
12.44 Inch
Length
16.12 Inch
Thickness
1.2 mm
Width
10.24 in
Features
  • Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
  • Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
  • Mounting requirements: To be assembled on MAS and ASR enclosures.
