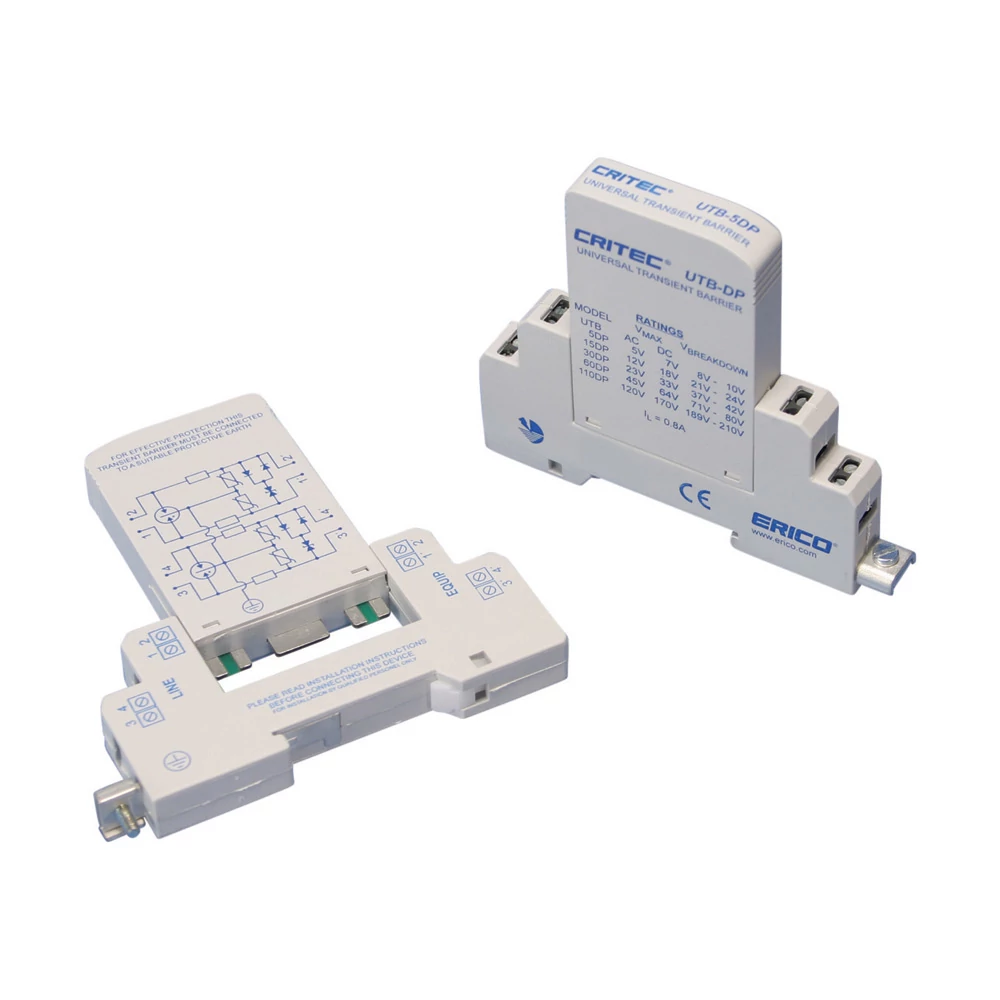

Product image for NVENT EFS UTB110DP UTB, Dual Pair,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

NVENT EFS UTB110DP UTB, Dual Pair,

Manufacturer: Cadweld | Catalog # UTB110DP | North Coast Part # 2411111
$383.99/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

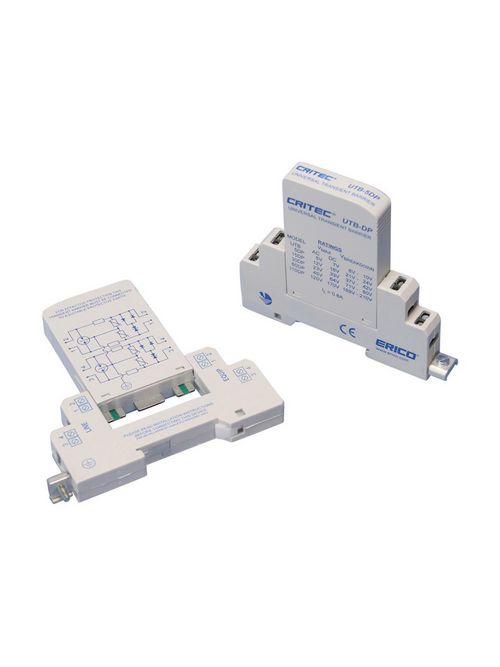

Compact design universal transient barrier provides protection of low-voltage circuits and transducers. 100-120 VAC, 60-154 VDC Un.

Technical Information

Applications
Surge Protection; Power Connections
Enclosure Material
UL® 94V-0 Thermoplastic
Enclosure Rating
IP20
IP Rating
IP20
NEMA Size
1
Operating Temperature
-4 To 149 degrees F
Standard
CE,UR
Type
Universal Transient Barriers

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856622215
GTiN
00782856622215
Product UPC
78285662221
Weight
0.05 kg

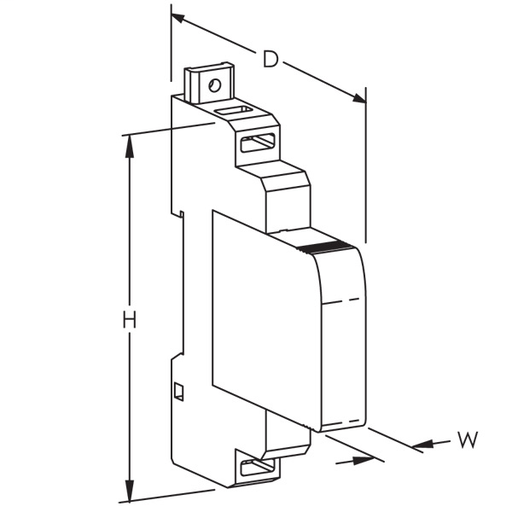

Dimensions

Depth
3.35 Inch
Height
3.54 Inch
Width
0.47 in

Certifications and Compliance

Certifications
CE,UR
Features
  • Compact design universal transient barrier provides protection of low-voltage circuits and transducers
  • Separate plug and base design allows hot swappable module replacement

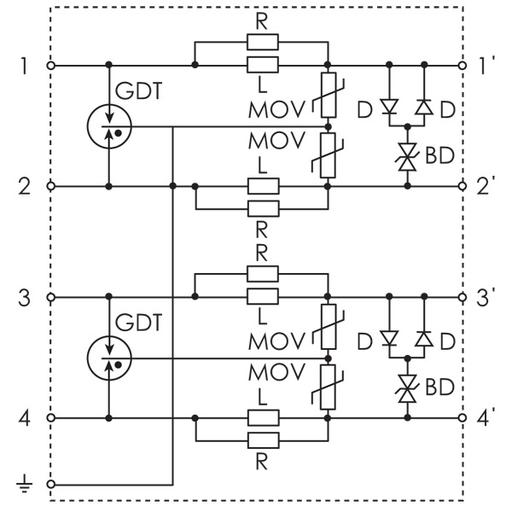

  • Multi-stage protection and fine over-voltage protection helps ensure lowest residual surge voltages reach sensitive equipment
  • Common-mode and differential-mode protection protects against both possible surge conditions
  • Surge rating to 20 kA 8/20 ?s is ideal for exposed wiring
  • Allows for protection of 25 analog signals or 50 digital signals per linear foot (0,3 m) of DIN rail space
Certifications
  • UR ANSI/UL 497B
  • CE, ERICO UTB EN IEC 61643-21
