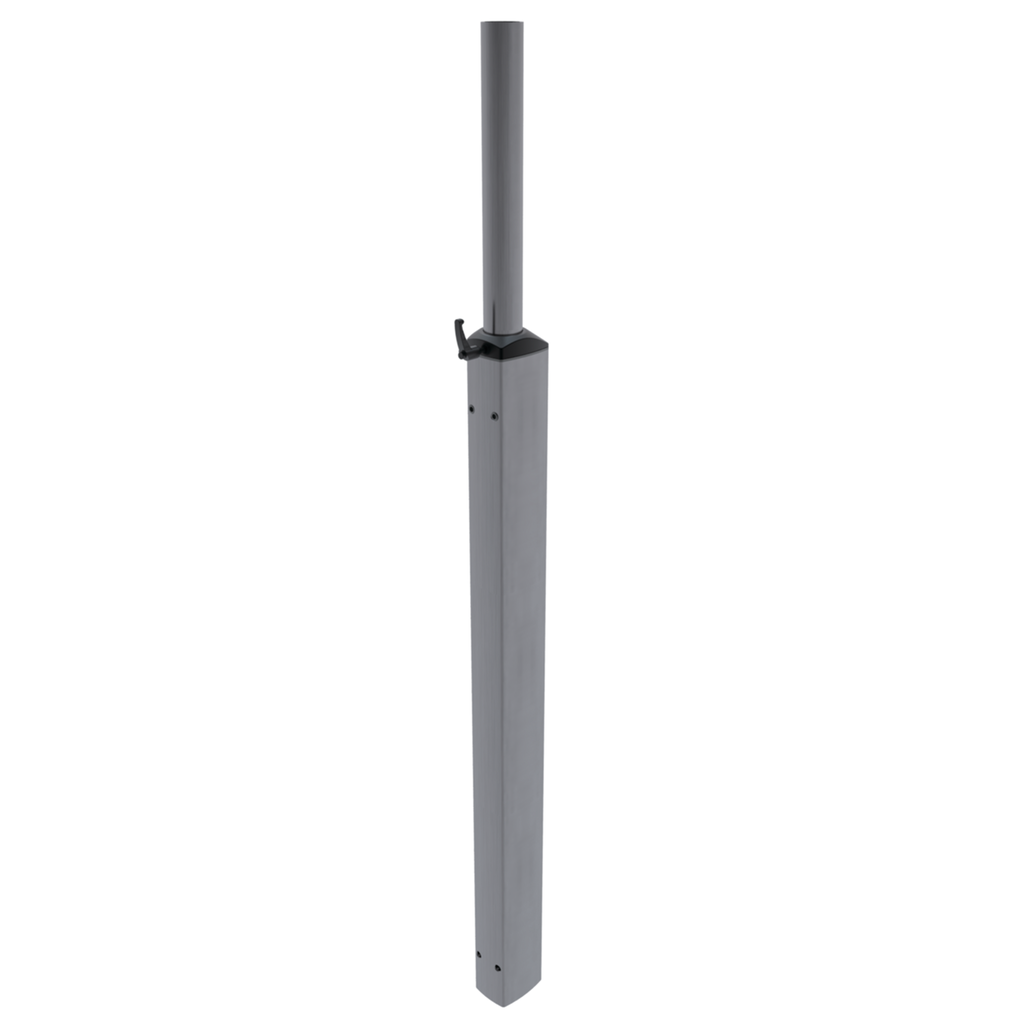

Product image for Hoffman S2M10VP37 SYSPEND 281-MAX Vertical Motion Pedestal Tubes, 3.15" x 4.13" x 48.43, Aluminum
Email

Hoffman S2M10VP37 SYSPEND 281-MAX Vertical Motion Pedestal Tubes, 3.15" x 4.13" x 48.43, Aluminum

Manufacturer: nVent Hoffman | Catalog # S2M10VP37 | North Coast Part # 2411298
$3,105.90/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Syspend 281-Max Vertical Motion Pedestal Tube is a vertical adjustable tube with a lift range of 250mm, allowing enclosure to be positioned at the optimal viewing height for different operators. The 48-mm Round Tube Flange Coupling (S2MFC48) and Adapter (S2MA48) is required for attachment to HMI enclosures with a 60 x 60-mm hole pattern (i.e. Syspend Aluminum HMI and Concept HMI). The weight of the coupling, adapter plate, enclosure and internal components must be factored into the load when selecting a tube.

Technical Information

Applications
Controls and Drives
Material
Aluminum
Size
3.15x4.13x48.43 in
Type
SYSPEND 281-MAX Suspension System

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Syspend

General Product Info

12-Digit UPC
783510188344
Color
Unpainted
Finish
Anodized
GTiN
00783510188344
Product UPC
78351018834
Weight
17 lb

Dimensions

Depth
3.54 Inch
Height
3-1/4 Inch
Length
56 Inch
Thickness
6 mm
Width
2.76 in
Features
  • Adjustable from 1130 mm (44.49 in.) to 1380 mm (54.33 in.) with internal gas springs
  • Four models support loads ranging from 11 to 77 lb. (4.9 to 34.9 kg)
  • Height is fixed in place at any position by locking handle
  • Cables are separated from gas springs inside the tube
  • Internal strain-relief for cables inside the tube
  • Can be attached to Small Pedestal Base, Vertical Wall Joint, Wall Flange, Rotary Base, Elbow or Rotatable Elbow
  • Tube cannot be inverted for overhead mounting on the enclosure
