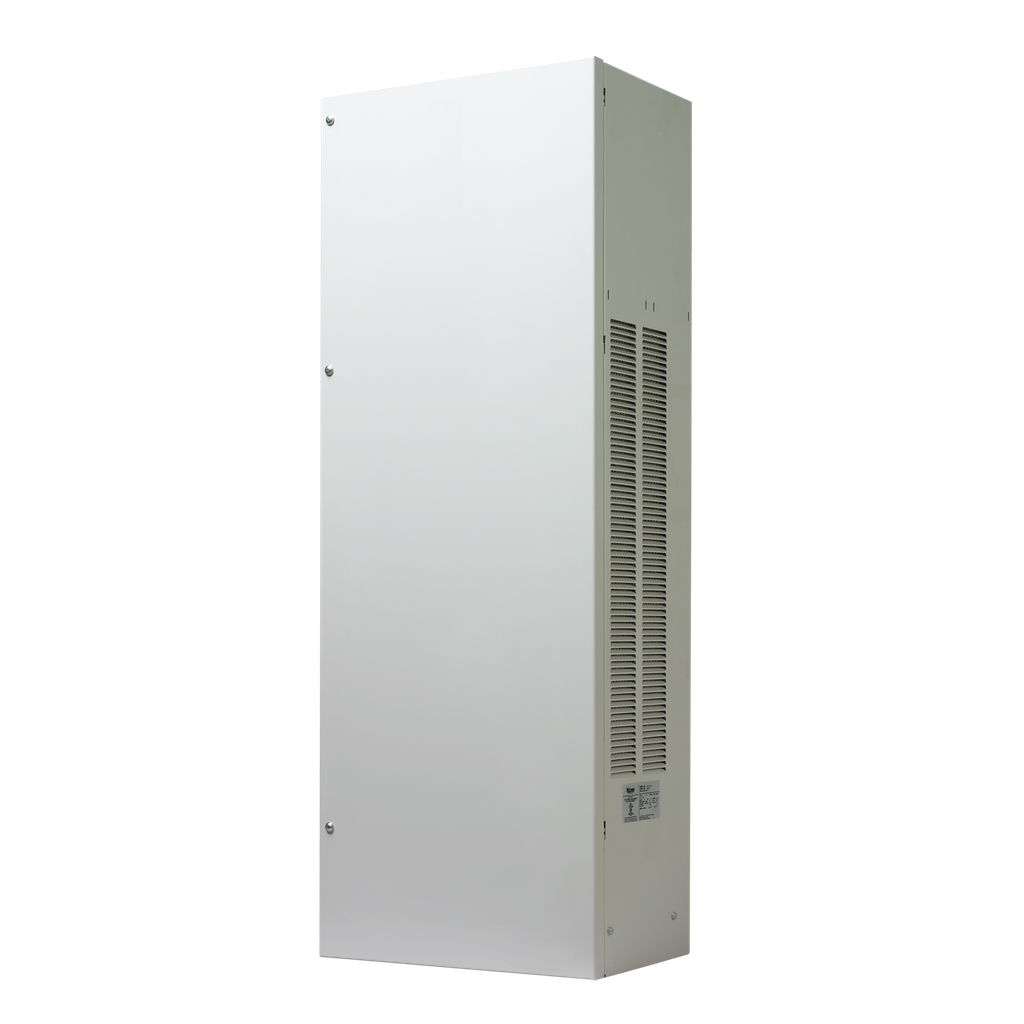

Product image for Hoffman CR430826G026 ProAir Harsh Environment Air Conditioner, CR43 8,000 BTU, 230V, 50/60 HZ
Email

Hoffman CR430826G026 ProAir Harsh Environment Air Conditioner, CR43 8,000 BTU, 230V, 50/60 HZ

Manufacturer: nVent Hoffman | Catalog # CR430826G026 | North Coast Part # 2411304
$8,080.30/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The ProAir Harsh Environment Air Conditioner protects components exposed in corrosive environments on the ambient side of the air conditioner. The unit has few fasteners and a hinged door for quick service and maintenance access. The smooth surface and optional hood provides protection from splashed water.

Technical Information

Amperage
6.6 Amp
Applications
Controls and Drives; Corrosive Environments; Power Distribution
BTU Hour
8000 BTU
Color Coding
RAL 7035
Frequency
50/60 Hz
Material
Steel
Max Current
6.6 A
Max Power Current
2344 W
Max Temperature
131 degrees F
Min Temperature
-40 degrees F
Operating Temperature
131 deg F
Standard
CE,File No. SA6453,Refer To Tables For Specific UL/cUL Type Ratings These Air Conditioners Maintain When Properly Installed On A UL/cUL Rated Enclosure.,UL/cUL Listed
Type
Air Conditioners
Voltage
230
Wattage
2344 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProAir

General Product Info

12-Digit UPC
783510193126
Color
Lt Gray
Finish
Powder Coated
GTiN
00783510193126
Housing Material
Mild Steel
Product UPC
78351019312
Weight
140 lb

Dimensions

Depth
10-1/4 Inch
Height
13 Inch
Length
47 Inch
Thickness
1.21 mm
Width
15.75 in
Features
  • Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
  • Smooth surface with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134a, R513A or R407C Refrigerant
  • Models for 115, 230 and 460 single phase VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • High-performance fans and blowers designed for densely packed enclosures
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
  • Mounting hardware, gaskets and user manual furnished with the unit
