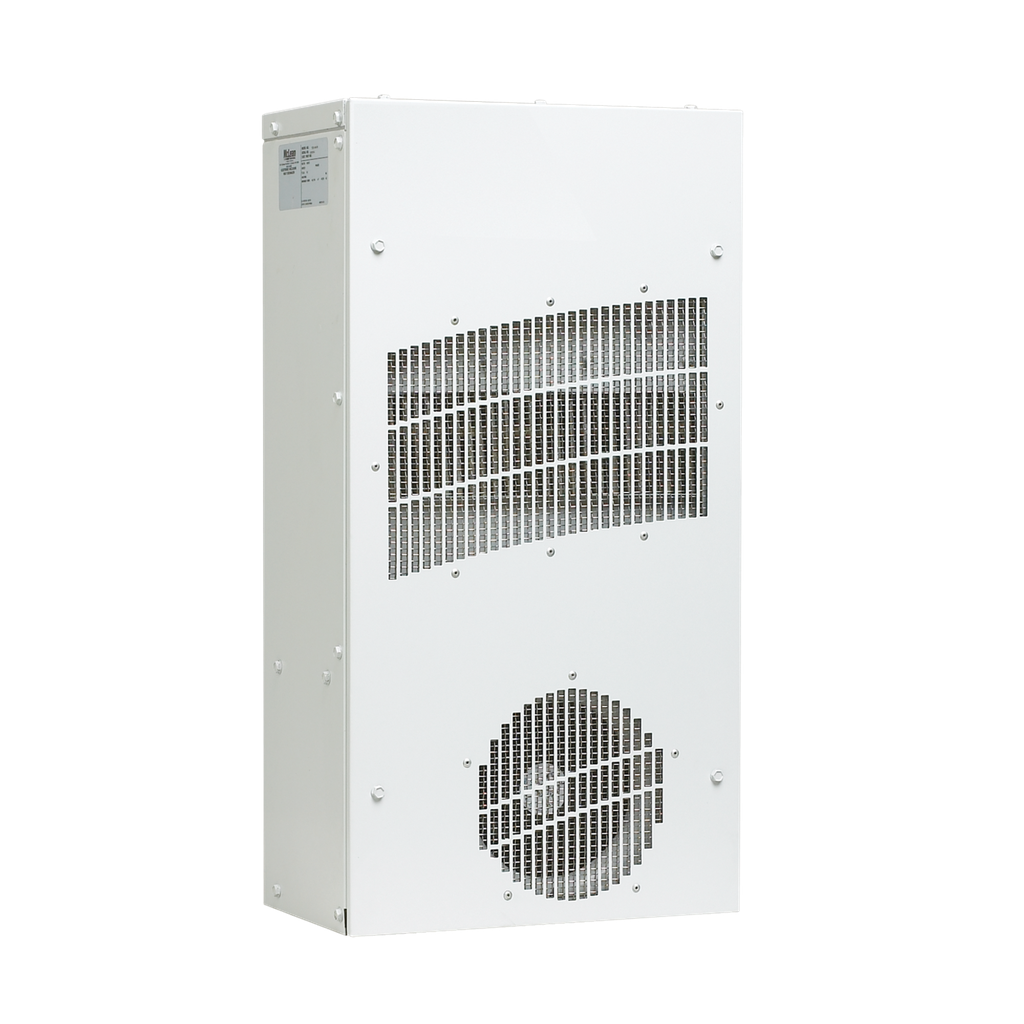

Product image for Hoffman TX231448100 CLIMAGUARD Air-to-Air Heat Exchanger Outdoor, 48 VDC
Email

Hoffman TX231448100 CLIMAGUARD Air-to-Air Heat Exchanger Outdoor, 48 VDC

Manufacturer: nVent Hoffman | Catalog # TX231448100 | North Coast Part # 2411325
$4,298.73/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
nVent Hoffman.s ClimaGuard Outdoor Heat Exchangers offer reliable closed-loop cooling while sealing out harsh environments including temperature extremes, dirt, dust, corrosive elements and wind-driven rain. This robust heat exchanger features a double-crimped and dip-sealed core, allowing efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Outdoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface- or recess-mounted to an enclosure with no loss of enclosure integrity.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Max Current
1.8 A
Max Temperature
149 degrees F
Min Temperature
-40 degrees F
Power Consumption
14 W per deg F max
Standard
12,3R Enclosure.,3R Rating When Properly Installed On The Appropriate UL/cUL Type 4,Maintains UL/cUL Type 4,UL File No. SA7402,UL/cUL Listed
Type
Heat Exchangers
Voltage
48

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ClimaGuard

General Product Info

12-Digit UPC
783510188535
Color
Gray
Finish
Powder Coated
GTiN
00783510188535
Housing Material
Mild Steel
Product UPC
78351018853
Weight
34.5 lb

Dimensions

Depth
7.1 Inch
Height
23 Inch
Length
15.4 Inch
Thickness
1.21 mm
Width
12 in
Features
  • Unique counterflow aluminum core for high efficiency and high performance heat transfer
  • Engineered for temperature extremes, corrosive environments and wind driven rain
  • Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
  • Variable speed blowers standard on DC powered units for quiet running
  • Filterless design for low maintenance and easy cleaning
  • Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Surface or recessed mount capable
  • Every unit functionally tested before shipping
  • Mounting hardware, gaskets and user manual furnished with the unit
