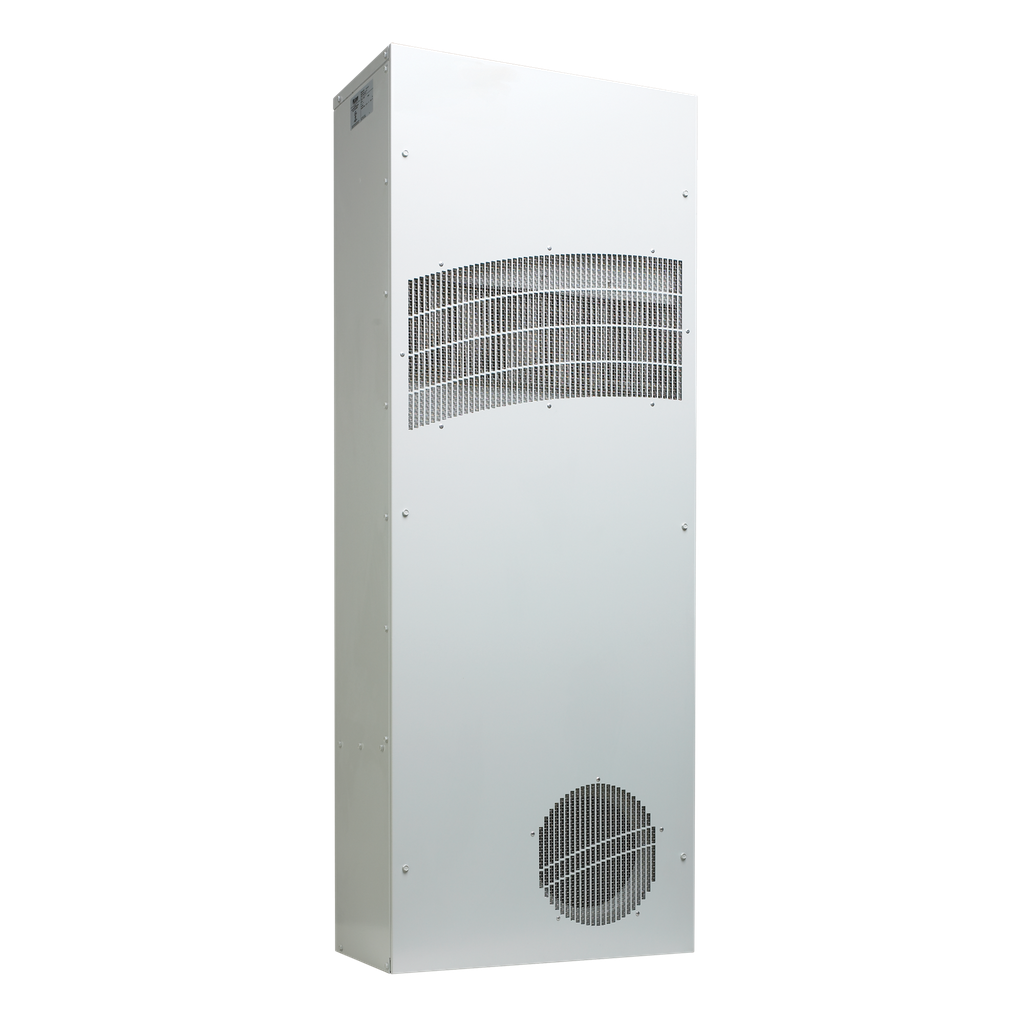

Product image for TX52 48DC HEX
Email

TX52 48DC HEX

Manufacturer: nVent Hoffman | Catalog # TX528348100 | North Coast Part # 2411327
$9,103.76/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX528348100 is rated for X52 83w/F 48v

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Max Current
7.8 A
Max Temperature
149 degrees F
Min Temperature
-40 degrees F
Power Consumption
83 W per deg F max
Standard
12,3R Enclosure.,3R Rating When Properly Installed On The Appropriate UL/cUL Type 4,Maintains UL/cUL Type 4,UL File No. SA7402,UL/cUL Listed
Type
Heat Exchangers
Voltage
48

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510188610
Color
Gray
Finish
Powder Coated
GTiN
00783510188610
Housing Material
Mild Steel
Product UPC
78351018861
Weight
105 lb

Dimensions

Depth
10.1 Inch
Height
52 Inch
Length
21-1/2 Inch
Thickness
1.21 mm
Width
12.50 in
Features
  • Unique counterflow aluminum core for high efficiency and high performance heat transfer
  • Engineered for temperature extremes, corrosive environments and wind driven rain
  • Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
  • Variable speed blowers standard on DC powered units for quiet running
  • Filterless design for low maintenance and easy cleaning
  • Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Surface or recessed mount capable
  • Every unit functionally tested before shipping
  • Mounting hardware, gaskets and user manual furnished with the unit
