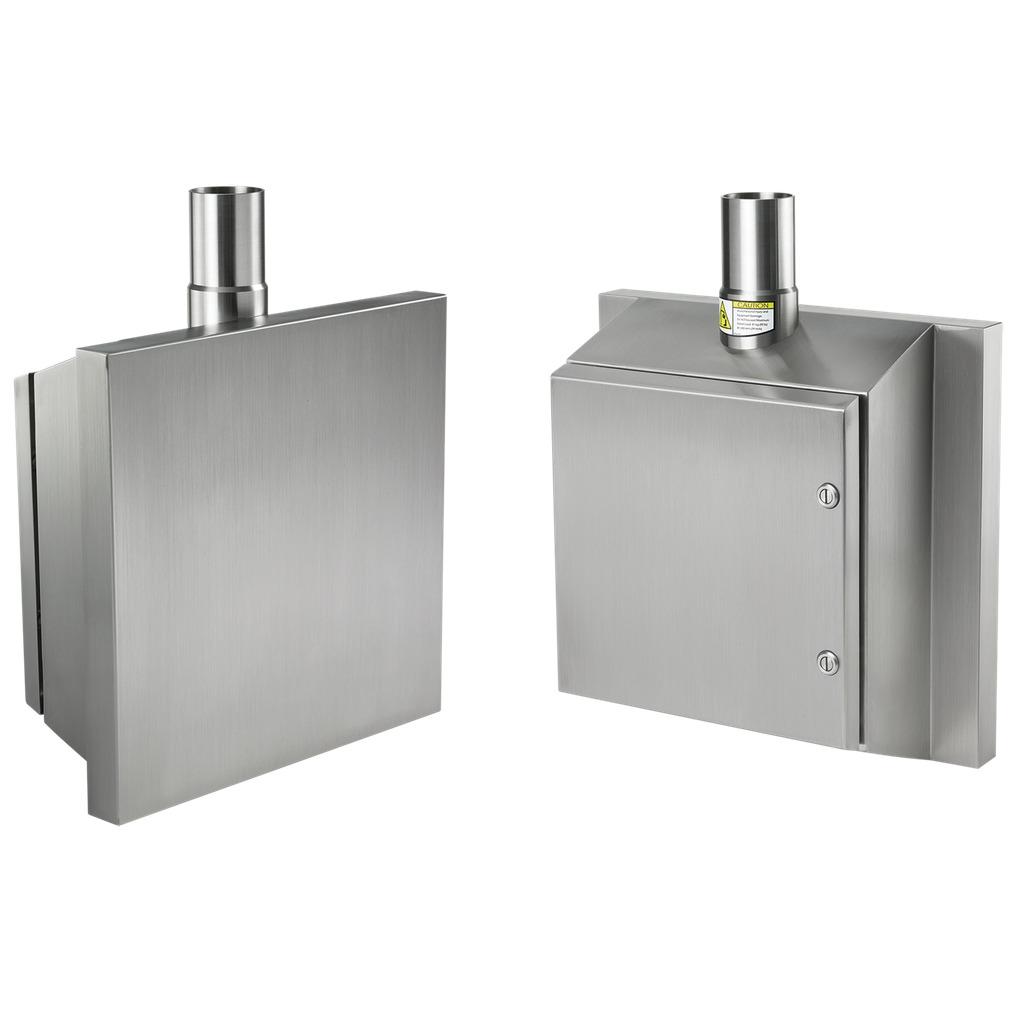

Product image for Hoffman S304015SS SYSPEND Sanitary Enclosure, Type 4X, 11.81x 15.75" x 5.91, SS Type 304
Email

Hoffman S304015SS SYSPEND Sanitary Enclosure, Type 4X, 11.81x 15.75" x 5.91, SS Type 304

Manufacturer: nVent Hoffman | Catalog # S304015SS | North Coast Part # 2411435
$1,612.41/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Syspend Sanitary HMI enclosure is specifically designed to house process control equipment in sanitary washdown environments, particularly food and beverage manufacturing. It features many clean design elements and meets Type 4X and IP69K requirements for high-pressure, high-temperature washdown applications. Combine the enclosure with Syspend Sanitary Suspension System to suspend equipment for easy cleaning and washdown. Furnished with grounding hardware, internal support plate, suspension arm adapter, and hardware for attaching the support plate and adapter.

Technical Information

Applications
Corrosive Environments; Hygienic Environments; Controls and Drives
Material
Stainless Steel
Size
11.81x15.75x5.91 in
Standard
12,4X,CSA File No. 42186,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,IP69K,NEMA/EEMAC Type 4,Type 4,UL 508A Listed
Type
SYSPEND™ Sanitary Enclosure,Type 4X

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Syspend

General Product Info

12-Digit UPC
783510193287
Color
Unpainted
Finish
Brushed
GTiN
00783510193287
Product UPC
78351019328
Weight
20.6 lb

Dimensions

Depth
5.91 Inch
Height
11 Inch
Length
22 Inch
Thickness
1.2 mm
Width
15.75 in
Features
  • Enclosure provides modern, flat-screen monitor-style aesthetics
  • Integrated side handles allow for easy repositioning of enclosure
  • Fully concealed silicone gasket area provides complete protection in washdown environments
  • 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
  • Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
  • Enclosure can be flipped for either pendant or pedestal mounting
  • Hinges are shielded by door
  • Suspension arm adapter included to attach to Syspend Sanitary Suspension System and Syspend VHDS-Motion Arm
  • Suspension arm adapter can be installed backwards to provide 40-degree tilt for pedestal applications
  • Internal support plate provides extra rigidity for suspension mounting
  • H2Omit Vent Drain can be installed on the flat area to provide means of removing condensed moisture from the enclosure
  • Seams continuously welded and ground smooth
  • Bonding provision on door; grounding stud on body
  • Door secured with two stainless steel quarter-turn latches with flush slotted insert
  • Panel studs on door fit optional NEMA-style panels
