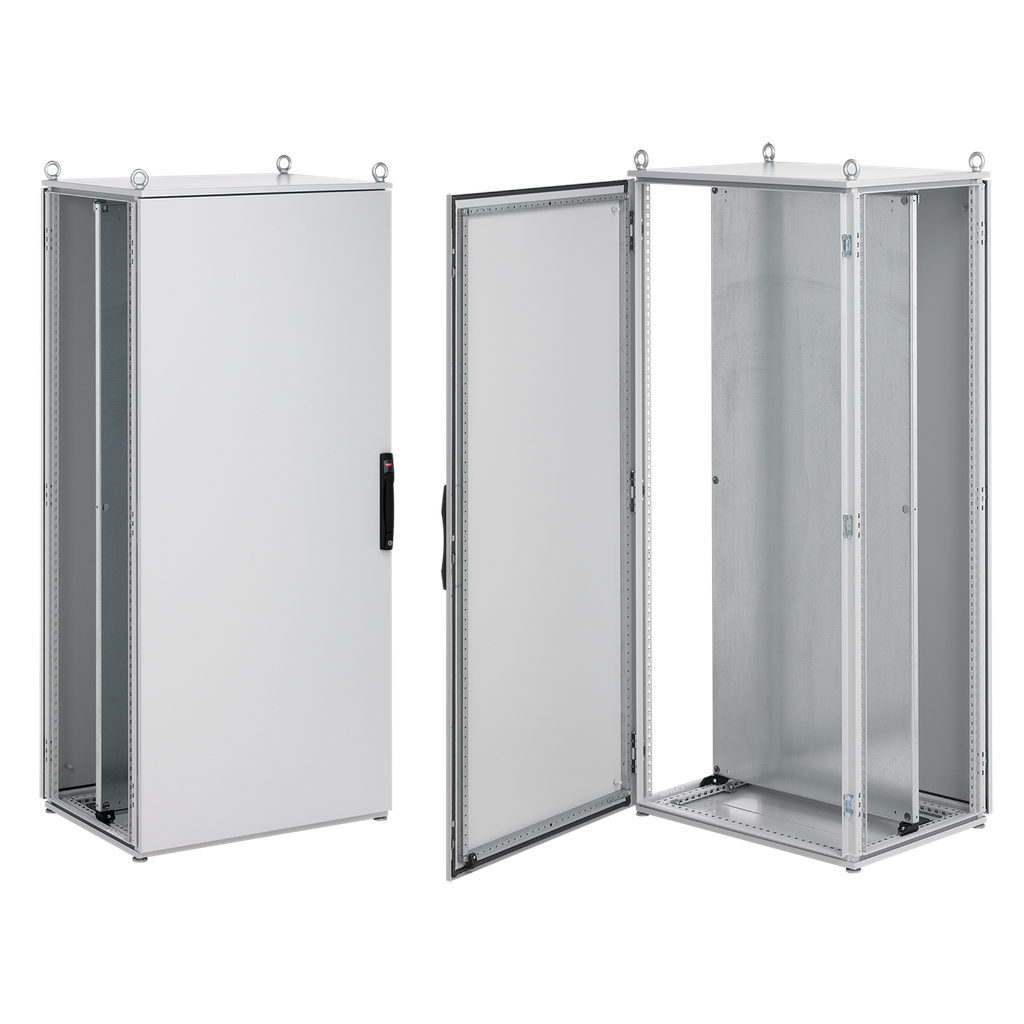

Product image for NVENT HOF PPOD18128 PP OD 1800X120
Email

NVENT HOF PPOD18128 PP OD 1800X120

Manufacturer: nVent Hoffman | Catalog # PPOD18128 | North Coast Part # 2411558
$5,722.86/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
ProLine Type 12 Industrial Packages are full-featured solutions that include all components. This ProLine Industrial Packages Type 12 2-Dr, PPOD18128 item measures 1800x1200x800mm with a material of Steel colored Lt Gray.

Technical Information

Applications
Power Distribution; Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
1800x1200x800mm
Standard
CSA File Number 42186: Type 12,File Number E61997,IEC 60529,IP55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed,VDE IP55
Type
PROLINE™ Industrial Packages,Type 12

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510198138
Color
Lt Gray
Finish
Powder Coated
GTiN
00783510198138
Product UPC
78351019813
Weight
453 lb

Dimensions

Depth
31-1/2 Inch
Height
70.87 Inch
Length
37 Inch
Width
47.24 in
Features
  • Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
  • Standard door bars increase strength and rigidity and allow for an extra mounting options
  • Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
  • Gasket and latching system together ensure a solid seal with low closure force
  • Reversible door, left hinged as a default, with 130-degree swing
  • Galvanized mounting plates
  • Capped ground studs on door, rear and top panel
  • Integral frame channels support the full weight of the mounting plates
  • Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
  • Door thickness 14 gauge/2.0 mm, carbon steel powder painted for details please check reference tables
  • Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel
  • Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035
