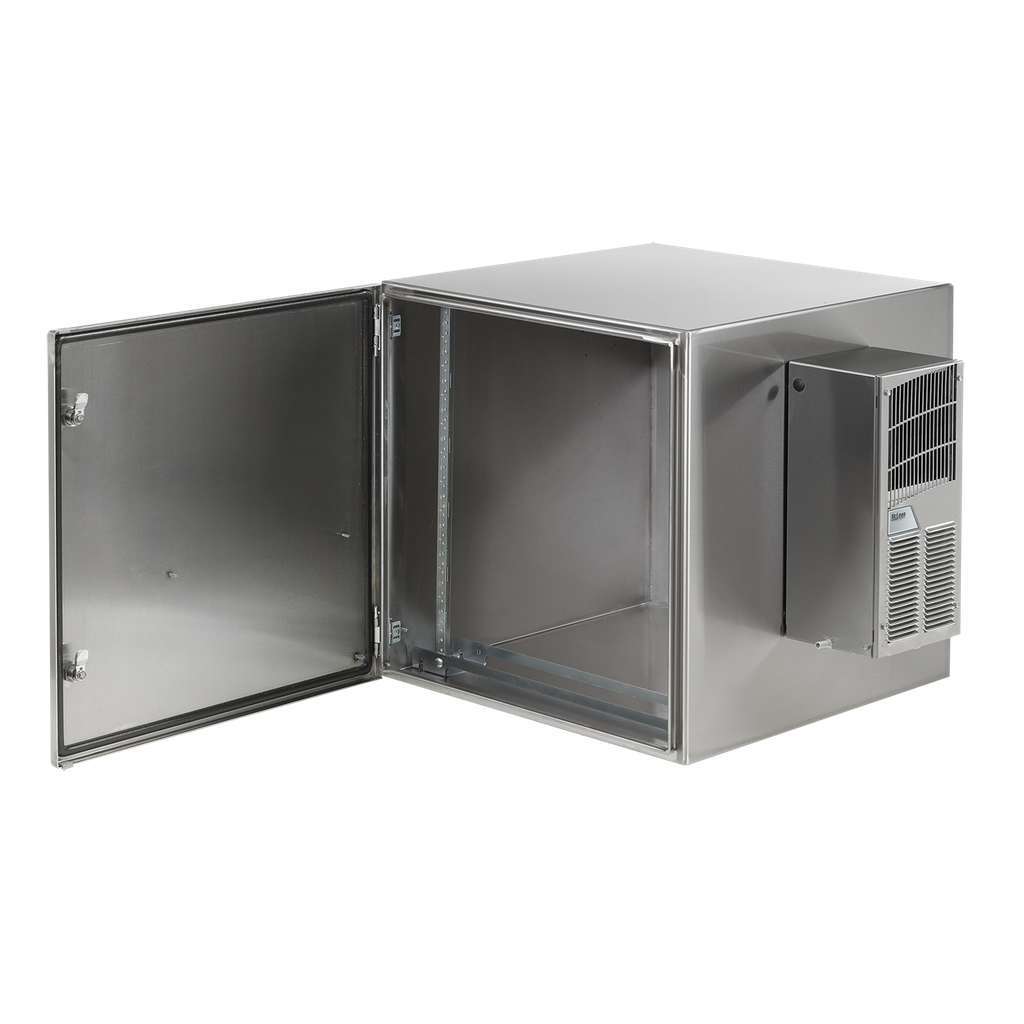

Product image for PTK SGL SD 24X24X24 SSAC 4X
Email

PTK SGL SD 24X24X24 SSAC 4X

Manufacturer: nVent Hoffman | Catalog # PTRS242424XA | North Coast Part # 2411650
$11,277.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProTek Single-Hinged Cabinets protect wall-mounted equipment in harsh environments. This ProTek Single-Door Solid AC Type 4 4X 12, PTRS242424XA item measures 24.09x23.62x24.02in. with a material of SS304 finish Brushed.

Technical Information

Applications
Corrosive Environments; Networking, Storage and Data Center; Datacom and Telecom Equipment; Controls and Drives
Material
Stainless Steel
Rack Unit
12
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProTek

General Product Info

12-Digit UPC
783510240578
Color
Unpainted
Finish
Brushed
GTiN
00783510240578
Product UPC
78351024057
Weight
156 lb

Dimensions

Depth
24.02 Inch
Height
24.09 Inch
Length
29 Inch
Thickness
1.9 mm
Width
23.62 in
Features
  • Solid-door cabinet provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
