Erico CSP1NB90 Coaxial Surge Protector, N-Type, F/F, 450 V Spark-Over Voltage @ 100 V/?s

Manufacturer: Cadweld | Catalog # CSP1NB90 | North Coast Part # 2411728
$211.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
coaxial surge protection. For 90 V bulkhead N-Type connections.

Technical Information

Applications
Facility Electrical Protection; Lightning Protection; Panel; Rail; Solar Power; Telecom; Utility
IP Rating
IP20
NEMA Size
1
Operating Temperature
-40 To 194 degrees F
Standard
CE,UL
Type
Coaxial Surge Protector

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856690726
GTiN
00782856690726
Product UPC
78285669072
Weight
0.19 kg

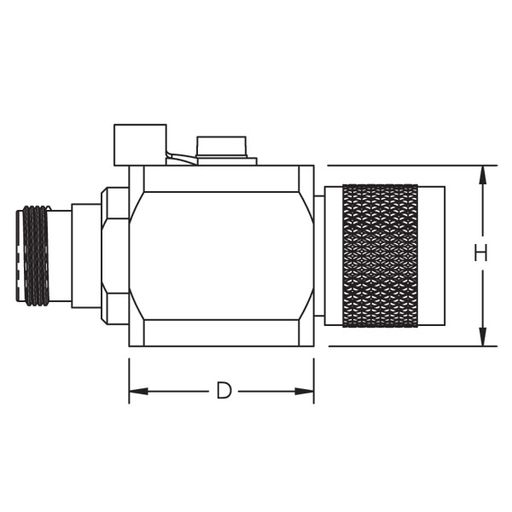

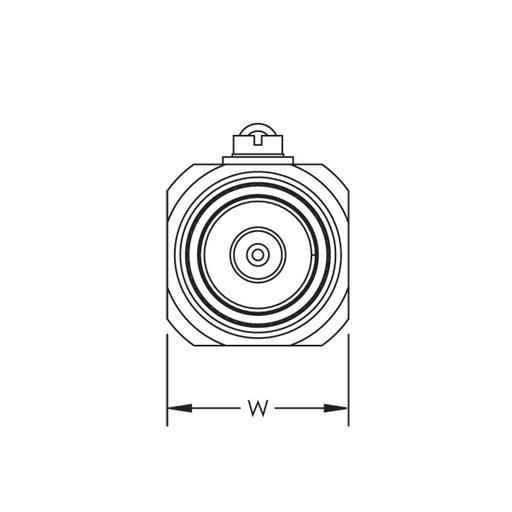

Dimensions

Depth
1 Inch
Height
0.984 Inch
Width
0.984 in

Certifications and Compliance

Certifications
CE,UL
Features
  • Simple plug-in installation
  • Supplied with mounting bracket and ground lug terminal
  • Low insertion and return loss
  • Wide operating frequency spectrum
Certifications
  • UL UL Subject 497E
