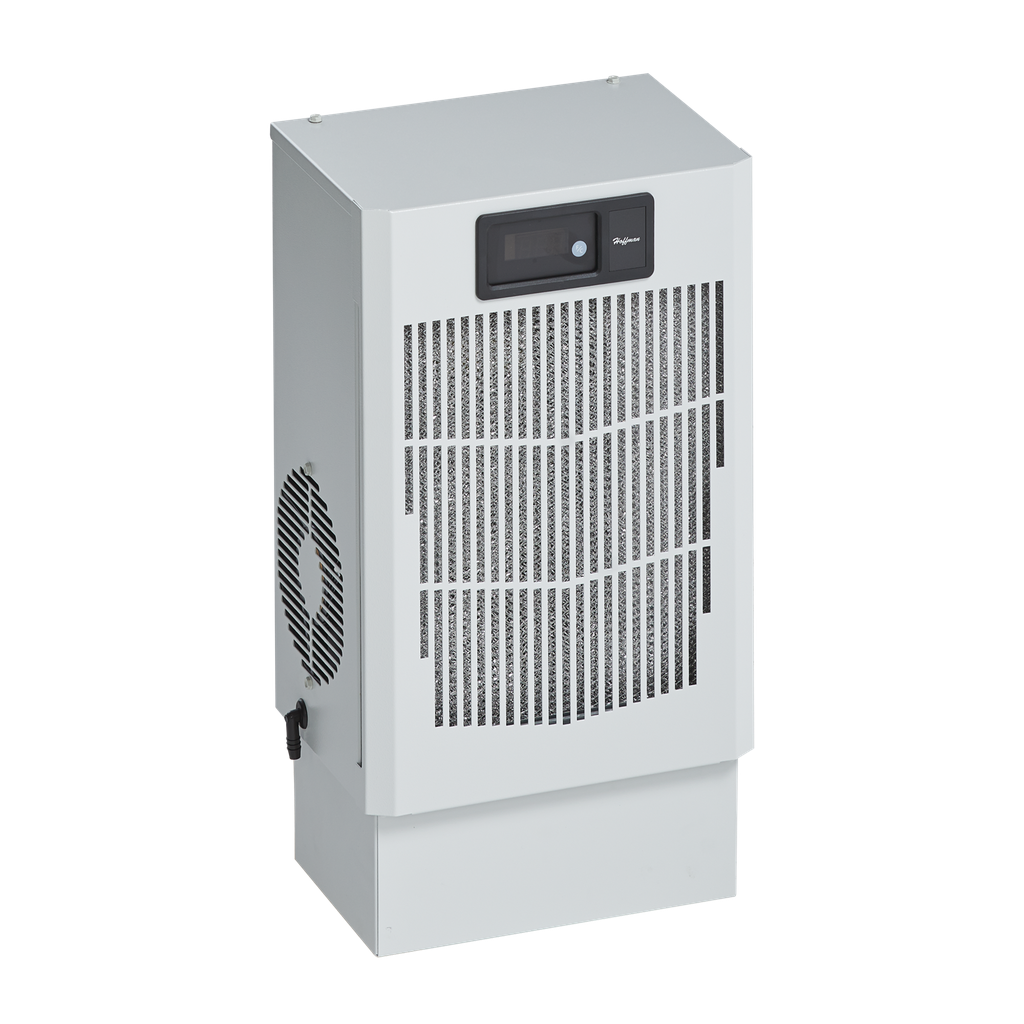

Product image for Hoffman N170246G020 1800 BTU 460V 50 60 HZ
Email

Hoffman N170246G020 1800 BTU 460V 50 60 HZ

Manufacturer: nVent Hoffman | Catalog # N170246G020 | North Coast Part # 2411807
$5,033.65/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SpectraCool Narrow Compact Indoor Air Conditioners provide a space-saving solution for low-depth cabinet needs. Narrow models are designed to fit on 12-inch (300-mm) deep floor- and wall-mount enclosures.

Technical Information

Amperage
2 Amp
Applications
Controls and Drives, Corrosive Environments, Power Distribution
BTU Hour
1800 BTU
Color Coding
RAL 7035
Material
Steel
Max Current
2.0 A
Max Temperature
125 degrees F
Min Temperature
50 degrees F
Power Rating
527 W
Temperature Rating
125 degrees F
Type
Air Conditioners
Voltage
460
Wattage
527 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Spectracool

General Product Info

12-Digit UPC
783510255862
Color
Light Gray
Finish
Powder Coated
GTiN
00783510255862
Product UPC
78351025586
Weight
60 lb

Dimensions

Depth
8.4 Inch
Height
21.13 Inch
Length
15-1/2 Inch
Thickness
1.21 mm
Width
12 in
Features
  • Narrow design accommodates 12-inch (300 mm) deep cabinets
  • Attractive industrial design with minimal use of visible fasteners
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R513A or R134a refrigerant
  • Models for 115, 230 and 400/460 VAC power input
  • Operating temperature range from 50 F/10 C to 125 F/52 C
  • Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side
  • Dust-resistant condenser coil allows the unit to be run filterless in most applications
  • Galvanized sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • All models also include active condensate management, power-off relay for door switch and other system requirements and a malfunction switch
  • Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
  • Mounting hardware, gaskets and user manual furnished with the unit
