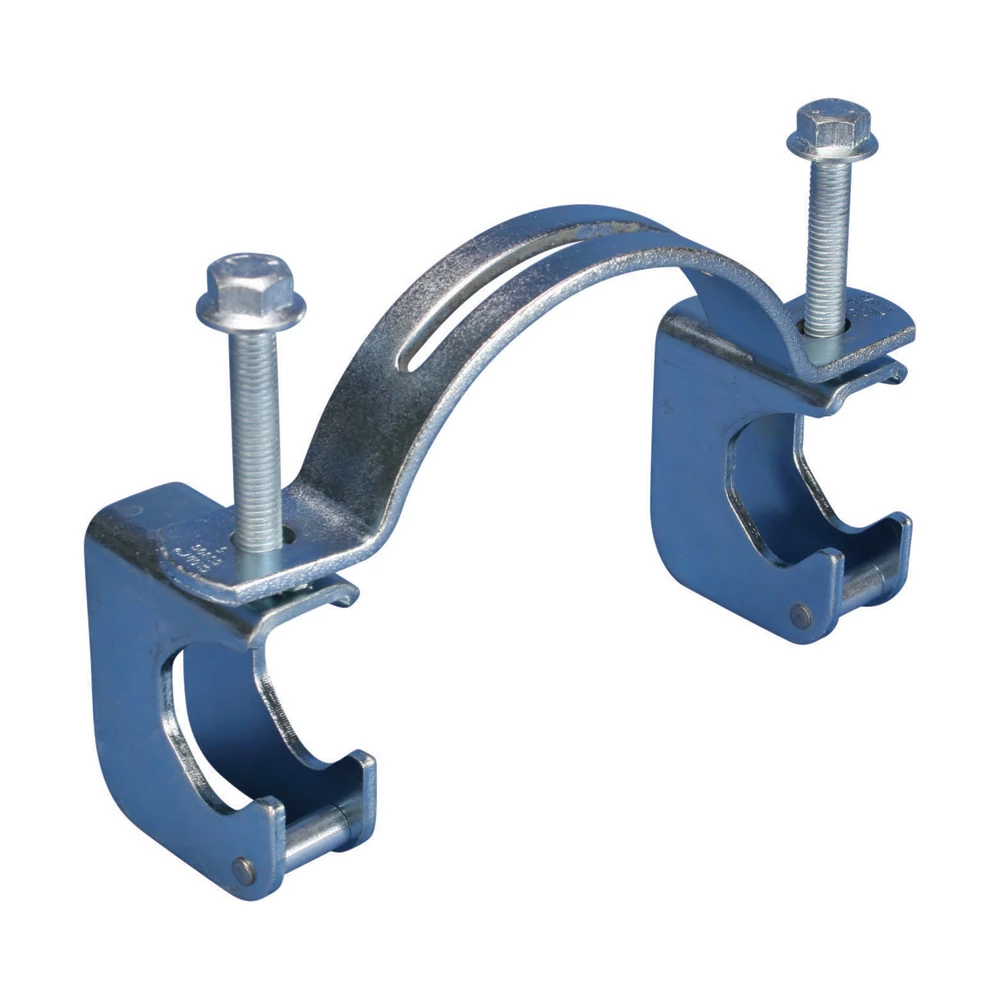

Product image for Caddy CSBQG0400EG 4" Pipe/Conduit Rigid Quick Grip Lateral Sway Brace, electrogalvanized
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Caddy CSBQG0400EG 4" Pipe/Conduit Rigid Quick Grip Lateral Sway Brace, electrogalvanized

Manufacturer: Cadweld | Catalog # CSBQG0400EG | North Coast Part # 2412539
$8,527.71/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Seismic lateral sway brace for single pipe that eliminates trips between structure and service pipe during installation. Easy install, works with 1"-1-1/4" brace pipe on 4" (100 mm) service pipe.

Technical Information

Applications
Fire Sprinkler; HVAC, Plumbing and Refrigeration; Seismic Bracing
Material
Steel
Pipe Size
4 in
Standard
CUL,FM,OSHPD,UL
Type
Quick Grip Lateral Sway Brace

Packaging

Standard Packaging Qty
10 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856710806
Finish
Electro Galvanized
GTiN
00782856710806
Product UPC
78285671080
Weight
1.54 kg

Dimensions

Height
7-1/2 Inch
Length
7-1/2 Inch
Width
8 3/4 in

Certifications and Compliance

Certifications
CULus,FM,OSHPD
Features
  • Easy two-step installation eliminates extra trips between structure and service pipe
  • Works with 1\" and 1 1/4\" (25 mm and 32 mm) brace pipes to reduce inventory
  • Yellow tips provide a visual indicator that the bolts have been properly torqued
  • Easy installation with an impact wrench from the bottom side of the clamp
  • Meets NFPA®-13 requirements for seismic sway bracing
  • Meets CEN/TS 17551:2021 requirements for Seismic Sway Bracing
Certifications
  • UL UL 203A
  • cUL ULC/ORD-C203A
  • FM Approved, Seismic FM 1950-2013
  • AON Fire Protection, Rigid Seismic NZS 4515:2009
