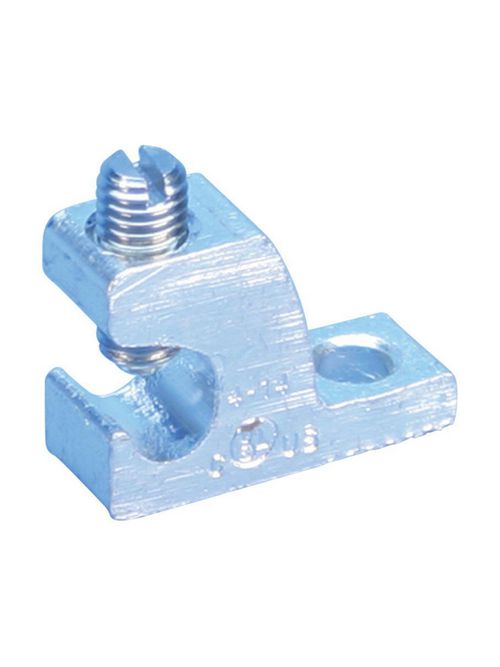

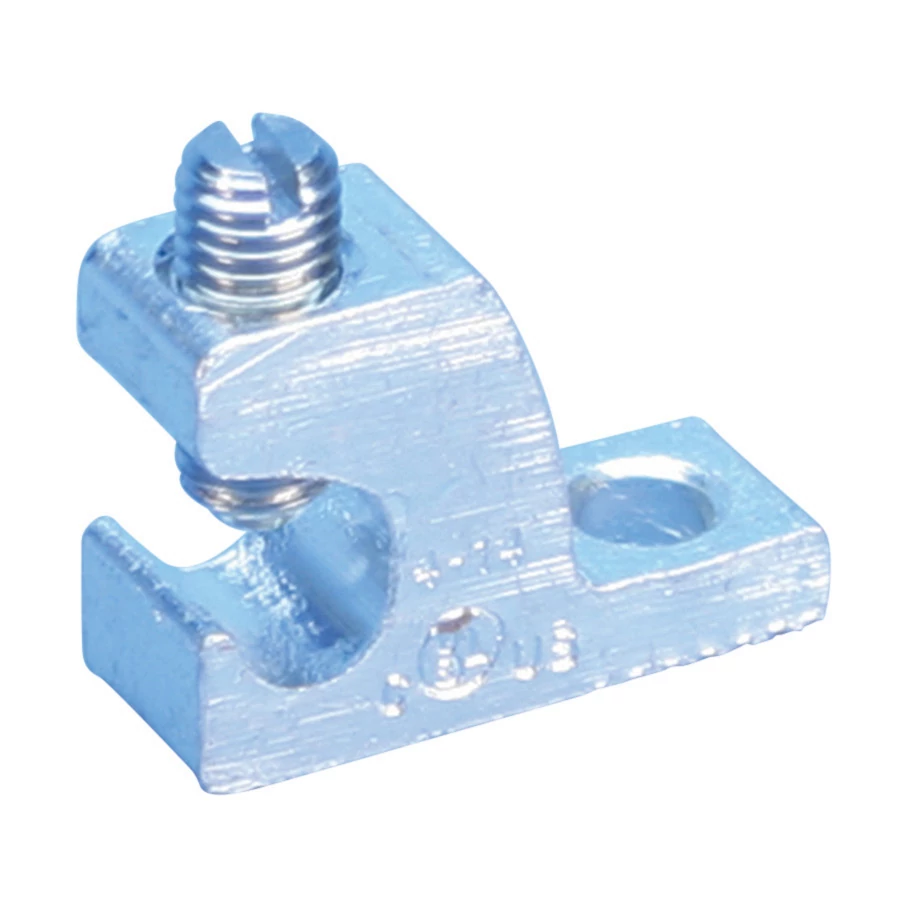

Product image for Erico EL6CADB Lay-In Lug, #14 Solid-#4 Stranded, 2.5 mm² Stranded-16 mm² Stranded
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Erico EL6CADB Lay-In Lug, #14 Solid-#4 Stranded, 2.5 mm² Stranded-16 mm² Stranded

Manufacturer: Cadweld | Catalog # EL6CADB | North Coast Part # 2412923
$10.16/ea
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Lay-In Lug, #14 Solid-#4 Stranded, 2.5 mm. Stranded-16 mm. Stranded

Technical Information

Applications
Facility Electrical Protection; Solar Power
Material
Copper
Standard
CUL,UL
Thread Size
1/4 NF
Type
Lay-In Lug

Packaging

Standard Packaging Qty
100 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856859536
Finish
Tinned
GTiN
00782856859536
Product UPC
78285685953
Weight
0.02 kg

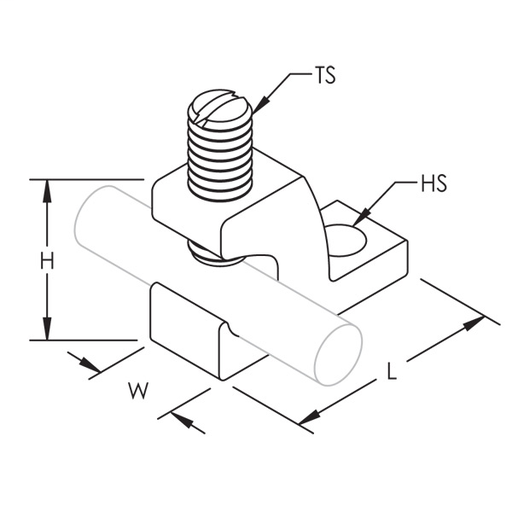

Dimensions

Height
0.76 Inch
Hole Size
0.22 in
Length
1.04 Inch
Width
0.39 in

Certifications and Compliance

Certifications
CULus
Certifications
  • cUL CSA C22.2 No. 41
  • UL ANSI/UL 467
Features
  • Often used in solar bonding lug applications
  • Lay-in features allows for easy positioning
  • Set screw hardware made of 304 stainless steel
