NVENT HOF FS201286DSP0 Dual Access

Manufacturer: nVent Hoffman | Catalog # FS201286DSP0 | North Coast Part # 2412945
$37,590.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

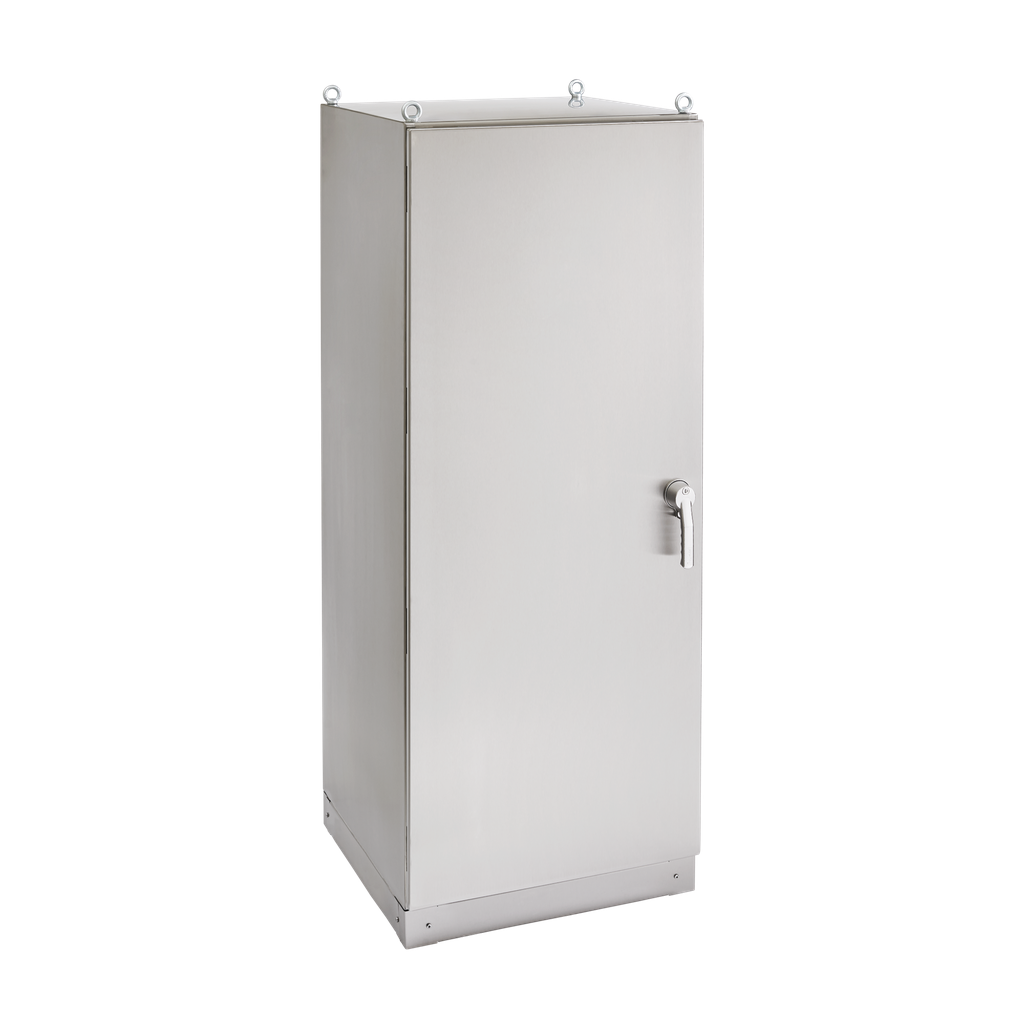

FS66S is used in harsh environments for components such as motor starters, drives, contactors and PLCs. This FS66S Freestand Dual Access 3Pt Latch 4X 14g, FS201286DSP0 item measures 2078x1216x813mmmm with a material of SS316 finish Brushed.

Technical Information

Applications
Hygienic Environments; Controls and Drives; Corrosive Environments
Material
Stainless Steel
Size
2078x1216x813mm
Type
Stainless Steel Freestanding Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510271053
Color
Unpainted
Finish
Brushed
GTiN
00783510271053
Product UPC
78351027105
Weight
541 lb

Dimensions

Depth
32.02 Inch
Height
81.79 Inch
Length
54 Inch
Thickness
1.98 mm
Width
47.00 in
Features
  • Internal grid mounting system and ProLine frame compatible for easy and fast panel installation
  • Enclosure with contents to support Standard duty 500Kg (1102 lb.) evenly distributed and Heavy duty 1000Kg (2205 lb.) evenly distributed
  • Uni-body design with seams continuously welded and ground smooth
  • Two-door enclosures provided with a removable center-post for easy panel installation
  • Heavy-duty stainless steel lifting eyes
  • Heavy-duty three-point latching mechanism operated by 316L stainless steel PowerGlide padlocking handle
  • Seamless foam-in-place gasket assures a water-tight and dust-tight seal
  • Body flange trough collar channels liquids and contaminants away from door opening and installed equipment
  • Removable hidden hinges
  • Built-in plinth base that allows for flexible cable entry
  • Gland plate on the bottom offers cable entry options
  • Painted or galvanized back panels can be rear-mounted in single-access enclosures and back-to-back in dual access enclosures
  • Bonding provision on door
  • Three-point latching and sealing provide industry-leading protection from dust, oil and water
