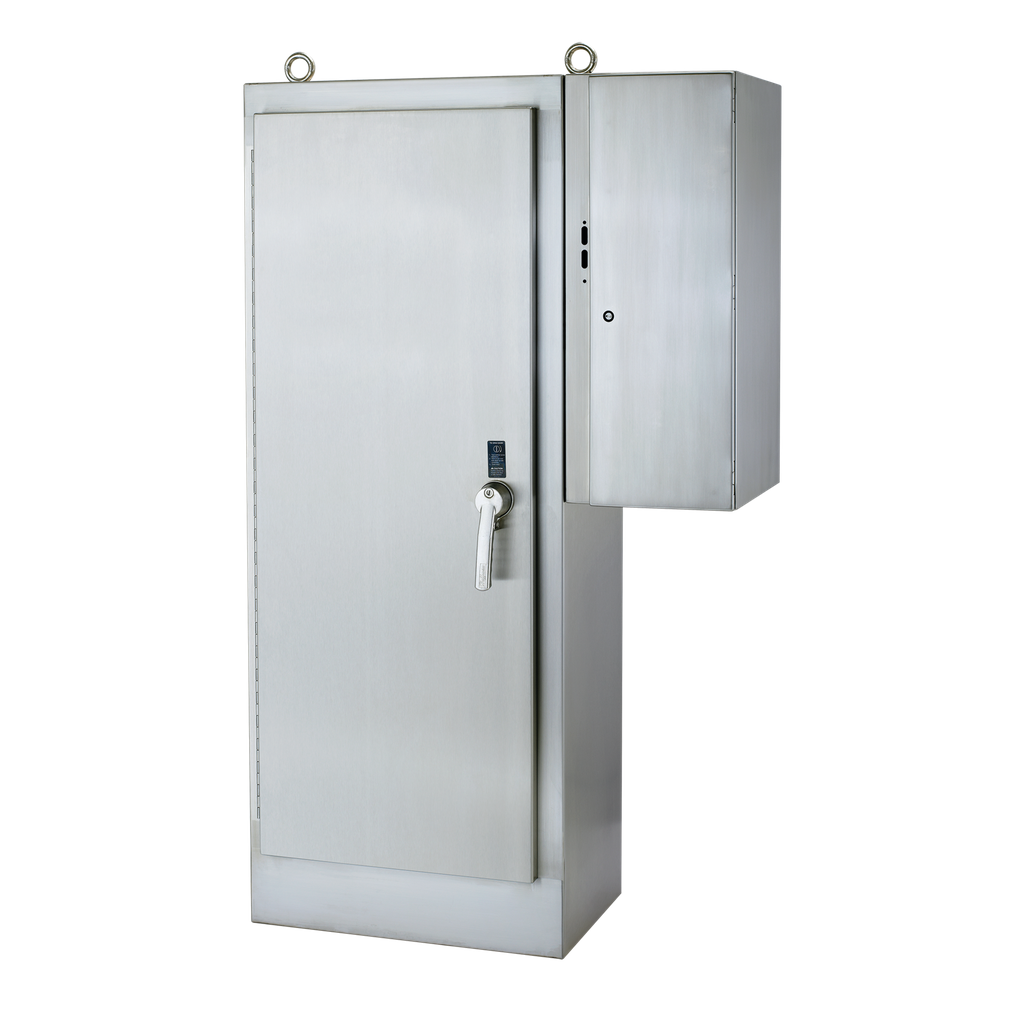

Product image for NVENT HOF A90XD7818SSFTCLP 90x78x18
Email

NVENT HOF A90XD7818SSFTCLP 90x78x18

Manufacturer: nVent Hoffman | Catalog # A90XD7818SSFTCLP | North Coast Part # 2412954
$64,953.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Sequestr, External Disconnect enclosures package mitigates arc-flash occurrences. This Sequestr External Disconnect Package 2-Door Type 4X, A90XD7818SSFTCLP item measures 90x78x18in with material of SS304 finish Brushed.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Corrosive Environments
Material
Stainless Steel
Size
90.12 x 78.5 x 18.12 in
Type
SEQUESTR Preferred Cutout Disconnects

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Sequestr

General Product Info

12-Digit UPC
783510279455
Finish
Brushed
GTiN
00783510279455
Product UPC
78351027945
Weight
1,170 lb

Dimensions

Depth
18.12 Inch
Height
100 Inch
Length
85 Inch
Thickness
1.98 mm
Width
36.00 in
Features
  • Package includes a main enclosure and a Sequestr box.
  • Main enclosure 12 gauge Type 304 stainless steel
  • Sequestr enclosure is 14 gauge Type 304 stainless steel
  • Seams continuously welded and ground smooth
  • Interlocks doors of main control cabinet when disconnect switch is powered ON
  • Mechanical interlock on main control enclosure activated by master door, preventing slave door from being opened first
  • Provision for pass-through power into the main enclosure
  • Preferred Disconnect cutout
  • Quarter-turn, screwdriver slot latch on Sequestr Enclosure
  • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors
  • Concealed, easy-to-remove hinges
  • Grounding studs on body
  • Bonding provision on door
  • Conductive back panel included in Sequestr External Disconnect Enclosure
  • Optional back panel for main control cabinet for maximum ordering flexibility
  • Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
