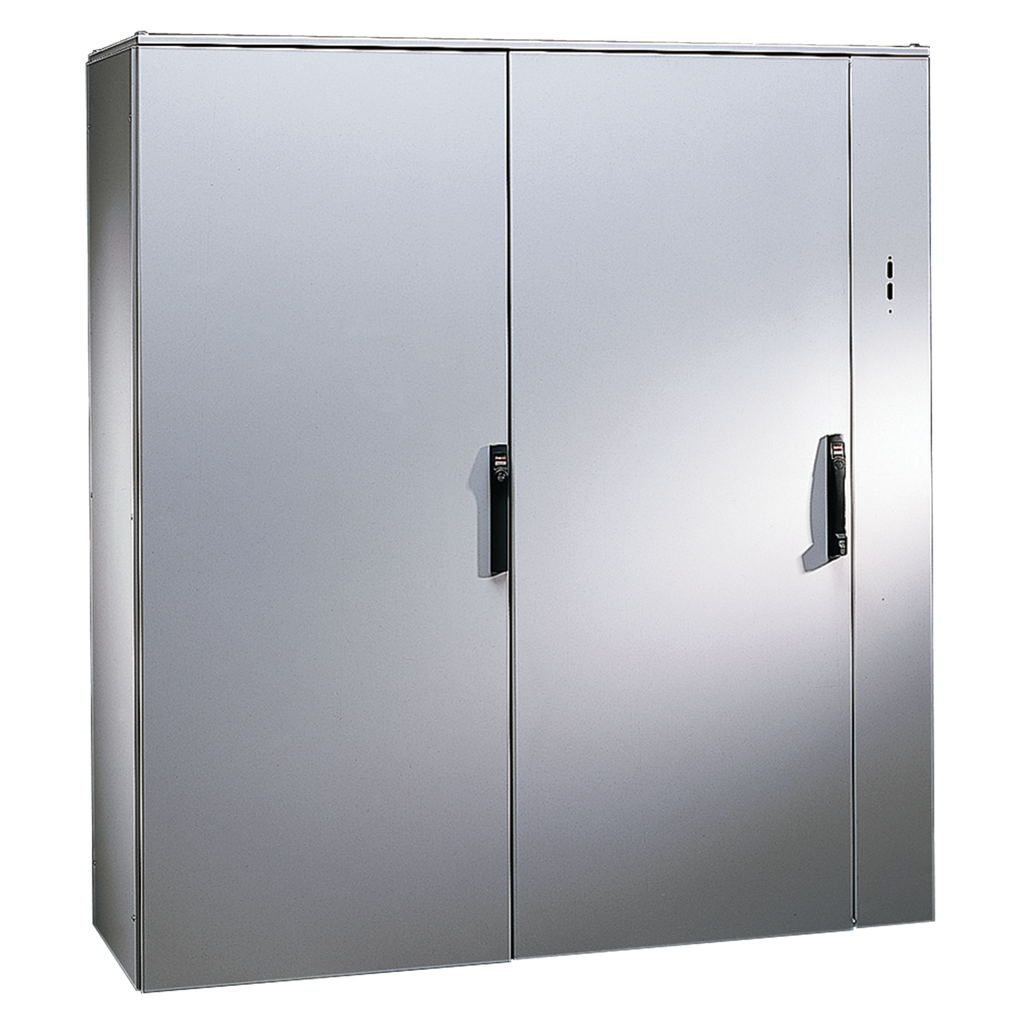

Product image for NVENT HOF PTDDC16126 Ind Pkg 1600x1
Email

NVENT HOF PTDDC16126 Ind Pkg 1600x1

Manufacturer: nVent Hoffman | Catalog # PTDDC16126 | North Coast Part # 2413272
$9,647.41/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine Disconnect Packages are ready-to-use enclosures offering flange-mount disconnect solutions. This ProLine-DD Disconnect Enclosure Type 12, PTDDC16126 item measures 1600x1200x600mm with material of Steel colored Lt Gray.

Technical Information

Applications
Arc Flash Safety; Controls and Drives
Color Coding
RAL 7035
Material
Steel
Type
Mild Steel Modular Industrial Disconnect Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510298685
Color
Gray
Finish
Powder Coated
GTiN
00783510298685
Product UPC
78351029868
Weight
246 lb

Dimensions

Depth
23.62 Inch
Height
62.99 Inch
Length
54 Inch
Thickness
1.9 mm
Width
30.50 in
Features
  • Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
  • Standard door bars increase strength and rigidity and allow for an extra mounting options
  • Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
  • Gasket and latching system together ensure a solid seal with low closure force
  • Mullion door is hinged on the right, with primary and secondary doors hinged on the left
  • Galvanized mounting plate in 3.0mm steel supplied standard
  • Capped ground studs on door, rear and top panel
  • Integral frame channels support the full weight of the mounting plates
  • Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
  • Door thickness 14 gauge/2.0 mm, carbon steel powder painted for details please check reference tables
  • Rear panel(s) and solid top 1.5 mm, carbon steel powder painted; RAL 7035
  • Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
