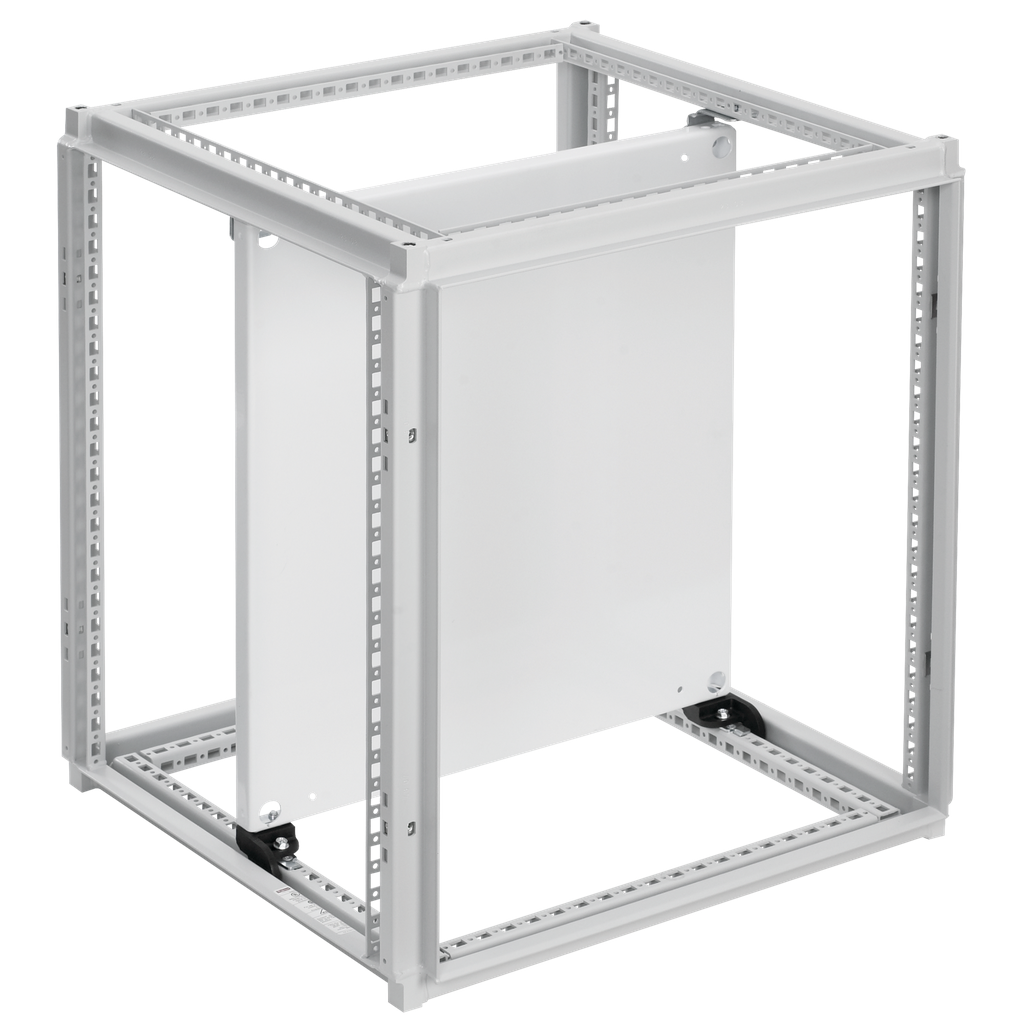

NVENT HOF PPF1818G Proline SubPanel

Manufacturer: nVent Hoffman | Catalog # PPF1818G | North Coast Part # 2413285
$957.41/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
ProLine subpanels are designed to provide maximum panel depth, panel size and ease of installation. Full subpanels slide into the frame on nylon glide blocks, which support the entire weight of the subpanel.

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Steel
Size
70.87 x 70.87 in
Type
Mounting Subpanels and Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510298463
Finish
Galvanized
GTiN
00783510298463
Product UPC
78351029846
Weight
190.2 lb

Dimensions

Height
2 Inch
Length
70 Inch
Thickness
3.04 mm
Width
72.00 in
Features
  • All necessary mounting hardware is included
  • Subpanels have flanges on all sides
  • Subpanels can be mounted at nearly any depth in 25-mm increments
  • Panels installed in the rearmost position in joined (ganged) enclosures provide a continuous mounting surface without requiring joining panels
  • Mounting hardware attaches to the top or to the sides of the frame
  • Subpanels are 12 gauge (2.5 mm); Double-bay subpanels are 11 gauge (3.0 mm) for all frames 1400mm in height or greater
  • Subpanels are available standard in either conductive or white painted finish
  • Additional Mounting Hardware (PMKPF) for securing panel to frame in the center of the subpanel is sold separately
