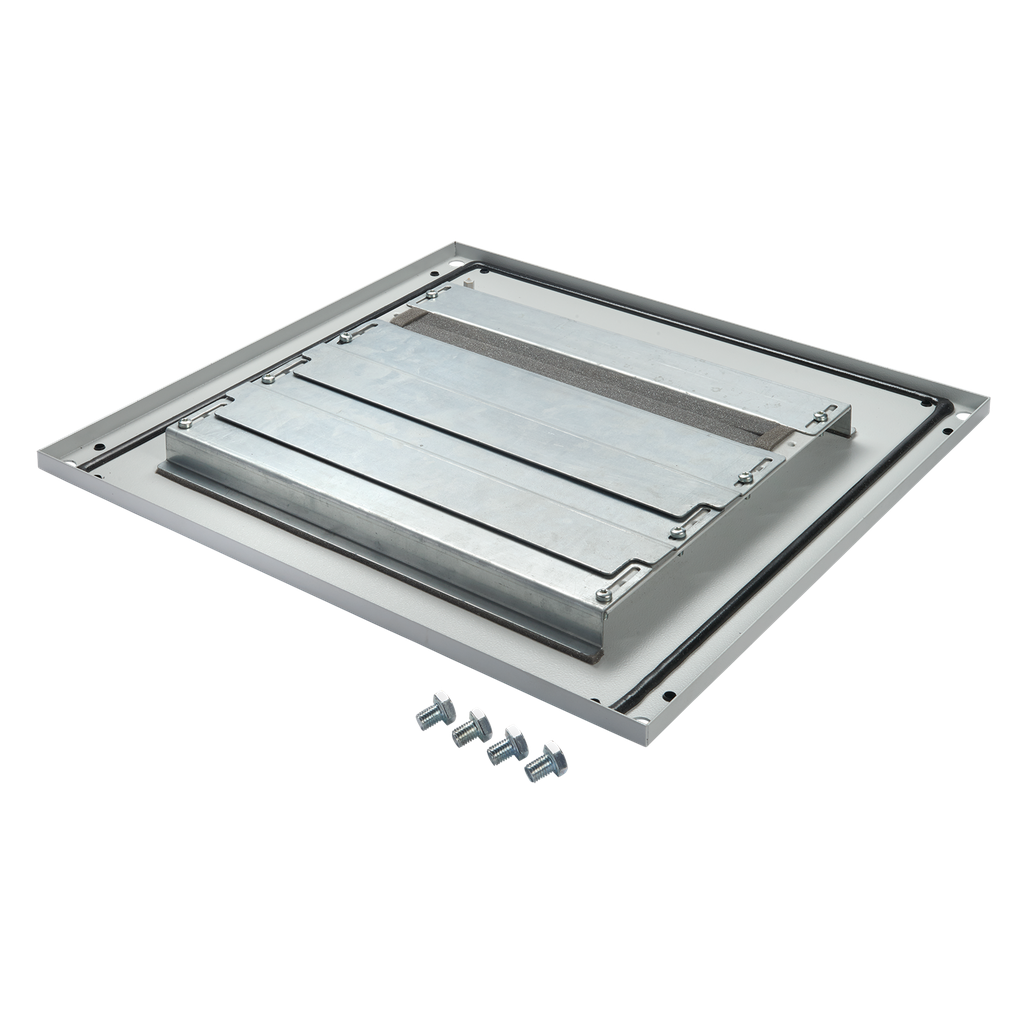

Product image for Hoffman P2BGP166 PROLINE G2 Gland Plates, fits 1600x 600mm, Lt Gray, Steel
Email

Hoffman P2BGP166 PROLINE G2 Gland Plates, fits 1600x 600mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # P2BGP166 | North Coast Part # 2413535
$372.44/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Gland plates are used with a plinth base to provide cable management solutions while maintaining a NEMA 12 rating. ProLine G2's unique Duro-Stand Gland Plate was designed to bear the weight of a person, making it easier to work on the enclosure when the gland plate is installed.

Technical Information

Applications
For Controls and Drives, Power Distribution
Color Coding
RAL 7035
Material
Steel
Type
Bases and Base Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine G2

General Product Info

12-Digit UPC
783510309954
Color
Gray
Finish
Powder Coated
GTiN
00783510309954
Product UPC
78351030995
Used With
1600 x 600 mm Frame
Weight
50 lb

Dimensions

Height
3 Inch
Length
65 Inch
Thickness
1.9 mm
Width
25.00 in
Features
  • Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
  • Sturdy, adjustable gland plates designed to bear the weight of a person
  • Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
  • Galvanized or painted versions
  • Sealed to maintain NEMA Type 12 rating
  • Gland Plates are finished with paint over plated surfaces
  • Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
  • Can be used without a base if casters, levelers or frame feet are installed
  • Can be rotated 180 degrees for front or rear cable entry
  • Installation hardware included
  • Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
