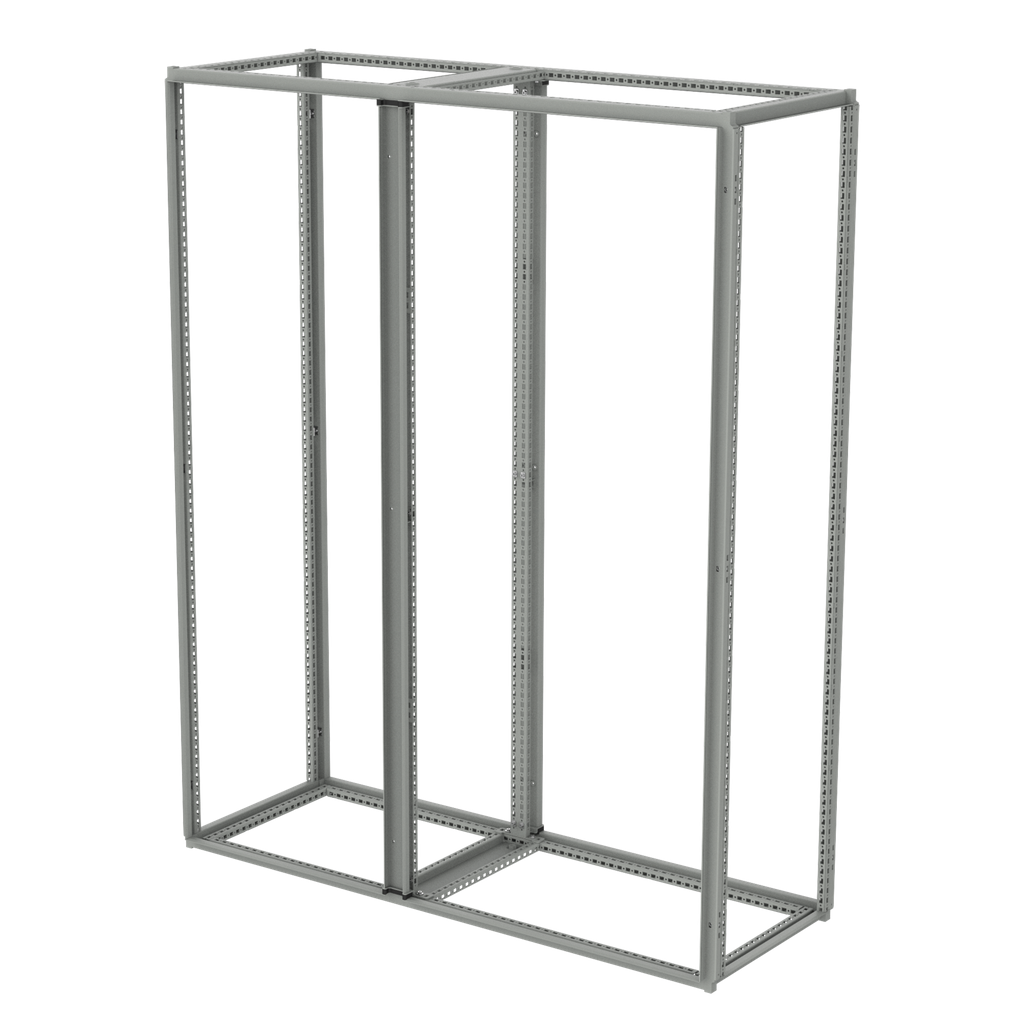

Product image for NVENT HOF P2FD18124 FRAME 1800x1200
Email

NVENT HOF P2FD18124 FRAME 1800x1200

Manufacturer: nVent Hoffman | Catalog # P2FD18124 | North Coast Part # 2413665
$3,353.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine G2 Disconnect Frames can be used with ProLine G2 Disconnect Doors and Disconnect components to configure a custom Disconnect Enclosure Solution from standard modular enclosure components.

Technical Information

Applications
For Arc Flash Safety, Controls and Drives, Power Distribution
Color Coding
RAL 7035
Material
Steel
Size
1200 mm W x 1800 mm H x 400 mm D
Type
Frame Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine G2

General Product Info

12-Digit UPC
783510318215
Color
RAL 7035 Light Gray
Finish
Powder Coated/Painted
GTiN
00783510318215
Product UPC
78351031821
Used With
Enclosure
Weight
545 lb

Dimensions

Height
84 Inch
Length
30 Inch
Thickness
2.66 mm
Width
75.00 in
Features
  • 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • RAL 7035 textured light-gray polyester powder paint finish
  • Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
  • Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
  • Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame
