Product image for NVENT HOF P2D205 SOLID DOOR 2000x50
Email

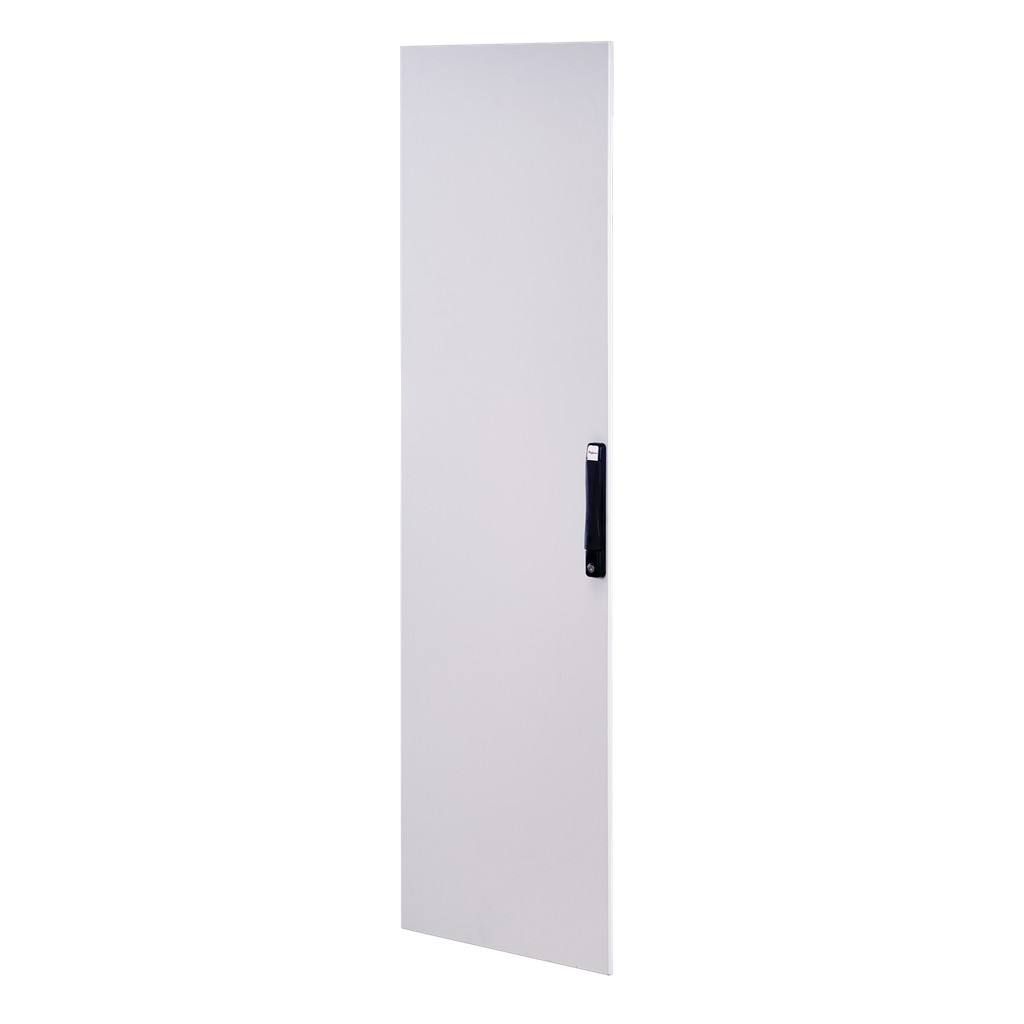

NVENT HOF P2D205 SOLID DOOR 2000x50

Manufacturer: nVent Hoffman | Catalog # P2D205 | North Coast Part # 2413762
$683.36/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action ensuring a solid door seal with a low closure force. Sold individually.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Type
Doors and Door Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510329860
Color
Gray
Finish
Powder Coated
GTiN
00783510329860
Product UPC
78351032986
Weight
44 lb

Dimensions

Height
3 Inch
Length
79 Inch
Thickness
1.9 mm
Width
20.50 in
Features
  • Smooth Glide latching system for a smooth, reliable and repeatable door close over enclosure lifetime
  • Low-profile Swing Handle with key lock; other options available
  • Seamless polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants
  • Single doors available for frames up to 1000 mm wide
  • Overlapping double doors available for frames 800 mm wide and greater
  • Door bar system on all doors
  • Timed latch engagement to ensure top and bottom of door catch reliably
  • Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
  • 3-point latch system for doors ? 1000 mm in height
  • Key lock handle standard; other options available
  • Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
  • Solid Doors are finished with paint over plated surfaces
  • 140-degree hinging standard (180-degree hinge option available)
  • Door can be reversed without removing the side covers
  • Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
  • Two grounding studs
  • All mounting hardware included
  • Sold individually
  • Overlapping Double Doors Additional Specifications: Primary door with Smooth Glide latching system; Secondary door has two latch points with a center lever to ensure secure door closure
