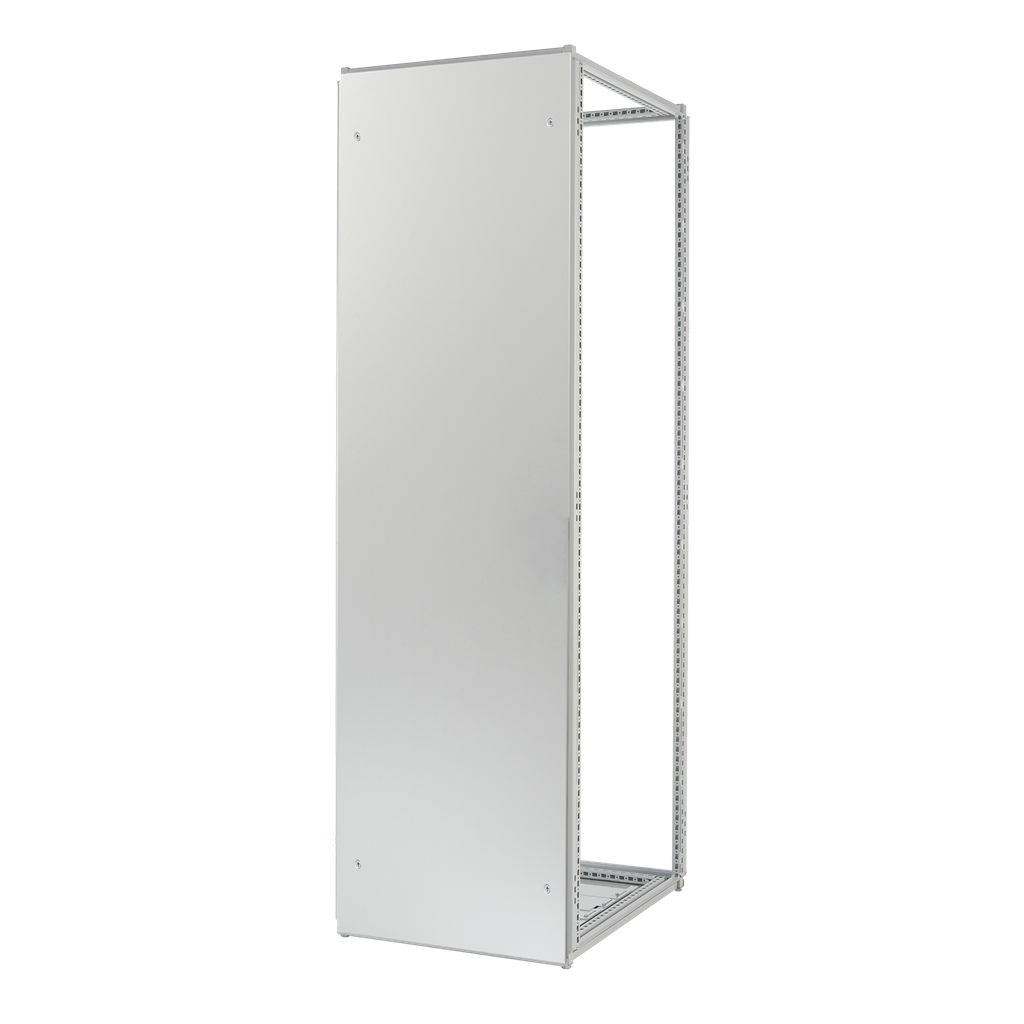

Product image for NVENT HOF P2C106 BACK OR FRONT COVE
Email

NVENT HOF P2C106 BACK OR FRONT COVE

Manufacturer: nVent Hoffman | Catalog # P2C106 | North Coast Part # 2413815
$284.47/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine G2 Solid Sides enclose the open sides of the modular enclosure frame and have innovative design elements incorporated to ensure fast installation and enhanced structural support.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Type
External Mounting for ProLine Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510311889
Color
Gray
Finish
Powder Coated
GTiN
00783510311889
Product UPC
78351031188
Weight
22 lb

Dimensions

Depth
0.79 Inch
Height
2 Inch
Length
42-1/2 Inch
Thickness
1.52 mm
Width
23.5 in
Features
  • Hinge hanger on top for easy alignment
  • Formed steel hems on the sides of the covers for enhanced structural support and to protect user from sharp edges
  • Seamless polyurethane gasket (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
  • Attach to enclosure frame with low-profile, flat head screws
  • Door can be reversed without removing the side covers
  • Used on the sides of the ProLine G2 frame
  • Not suitable as a barrier between enclosures (instead use the ProLine G2 barrier panel)
  • Two grounding studs
  • All mounting hardware included
  • Solid Covers are finished with paint over plated surfaces
