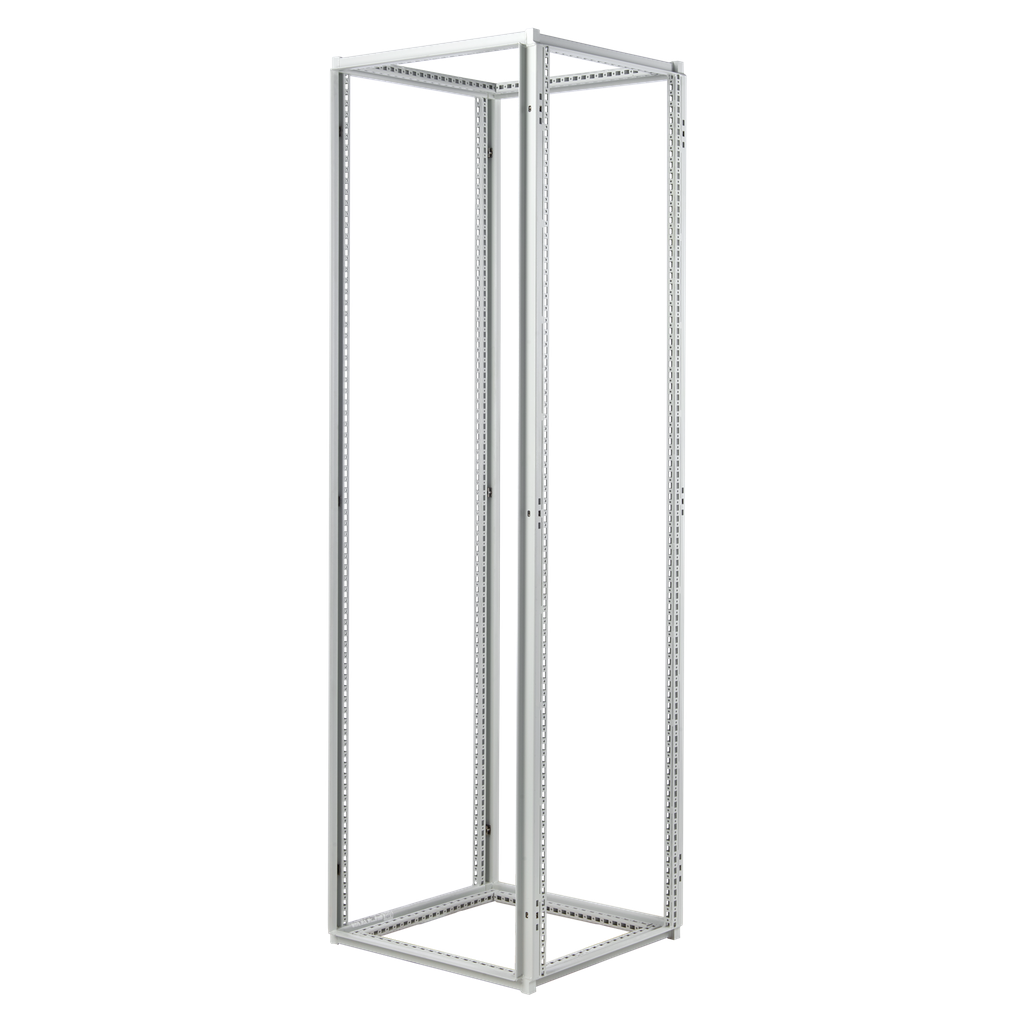

NVENT HOF P2F1286 FRAME 1200x800x60

Manufacturer: nVent Hoffman | Catalog # P2F1286 | North Coast Part # 2413847
$1,365.67/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The ProLine G2 frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to withstand heavier load requirements and to maintain a solid square structure - a solid foundation for the electrical enclosure.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Type
Frame Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510316730
Color
Gray
Finish
Powder Coated
GTiN
00783510316730
Product UPC
78351031673
Weight
104 lb

Dimensions

Height
55 Inch
Length
38 Inch
Thickness
2.66 mm
Width
30.00 in
Features
  • 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
  • RAL 7035 textured light-gray polyester powder paint finish
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
  • Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
  • Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
  • Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
  • Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
  • Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
