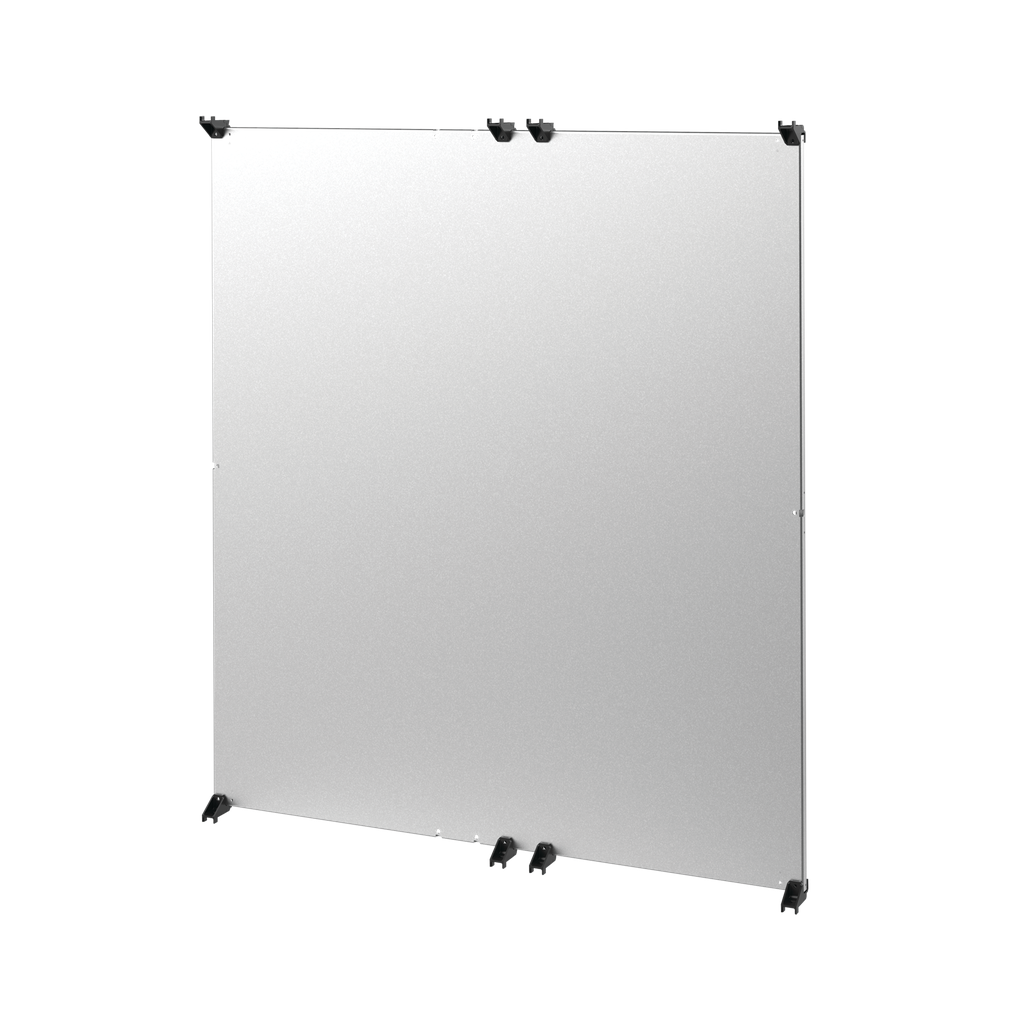

Product image for NVENT HOF P2PD2018G FULL SUBPANEL 2
Email

NVENT HOF P2PD2018G FULL SUBPANEL 2

Manufacturer: nVent Hoffman | Catalog # P2PD2018G | North Coast Part # 2413921
$763.76/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine G2 Disconnect Components are used with ProLine G2 Disconnect Frames and Doors to configure a custom Disconnect Enclosure Solution for widths >1000 mm wide. These components are identical to the standard ProLine G2 components (i.e. ProLine G2 Solid Tops, Gland Plates, Mounting Subpanel) with the exception that the center support is offset 100mm (to accommodate the hinged mullion).

Technical Information

Applications
For Arc Flash Safety, Controls and Drives
Material
Steel
Type
Non-Reversing

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510324780
Finish
Galvanized
GTiN
00783510324780
Product UPC
78351032478
Used With
1800 mm W x 2000 mm H Frames
Weight
218 lb

Dimensions

Depth
10 ga
Height
75 Inch
Length
74-3/4 Inch
Thickness
3.4 mm
Width
75 in
Features
  • Disconnect specific mounting subpanels are required for frames greater than 1000mm in width; any width 1000mm or less uses a standard mounting subpanel
  • 10 gauge (3.0 mm) mild steel; conductive plated option only
  • Includes eight sets of EZ-Load Glide Blocks, BV-M6 and Hex Bolts for securing
  • Similar in construction and function to the standard mounting subpanel, but with 100mm offset mounting holes near the middle of the subpanel, due to the presence of the disconnect mullion door in the enclosure solution
  • Disconnect mounting subpanel comes standard with Disconnect Package
