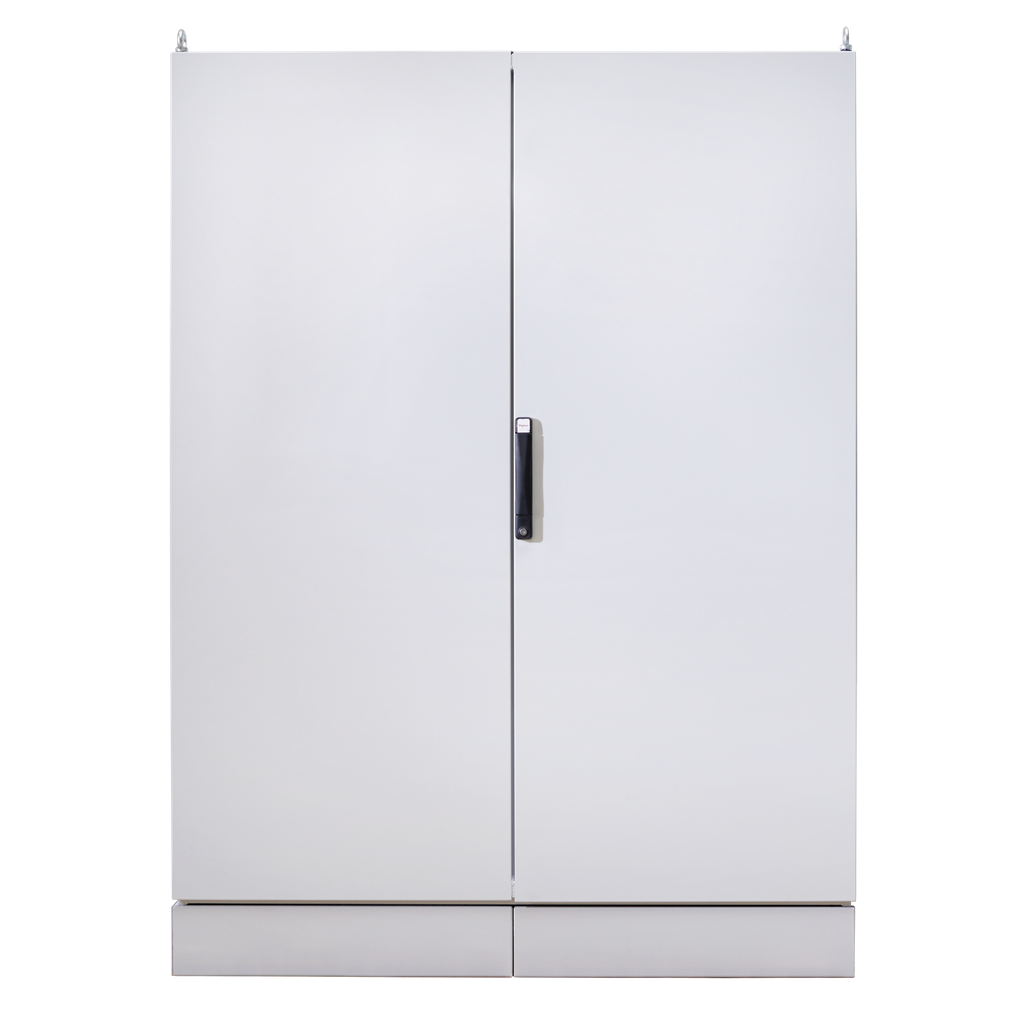

Product image for NVENT HOF P2DO168 OVERLAPPING DOOR
Email

NVENT HOF P2DO168 OVERLAPPING DOOR

Manufacturer: nVent Hoffman | Catalog # P2DO168 | North Coast Part # 2414003
$1,192.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine G2 Solid Doors (Single or Overlapping Double) feature a solid swing and a high load capacity. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action ensuring a solid door seal with a low closure force. Sold individually.

Technical Information

Applications
For Controls and Drives, Power Distributions
Color Coding
RAL 7035
Material
Steel
Type
Double, Overlapping

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine G2

General Product Info

12-Digit UPC
783510315276
Color
Gray
Finish
Powder Coated
GTiN
00783510315276
Product UPC
78351031527
Used With
800 mm W x 1600 mm H Frames
Weight
82 lb

Dimensions

Height
6-1/4 Inch
Length
70 Inch
Thickness
1.9 mm
Width
19.00 in
Features
  • Smooth Glide latching system for a smooth, reliable and repeatable door close over enclosure lifetime
  • Low-profile Swing Handle with key lock; other options available
  • Seamless polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants
  • Single doors available for frames up to 1000 mm wide
  • Overlapping double doors available for frames 800 mm wide and greater
  • Door bar system on all doors
  • Timed latch engagement to ensure top and bottom of door catch reliably
  • Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
  • 3-point latch system for doors ? 1000 mm in height
  • Key lock handle standard; other options available
  • Single doors can be hinged on left or right (default left); overlapping double doors can have the primary door as the left or right door (default right)
  • Solid Doors are finished with paint over plated surfaces
  • 140-degree hinging standard (180-degree hinge option available)
  • Door can be reversed without removing the side covers
  • Can be used on front or rear of enclosure; can be used on the sides of enclosure with side door adapter (not included)
  • Two grounding studs
  • All mounting hardware included
  • Sold individually
  • Overlapping Double Doors Additional Specifications: Primary door with Smooth Glide latching system; Secondary door has two latch points with a center lever to ensure secure door closure
