Hoffman P2GV3R20 PROLINE G2 Grid Network/Rail System, 2000mm, Steel

Manufacturer: nVent Hoffman | Catalog # P2GV3R20 | North Coast Part # 2414135
$271.91/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

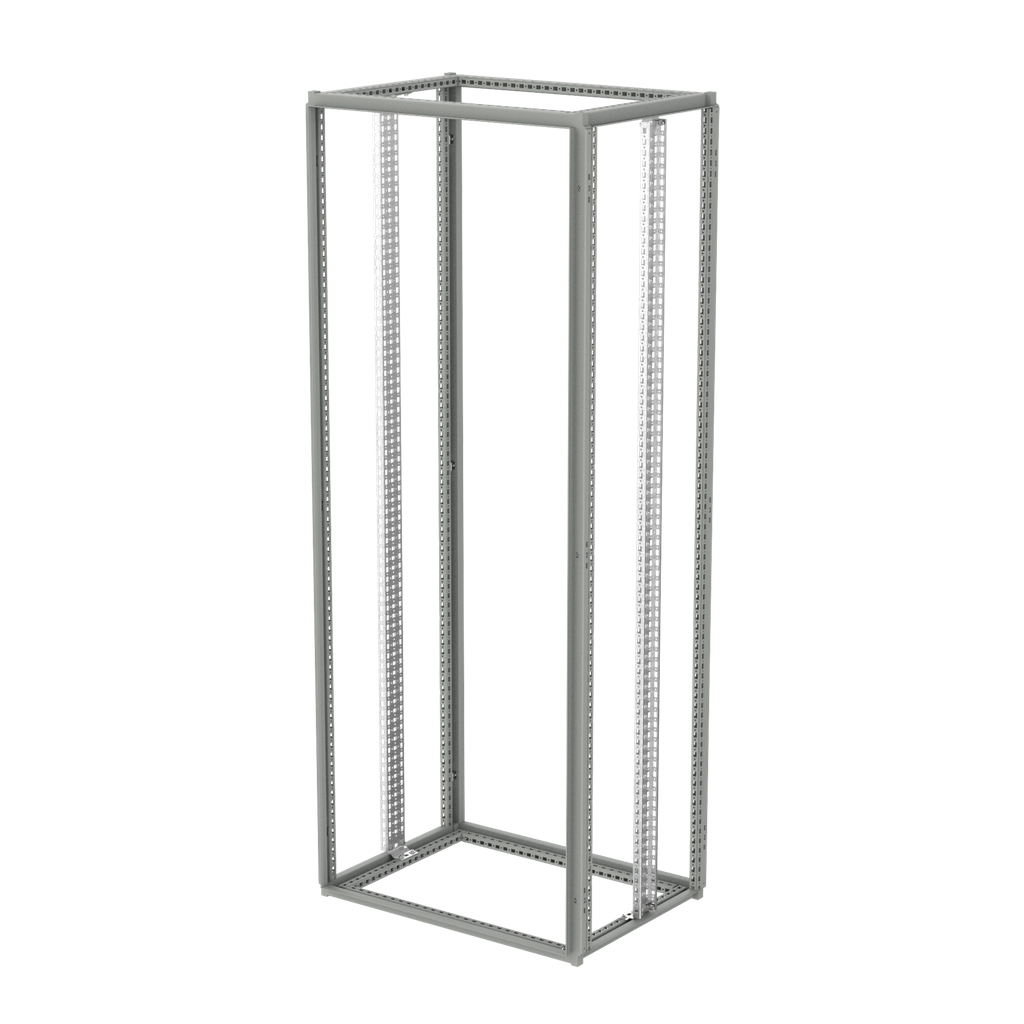

ProLine G2 Grid Straps can be used to create a mounting or support network within the frame. The Grid Straps are furnished in pairs and available in three designs: full-height vertical, horizontal with mounting brackets, and single-piece horizontal with integrated tabs. Horizontal Grid Straps can be mounted front-to-back between frame verticals (depth-mounted), side-to-side between frame verticals or depth-mounted Grid Straps (width-mounted), or even vertically between Grid Straps. Vertical Grid Straps are used to span the full height of an enclosure.

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Steel
Type
Rack and Grid/Rail System

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510319137
Finish
Galvanized
GTiN
00783510319137
Product UPC
78351031913
Weight
15.5 lb

Dimensions

Height
5-1/2 Inch
Length
86-1/4 Inch
Thickness
1.9 mm
Width
5.50 in
Features
  • Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
  • Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
  • Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
  • Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
  • Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be mounted vertically between other Grid Straps, as the assembly is on a single plane
  • Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid Straps, as the jogged tab introduces a second plane which may interfere with cover installation on the sides
  • Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
