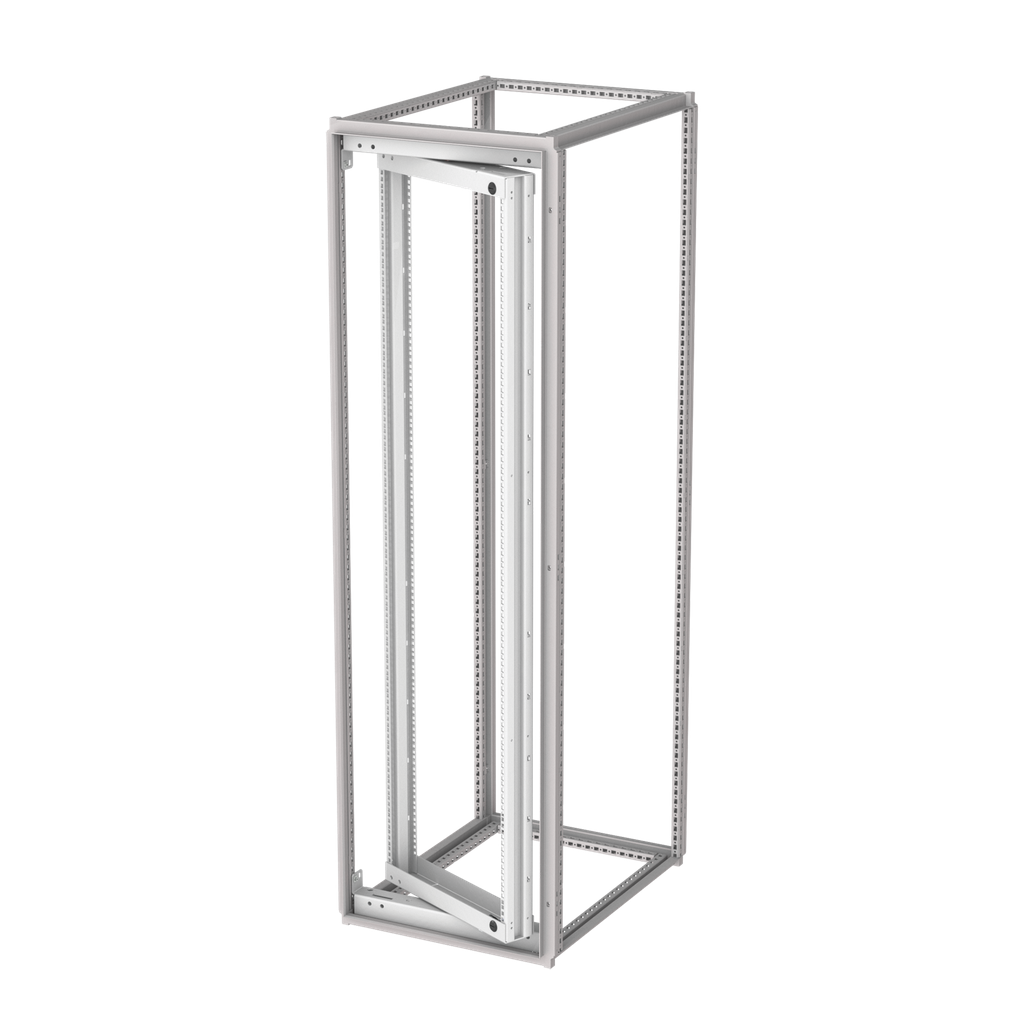

Product image for Hoffman P2RSFH228 PROLINE G2 Heavy-Duty Swing-Out Rack Frame, fits 2200x 800mm, Lt Gray, Steel
Email

Hoffman P2RSFH228 PROLINE G2 Heavy-Duty Swing-Out Rack Frame, fits 2200x 800mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # P2RSFH228 | North Coast Part # 2414192
$1,311.72/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The ProLine G2 Heavy-Duty Swing-Out Rack Frame allows 19-in. rack equipment or rack panels to pivot for better accessibility. New center pivot option allows 350-degree rotation with a 400 lb. (181 kg) load rating. Left or right offset option allows the frame to pivot out of the enclosure and is capable of 140-degree rotation. Hinges that provide 170-degree rotation are an optional accessory.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Rack Unit
43
Type
PROLINE Swing-Out Rack Frames and Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510330286
Color
Gray
Finish
Powder Coated
GTiN
00783510330286
Product UPC
78351033028
Weight
62 lb

Dimensions

Height
4-1/2 Inch
Length
81-1/4 Inch
Thickness
2.66 mm
Width
20.50 in
Features
  • Three pivot options for maximum flexibility (center, left, right)
  • Complies with ANSI/EI A RS-310-D rack-mounting standards
  • Mounts to inside of frame at any vertical location; can be located at any depth using grid straps/rail system; deeper mounting affects the degree of opening of swing-out frame
  • Rack Frames are available for 600- and 800-mm wide enclosure frames; for 600-mm wide enclosures, the rack frame uses the full width; for 800-mm wide enclosures, there is 200-mm extra width and the rack frame can be installed on either side or in the center
  • Can be installed in right, left or both bays of 1200-mm wide frames using center uprights; frame reducing brackets may also be used to accommodate a variety of frame widths
  • Center pivot option allows 350-degree rotation; left or right offset option allows 140-degree rotation and swings frame partially out of outer frame; optional hinges allow 170-degree rotation and swing frame completely out of outer frame
  • Has cutouts to mount Frame Tie-Down Brackets (not included) for cable management
  • Full-height swing-out rack frames are mounted to the top and bottom of the enclosure frame; smaller swing-out rack frames can be mounted to the vertical frame members or to the grid straps (order separately)
  • Furnished with quarter-turn latch, mounting hardware and mounting brackets
  • Mounting holes accommodate either English or metric cage nuts, which are ordered separately
