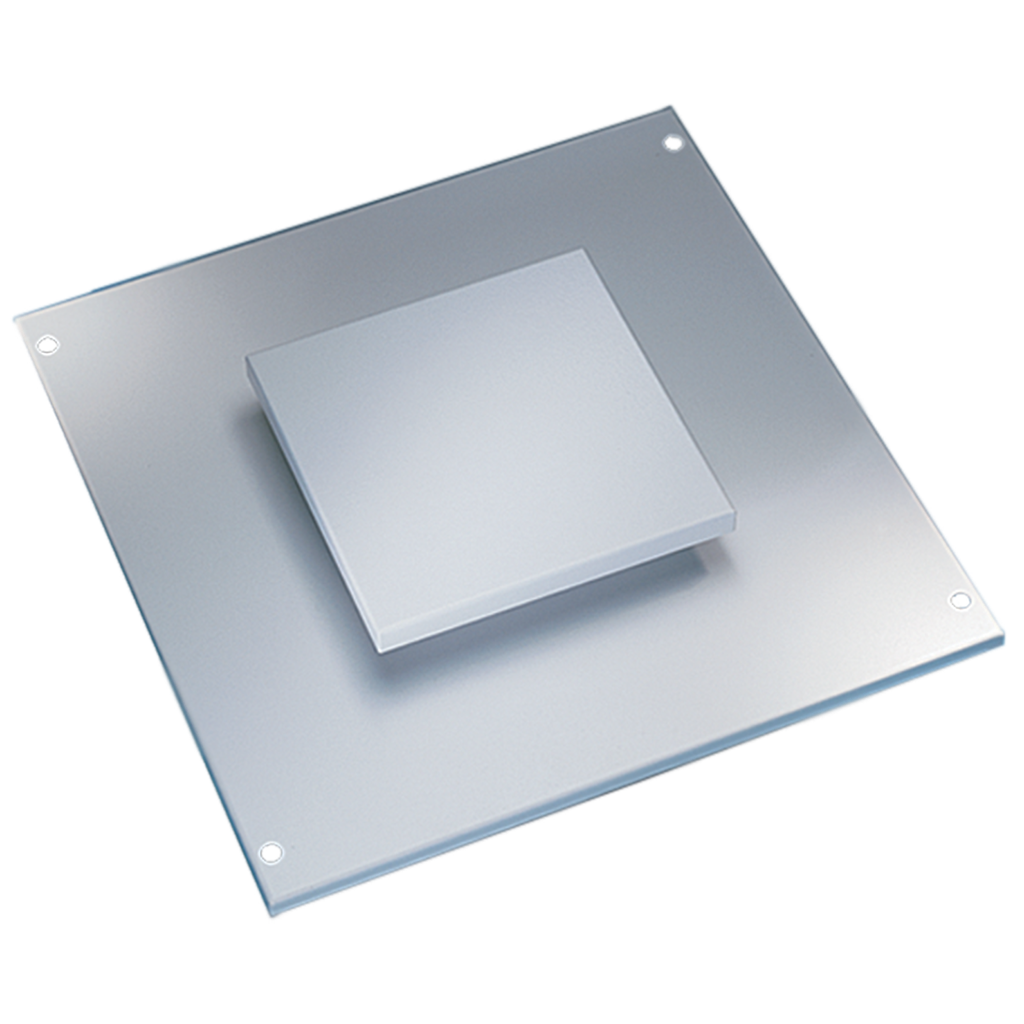

Product image for NVENT HOF P2TP186 PAGODA TOP 1800x6
Email

NVENT HOF P2TP186 PAGODA TOP 1800x6

Manufacturer: nVent Hoffman | Catalog # P2TP186 | North Coast Part # 2414271
$892.81/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Pagoda tops can be used on the top of a modular enclosure for active cooling. The design features a drip-proof raised pagoda vent with a 115-volt integral axial exhaust fan, and includes gasket seals to maintain a NEMA 12 enclosure rating.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Steel
Type
Tops and Top Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510326937
Color
Gray
Finish
Powder Coated
GTiN
00783510326937
Product UPC
78351032693
Weight
25.28 lb

Dimensions

Height
6 Inch
Length
33 Inch
Thickness
1.9 mm
Width
25.75 in
Features
  • Maintains NEMA 12 Type rating on enclosure when installed
  • Drip-protected, raised pagoda vent
  • Integral axial exhaust fan for active cooling
  • Pagoda Tops 1200 mm and greater in width have one drip protected, raised pagoda vent opening positioned over one side that can be oriented for right or left ventilation
  • Seamless polyurethane gasket between top and frame (UL component recognized) provides a water-tight, dust-tight seal against moisture and contaminants
  • Includes four M12 hex bolts for installation
  • Lifting eyes (not included) can be used instead of bolts
