NVENT HOF P2KOD888 PKG 800x800x800

Manufacturer: nVent Hoffman | Catalog # P2KOD888 | North Coast Part # 2414397
$2,774.41/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

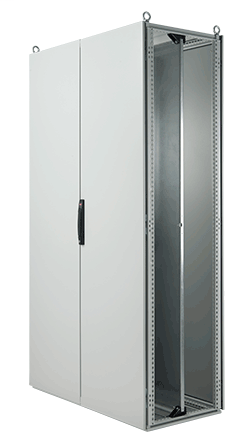

PROLINE G2 Industrial Package, Overlapping Double Door, Type 12, 800x800x800mm, Lt Gray, Steel

Technical Information

Number of Doors
2

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510323752
GTiN
00783510323752
Product UPC
78351032375
Features
  • 12 gauge, roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
  • EMC protected options
  • Wide range of standard size options
  • Galvanized Duro-Stand Gland Plate
  • Standard version (left hinge and key lock) or E version (right hinged and double bit insert key lock)
  • Smooth Glide Latching system for a solid seal with a low closure force
  • EZ-Load Glide Blocks which accommodate five loading methods
  • Large galvanized mounting subpanel
Description
  • PROLINE G2 Industrial Packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), handle and key lock, a solid top, solid rear cover, a full mounting subpanel, a gland plate, and four lifting eyes. Side covers ordered separately to accommodate joining/baying applications.
Industry Standards
  • UL 508A Listed; Type 12; File Number E61997
  • IEC 60529, IP55
  • VDE IP55
  • CSA File Number 42186: Type 12
  • NEMA/EEMAC Type 12
Finish
  • Frame, Doors, Tops, Covers - polyester powder paint; RAL 7035 textured light gray standard; custom colors available; EMC options
  • Gland Plate - Galvanized steel; painted option
  • Mounting Subpanel - Galvanized steel; painted option
Specifications
  • (Refer to separate specification sheets for more complete details of individual components)
  • Frame - 12 gauge (2.5mm) roll formed steel frame, fully welded corners, hybrid profile; Accommodates the 25-mm DIN standard and include rectangular and round holes
  • Gasket - Seamless polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant; Sealed mounting for all external accessories
  • Doors - Door bar system on all doors (including window doors); Single/primary door includes 3-point roller latch system with timed latch engagement for enclosures ?1000 mm in height; 2-door enclosures include overlapping double doors to provide full-width open front; secondary door latches with two levers; Reversible hinging on single doors (default left hinge); Reversible hinging on overlapping double doors (default right door primary door); Two grounding studs; Low-Profile Swing Handle with key lock on standard versions; double bit lock on E versions. Other options available.
  • Mounting Subpanel (Mounting Plate) - Includes EZ-Load Mounting Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame); Subpanel is securely fastened to the top and bottom of the frame. Enclosures <1200 mm use 4 sets of EZ-Load Glide Blocks. Enclosures ?1200 mm use 8 sets of glide blocks for a well secured subpanel.; Depth adjustable, accommodates back-to-back subpanels; Galvanized full subpanel default; painted subpanel available
  • EMC Industrial Packages (Additional Specifications) - Plated finish on components provides conductive surfaces for gasket contact areas and conduit entries; Metalized, non-woven fabric EMI/RFI material covering UL94HP rated urethane foam gasket; Plating exposed in interior and paint over plated exterior; All plated accessories electrically bonded to frame
Load Ratings
  • Example: 2000x600x800 mm (load ratings vary by frame size)
  • Gland Plate - 200lb/90kg (1.5 safety factor)
  • Door - 250lb/113kg (1.5 safety factor)
  • Mounting Subpanel - 2000lb/907kg (2.5 safety factor)
  • Frame - 3000lb/1360kg (1.75 safety factor)
