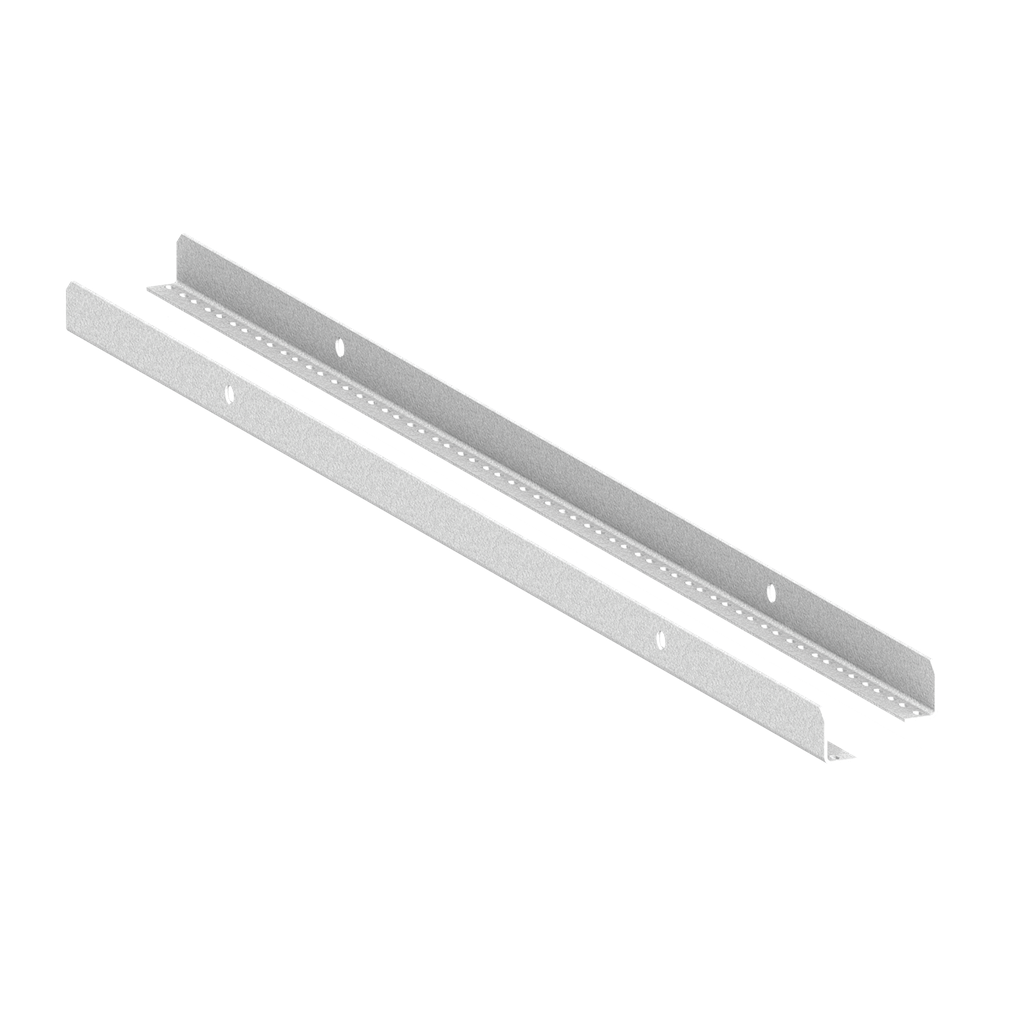

NVENT HOF P2ALB26 LIFTING BARS 2600

Manufacturer: nVent Hoffman | Catalog # P2ALB26 | North Coast Part # 2414398
$1,849.10/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Lifting Bars provide the best load distribution while lifting joined enclosures, each containing up to 3000 lbs. per bay of equipment and cabling. Bars mount to top of enclosure frame corner blocks and do not require removal of top cover for installation. Kit consists of two bars, bolts and washers.

Technical Information

Applications
Controls and Drives; Power Distribution
Material
Steel
Type
Frame Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510340629
Finish
Zinc
GTiN
00783510340629
Product UPC
78351034062
Weight
104 lb

Dimensions

Height
6-1/4 Inch
Length
104-1/2 Inch
Thickness
0.25 in
Width
12.00 in
Features
  • Clear, Zinc-Coated structural steel bars
  • Furnished in pairs, with the inclusion of bolts and washers for installation
  • Does not require removal of enclosure top cover, and secures into the frame's corner blocks
  • Can be used to lift joined enclosures up to 6 bayed enclosures (3000-mm total width); Load rating: 3000 lbs. (1360 kg) per enclosure
  • Lifting Bars are designed for overhead lifting in conjunction with shackles and a spreader bar. Use of shackles instead of hooks is preferred. The angle between the top of the enclosure and the cable or chain must be at least 45°. Use only slings and spreader bars that are designed for the specific application and are in compliance with regulations established by OSHA, ASME, ISA, ASTM and other governing agencies.
