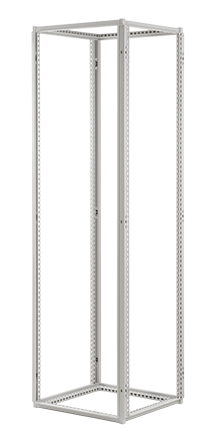

Product image for NVENT HOF P2F2286HF FRAME 2200x800x
Image thumbnail 0
Image thumbnail 1
Email

NVENT HOF P2F2286HF FRAME 2200x800x

Manufacturer: nVent Hoffman | Catalog # P2F2286HF | North Coast Part # 2414448
$2,716.52/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
PROLINE G2 Frame, EMC, 2200x800x600mm, Conductive, Steel

Technical Information

Applications
For Withstanding Heavier Load Requirements and to Maintain a Solid Square Structure, a Solid Foundation for the Electrical Enclosure
Gauge
12 (2.5) mm
Material
Steel
Number of Doors
1,2
Size
800 mm W x 2200 mm H x 600 mm D
Type
Conductive

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine G2

General Product Info

12-Digit UPC
783510317959
Color
Light Gray
Finish
Powder Coated/Painted
GTiN
00783510317959
Product UPC
78351031795
Used With
EMC Enclosure
Features
  • Superior performance under load: 12 gauge (2.5 mm) roll-formed steel frame with welded corners, hybrid frame profile
  • Easy to assemble and use: 25 mm hole pattern on horizontal and vertical frame members, wide door opening, removable rear center post for frames greater than 1200 mm wide
  • Wide range of standard options: 114 frame sizes; EMC protected and disconnect options, custom sizes on request
Description
  • The PRO LINE G2 frame is the foundational design element that protects the components inside this modular enclosure. The frame was designed to withstand heavier load requirements and to maintain a solid square structure - a solid foundation for the electrical enclosure.
Accessories
  • P2ACU22
Finish
  • Polyester powder paint; RAL 7035 textured light gray standard
  • Custom colors available
Specifications
  • Welded corners with steel corner blocks
  • Simple means for joining frames to create multiple-bay enclosures
  • Uniform internal frame width to simplify component installation; universal frame member used for both horizontal and vertical frame sections to simplify component installation
  • Accommodates 25mm DIN standard; rectangular frame holes designed for BV-M6 fastener or metric cage nut fasteners; round frame holes accommodate M5 self-tapping screws and allow numerous grounding locations using M5 thread-forming screws
  • Frames greater than 1200mm wide have a removable rear center post and cross-members in the center top and center bottom; no front center post facilitates component installation
  • Integral frame channels support the full weight of the subpanel
  • Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
  • Hybrid frame profile
  • 12 gauge, roll-formed steel frame sections
Load Ratings
  • 3000lb/1361kg, safety factor 1.75; frame size: 2000x600x800 mm (load ratings vary by frame size)
  • IEC 602208 uses a 1.25 safety factor, which would result in higher load ratings
