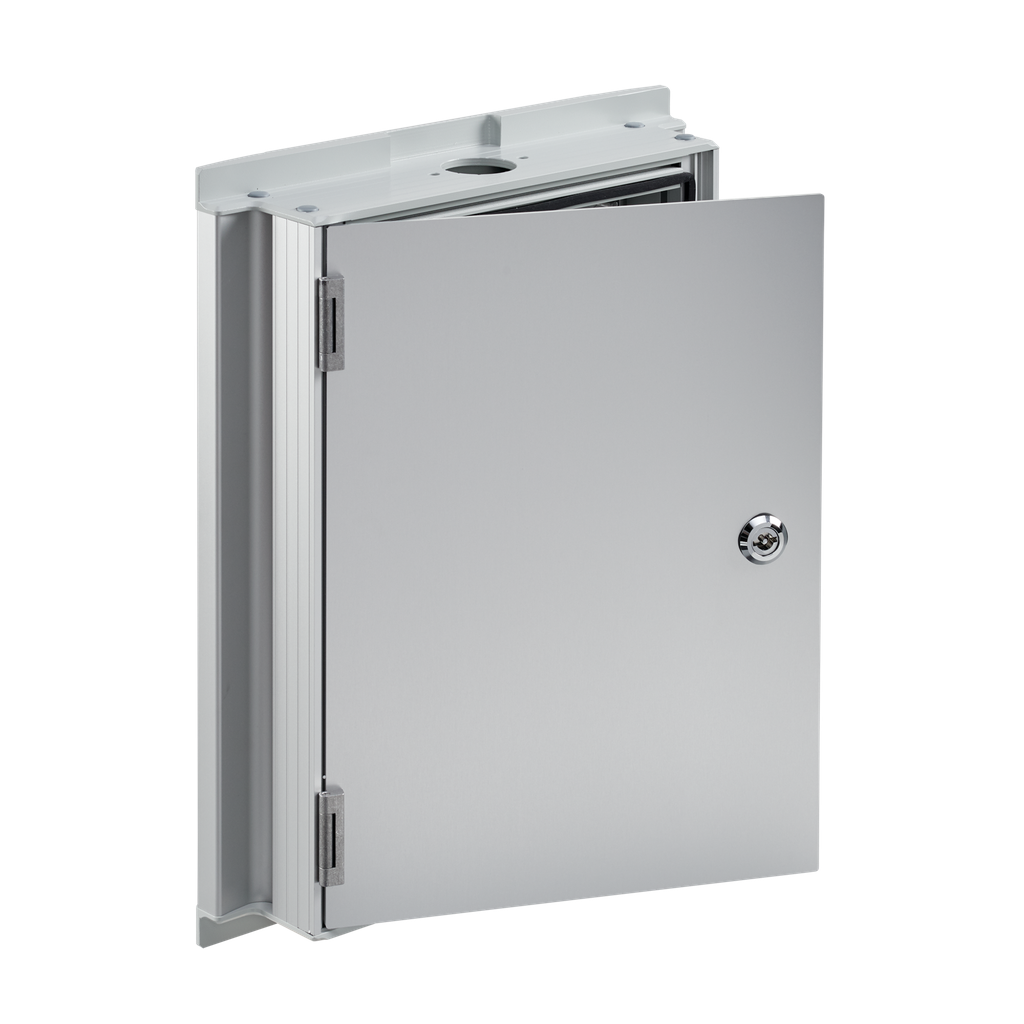

Product image for Hoffman SY222266A SYSPEND Aluminum HMI Enclosure, Type 12, 225x 225x 66, Light Gray, Aluminum
Email

Hoffman SY222266A SYSPEND Aluminum HMI Enclosure, Type 12, 225x 225x 66, Light Gray, Aluminum

Manufacturer: nVent Hoffman | Catalog # SY222266A | North Coast Part # 2414702
$1,601.25/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Syspend Aluminum HMI enclosure is designed to accommodate modern touch-screen HMI devices and can be pendant- or pedestal-mounted. Extruded aluminum top and sides provide enhanced usability with internal mounting channels. The single-walled aluminum reduces the overall weight of the enclosure, eliminating strain during installation and use. The integrated side handles provide enhanced ergonomics. The Syspend Aluminum HMI enclosure's aesthetics are clean and modern and the life of the HMI system is extended due to increased heat dissipation.

Technical Information

Applications
Controls and Drives
Material
Aluminum
Type
HMI Enclosure Systems

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510340889
Finish
Anodized
GTiN
00783510340889
Product UPC
78351034088
Weight
11.5 lb

Dimensions

Depth
3.15 Inch
Height
13.23 Inch
Length
16.1 Inch
Thickness
2.5 mm
Width
13.78 in
Features
  • Extruded, single-walled aluminum construction for enhanced ergonomics and heat dissipation
  • Body is available hinged or solid with hinged back-plate for a variety of configurations
  • Integrated side handles for clean appearance and ease of operation
  • Integrated mounting extrusions for installing components or din rail directly inside the enclosure using brackets or spring nuts
  • Front plate installed into enclosure
  • Pre-cut mounting holes compatible with support arm systems; pedestal mounting when enclosure is inverted
  • Oil-resistant gasket attached with oil-resistant adhesive
