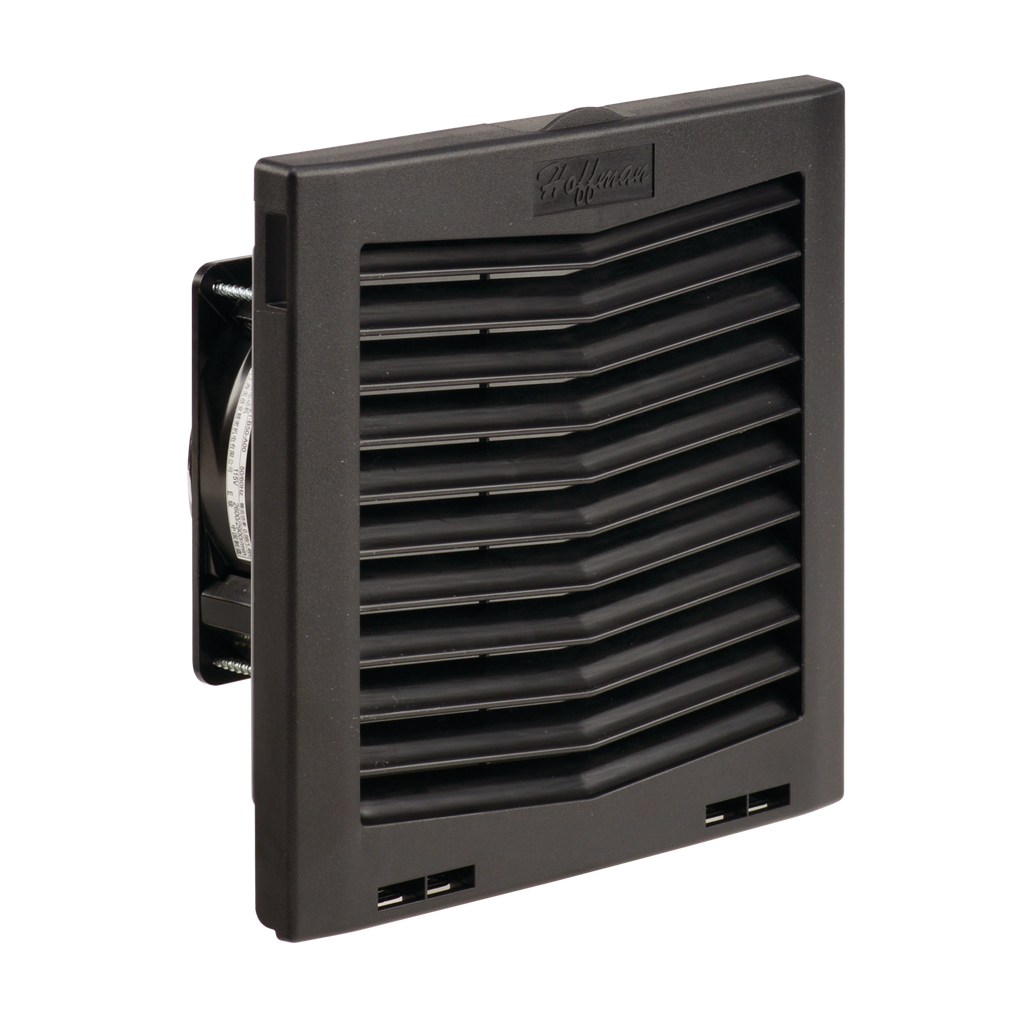

Product image for NVENT HOF HF0948513 IP55 9 IN FF 48
Email

NVENT HOF HF0948513 IP55 9 IN FF 48

Manufacturer: nVent Hoffman | Catalog # HF0948513 | North Coast Part # 2414803
$474.79/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF09 Side-Mount Filter Fan, HF0948513 item is rated 48V 33CFM colored Black.

Technical Information

Amperage
0.17 Amp
Applications
Controls and Drives; Power Distribution
Color Coding
RAL 9011
Material
Plastic
Size
8.19 x 8.21 x 4.15 in
Type
Open-Loop Cooling
Voltage
48

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510348427
Color
Black
Finish
Black
GTiN
00783510348427
Housing Material
Non-metallic
Product UPC
78351034842
Weight
3.18 lb

Dimensions

Depth
4.15 Inch
Height
8.19 Inch
Length
10-1/4 Inch
Width
10.25 in
Features
  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C
