Product image for NVENT HOF HF1048514 IP55 10 IN FILT
Email

NVENT HOF HF1048514 IP55 10 IN FILT

Manufacturer: nVent Hoffman | Catalog # HF1048514 | North Coast Part # 2414823
$884.57/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

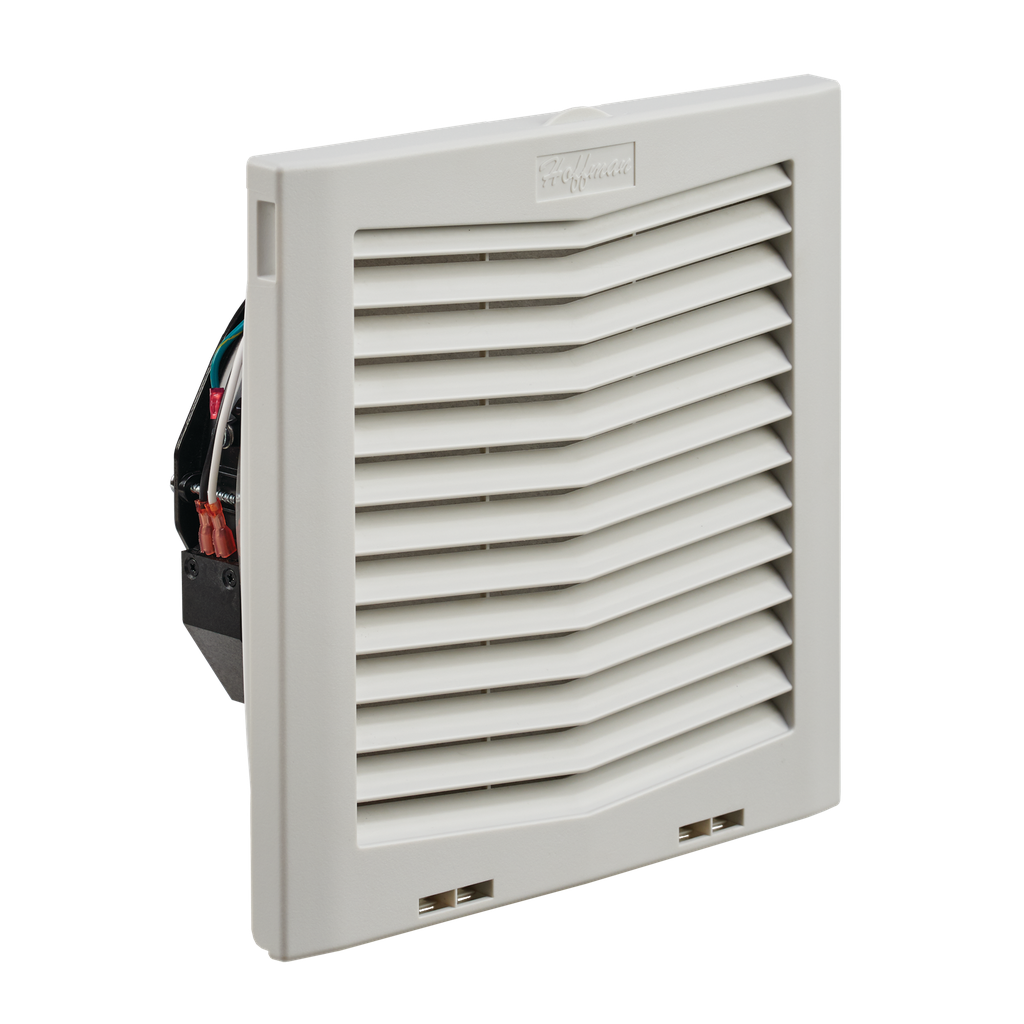

HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF10 Side-Mount Filter Fan, HF1048514 item is rated 48V 103CFM colored Lt Gray.

Technical Information

Amperage
0.32 Amp
Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Material
Plastic
Min Temperature
14 degrees F
Size
10.13 x 10.14 x 5.18 in
Type
Open-Loop Cooling
Voltage
48

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510344887
Color
Gray
Finish
Matte
GTiN
00783510344887
Housing Material
Non-metallic
Product UPC
78351034488
Weight
4.24 lb

Dimensions

Depth
5.18 Inch
Height
10.13 Inch
Length
12 Inch
Width
10.14 in
Features
  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C
