Caddy TSR1220N Telescoping Strut Replacement, No Nut

Manufacturer: Cadweld | Catalog # TSR1220N | North Coast Part # 2414893
$2,610.98/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Telescoping Strut Replacement, No Nut

Technical Information

Applications
For Electrical, Data Communication, HVAC
Material
Steel
Size
1/2 in
Type
Replacement, No Nut

Packaging

Standard Packaging Qty
25 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856916451
Finish
Pre-Galvanized
GTiN
00782856916451
Product UPC
78285691645
Weight
0.65 kg

Dimensions

Hole Size
3/16 in
Length
21-1/2 Inch
Thickness
0.04 in
Width
1 5/8 in
Features
  • Can be attached directly to a wall for wall-mounted applications?
  • Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
  • Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
  • Integrated ruler displays space between hanger rods in inches and centimeters

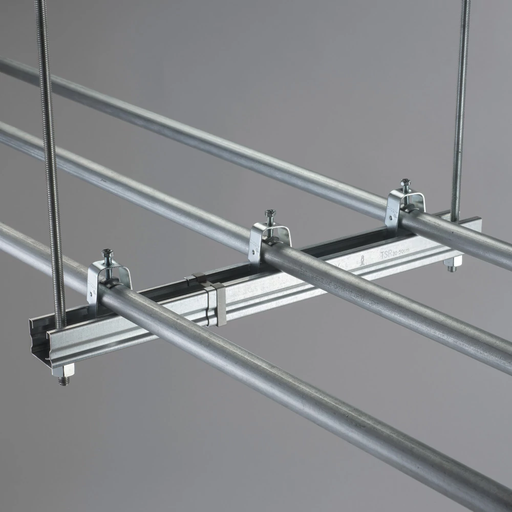

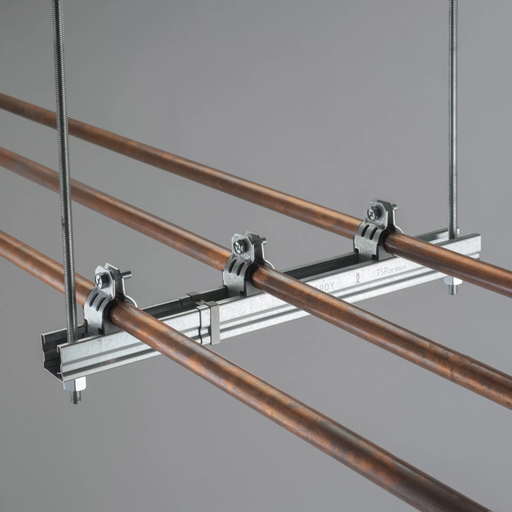

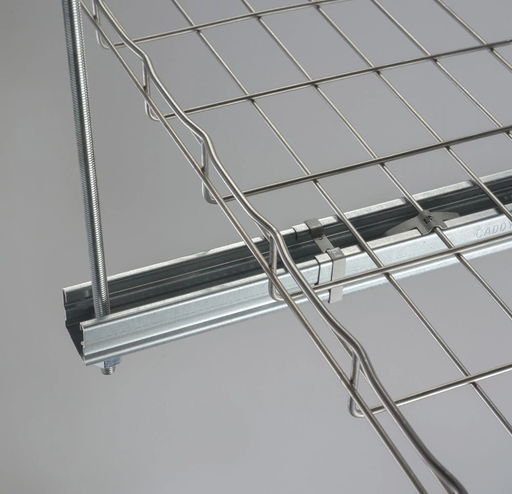

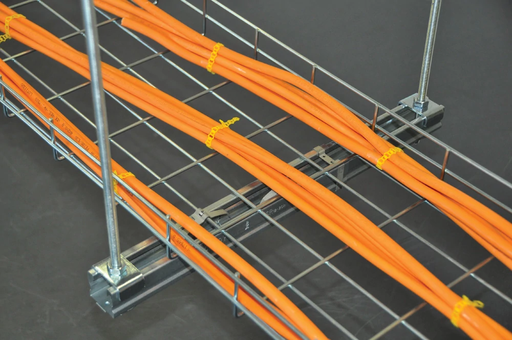

  • Supports up to seven 2\" (50 DN) conduits, six 2\" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18\" (450 mm) cable tray
  • Conduit can be supported on the top and bottom, eliminating the need for double sided strut
  • Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation
